Toyota YARIS 燃油箱和燃油管 — Figure 7701

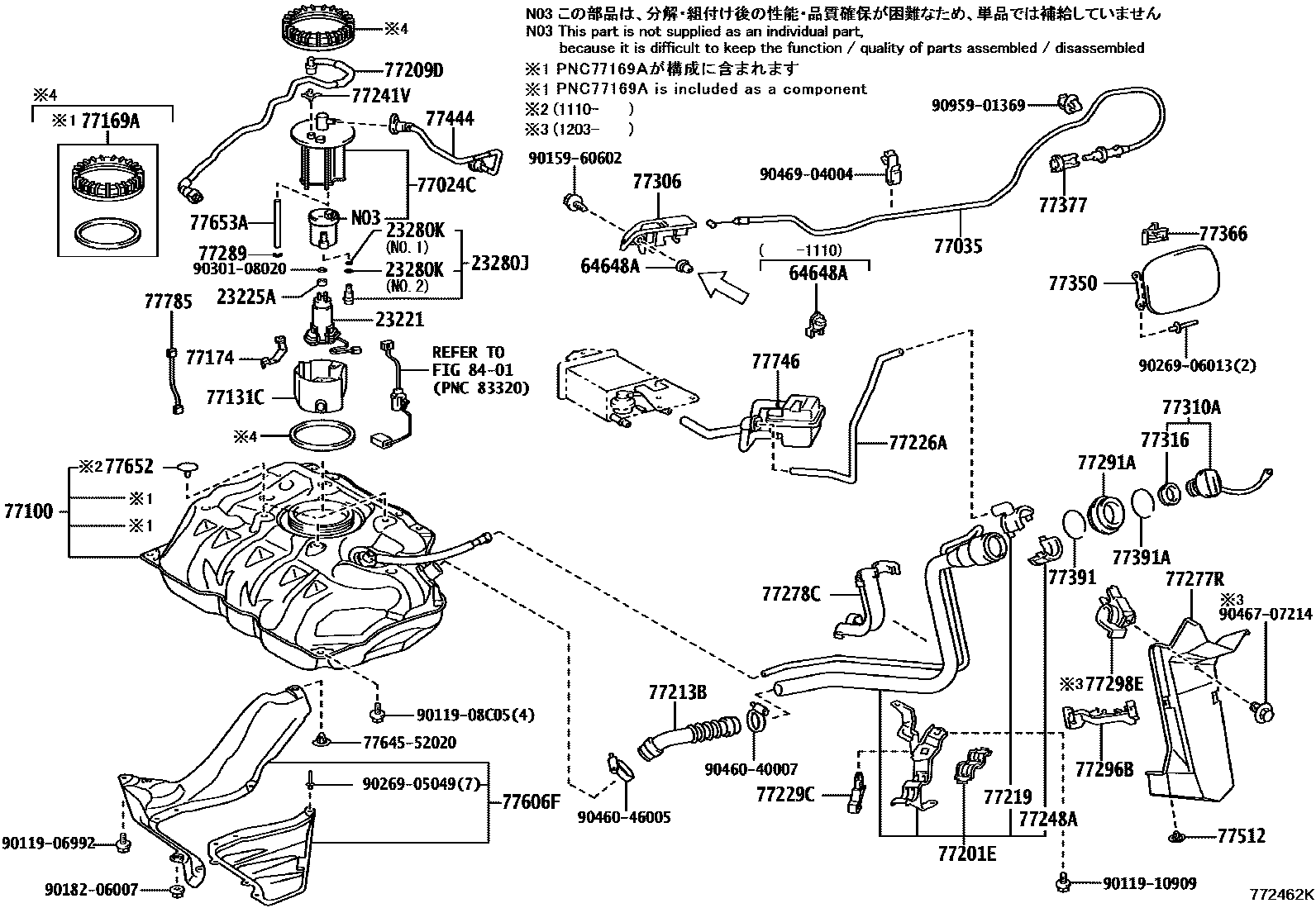

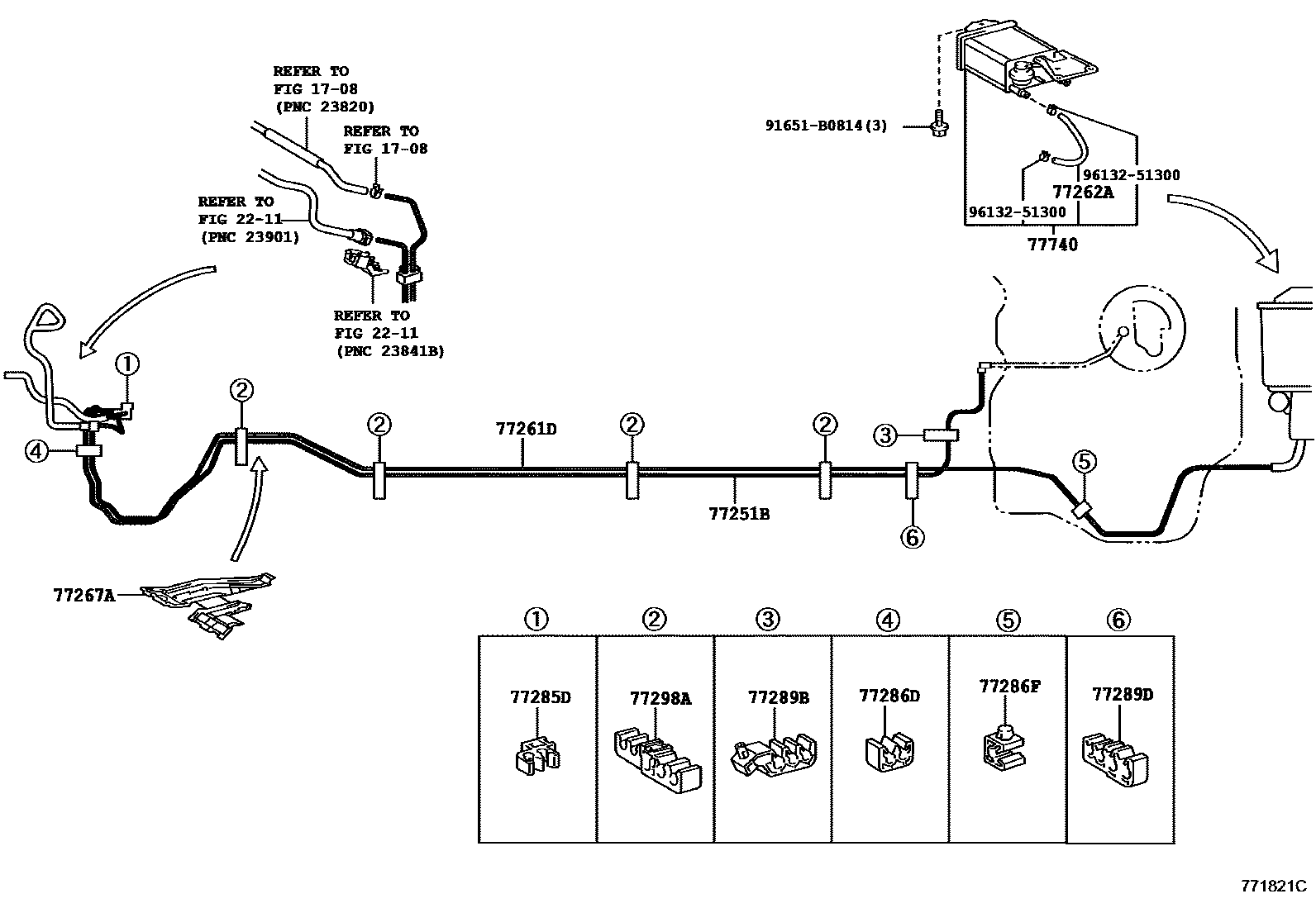

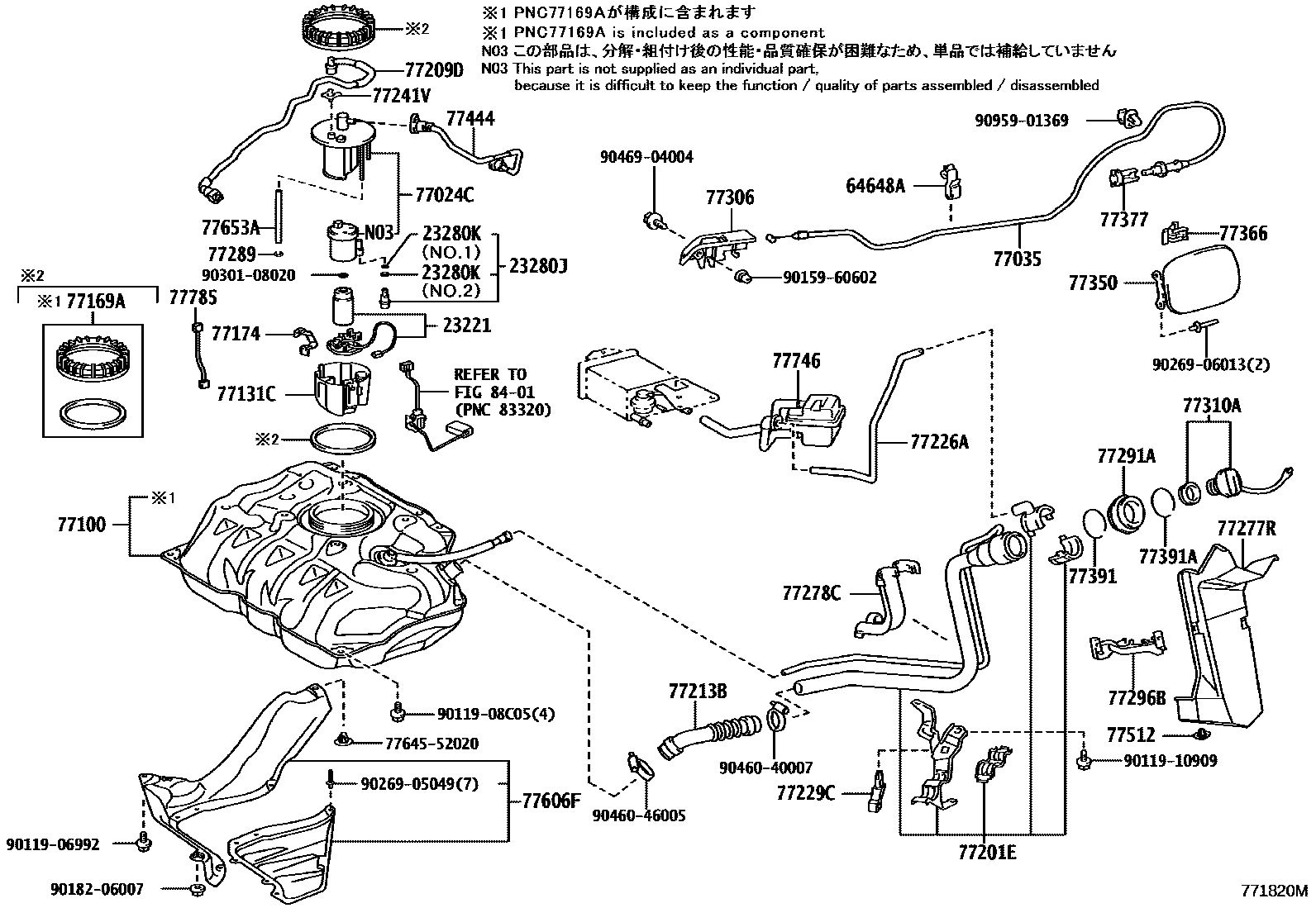

Toyota YARIS EPC diagram 7701, 燃油箱和燃油管, with 3 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23221 | fuel pump | 23220-21131 · 23220-21132 · 23220-21210 · 23220-21211 |
| 23225A | fuel pump septum | 23225-21020 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 · 23280-21020 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-15024 |
| 64648A | Trunk door lock opener seal | 64648-12020 · 64648-32020 |
| 77024C | SOUS-ENS PLAQUE, ASPI CARBURANT AVEC FILTRE A CARB | 77024-52130 · 77024-52180 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-52250 |
| 77100 | fuel tank assembly | 77001-52210 · 77001-52211 · 77001-52212 |
| 77131C | No. 1 auxiliary fuel tank | 77131-52071 · 77131-52110 |
| 77169A | Fuel suction pipe fixed gasket | 77169-52040 |
| 77174 | No. 1 oil suction pipe bracket | 77174-52050 · 77174-52070 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-52230 · 77201-52231 · 77201-52232 |
| 77209D | Fuel tank main pipe sub-assembly | 77209-52100 · 77209-52101 |
| 77213B | Fuel tank to filler pipe hose | 77213-52140 |
| 77219 | Fuel tank filler pipe cap | 77219-21010 |
| 77226A | No. 6 fuel tank breather pipe | 77226-52060 · 77226-52061 |
| 77229C | Snorkel clamp | 77229-52050 |
| 77241V | Pipe joint clip | 77241-33011 · 77241-60320 |
| 77248A | Fuel tank filler pipe cap holder | 77248-52060 |
| 77251B | main fuel pipe | 77251-52260 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-52310 |
| 77262A | No. 1 fuel hose (for the intermediate pipe from the fuel tank to the canister) | 95333-08030 |
| 77267A | No. 2 fuel pipe protection device | 77267-52050 |
| 77277R | Fuel tank filler pipe protection device | 77277-52030 · 77277-52031 · 77277-52080 · 77277-52100 |
| 77278C | No. 2 fuel tank filler pipe protection device | 77278-52030 |
| 77285D | No. 1 fuel pipe clamp | 77285-52060 |
| 77286D | No. 2 fuel pipe clamp | 77286-52100 |
| 77286F | No. 2 fuel pipe clamp | 77286-52070 |
| 77289 | Fuel tank pipe holder | 77289-52110 |
| 77289B | No. 3 fuel pipe clamp | 77289-52060 |
| 77289D | No. 5 fuel pipe clamp | 77299-52070 |
| 77291A | Fuel tank filler pipe cover | 77291-52120 |
| 77296B | No. 1 fuel line protector bracket | 77296-52020 |
| 77298A | No. 4 fuel pipe clamp | 77298-52070 |
| 77298E | No. 3 fuel pipe protector bracket | 77297-52060 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-33030 |
| 77310A | Fuel tank cap assembly | 77300-52040 · 77300-74010 |
| 77316 | fuel tank cap gasket | 77316-52040 |
| 77350 | Fuel filler cap assembly | 77350-52150 |
| 77366 | Fuel filler cap hinge spring | 77360-30070 |
| 77377 | Fuel filler cap lock retainer | 77377-12050 |
| 77391 | fuel inlet ring | 77391-12020 |
| 77391A | fuel inlet ring | 77391-60030 |
| 77444 | fuel tank vent hose | 77404-52050 |
| 77512 | fuel tank rear bracket | 77512-35140 |
| 77606F | Fuel tank cover vent housing sub-assembly | 77606-52070 · 77606-52071 |
| 77652 | No. 1 fuel tank liner | 77652-52070 |
| 77653A | No. 3 fuel tank liner | 77652-52040 |
| 77740 | Carbon canister assembly | 77740-52090 |
| 77746 | No.2 carbon canister filter | 77706-52020 |
| 77785 | fuel pump wiring harness | 77785-52060 · 77785-52110 |
