Toyota YARIS 挡泥板和扰流板 — Figure 7601

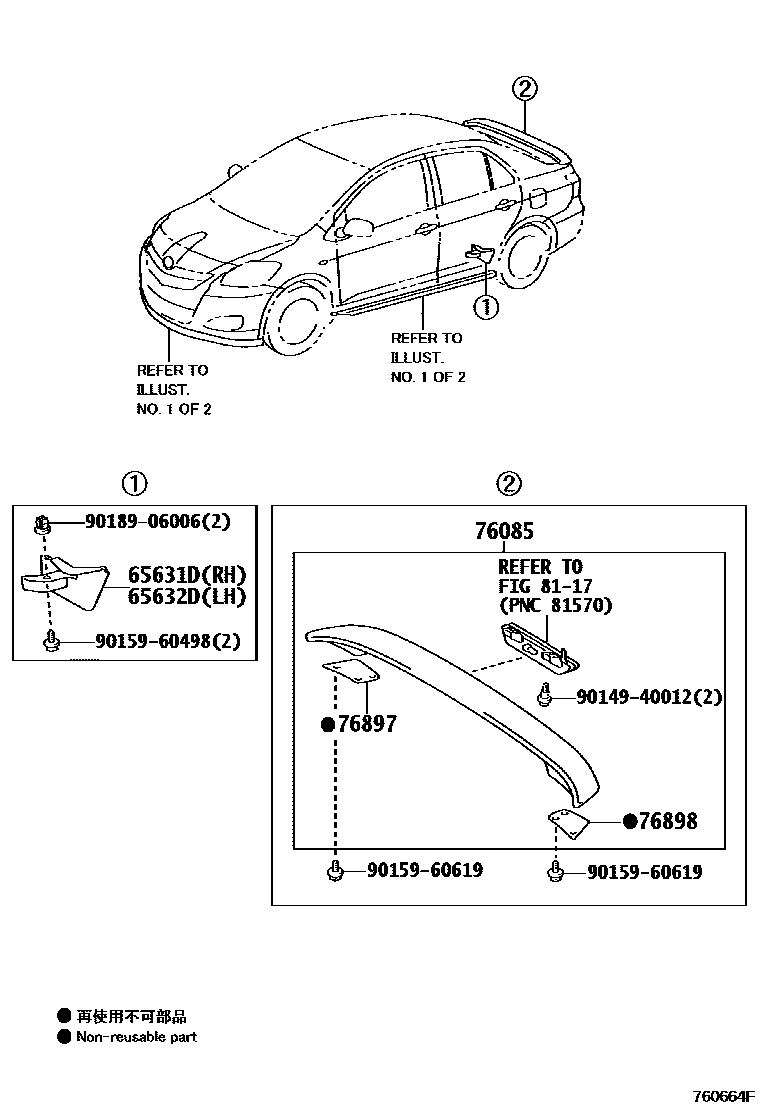

Toyota YARIS EPC diagram 7601, 挡泥板和扰流板, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-52050 · 65631-52110 |
| 65632D | Left rear wheel house front panel | 65632-52050 · 65632-52110 |
| 75392D | External protective strip fixings | 75392-35200 |
| 75851E | Right body door sill panel protection strip | 75851-52060 · 75851-52061 |
| 75852B | Left body door sill panel protection strip | 75852-52060 · 75852-52061 |
| 76851 | front spoiler cover | 76851-52120 |
| 76897 | Right rear spoiler protection strip | 76897-52040 |
| 76898 | Left rear spoiler protection strip | 76898-52040 |
| 76924C | No. 2 side fender fixings | 76924-52040 |
