Toyota YARIS 侧防护条 — Figure 7503

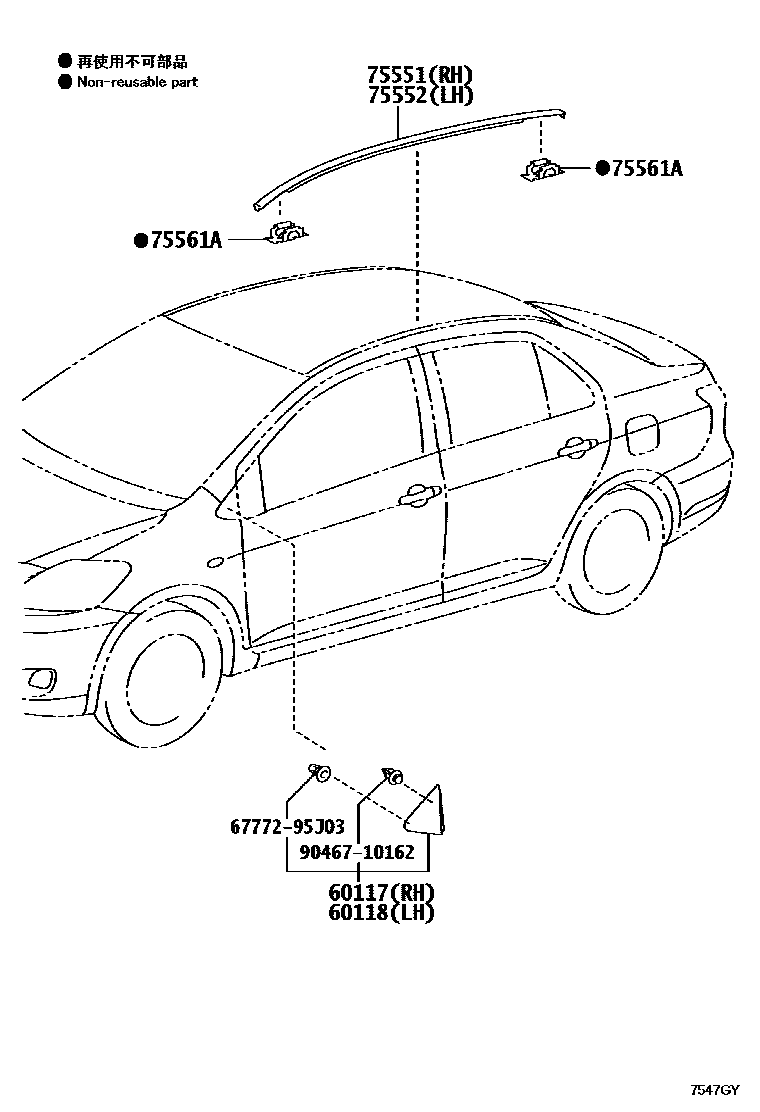

Toyota YARIS EPC diagram 7503, 侧防护条, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 60117 | Right front pillar upper cover sub-assembly | 60117-52040 |
| 60118 | Left front pillar upper cover sub-assembly | 60118-52040 |
| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-52160 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-52140 |
| 75561A | Roof drain channel side decorative strip clip | 75561-52040 |
