Toyota YARIS 扶手和遮阳板 — Figure 7401
Toyota YARIS EPC diagram 7401, 扶手和遮阳板, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

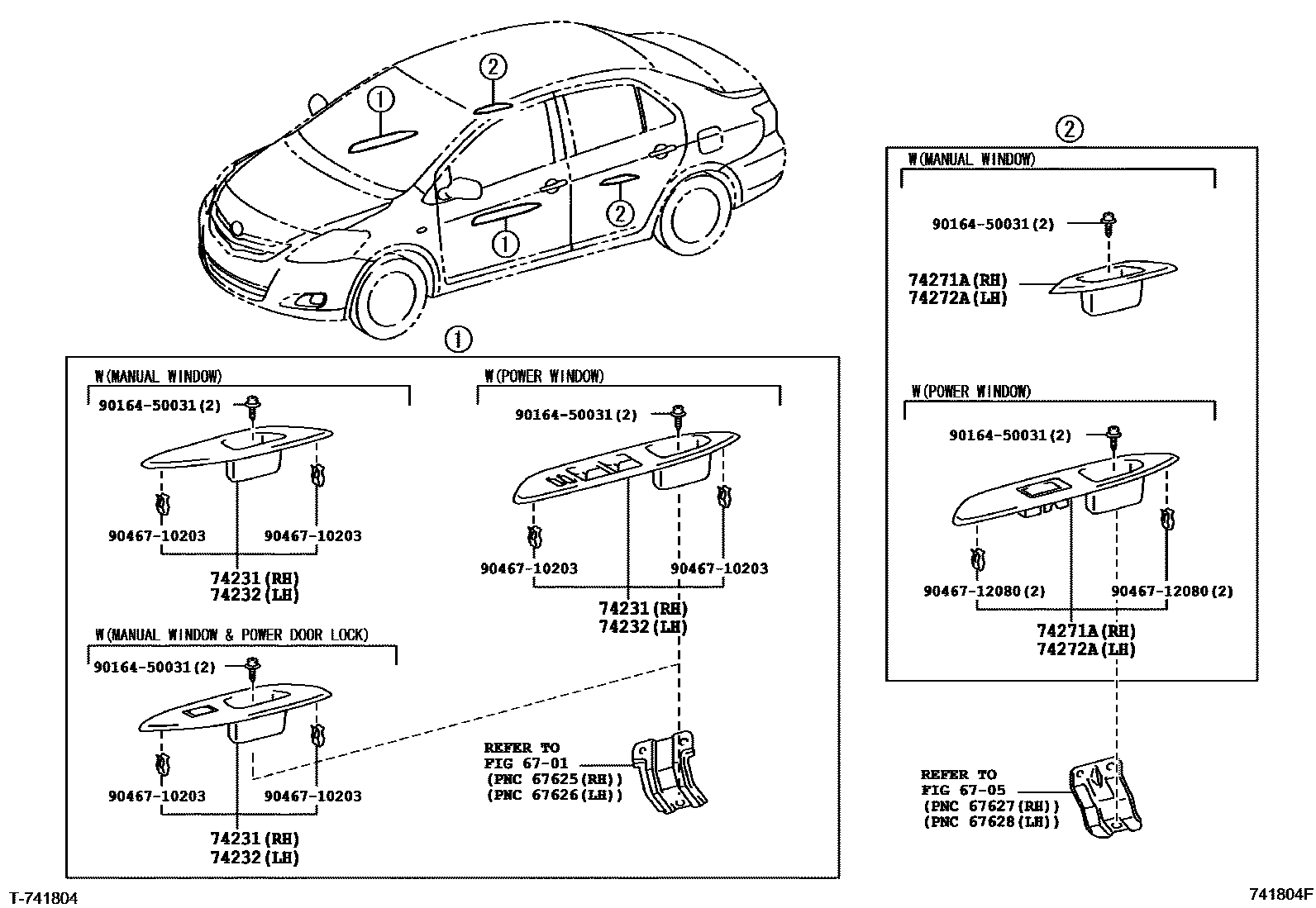

| 74231 | Right front armrest upper panel | 74231-52510 · 74231-52530 · 74231-52550 |
| 74232 | Left front armrest upper panel | 74232-52410 · 74232-52420 · 74232-52440 |
| 74271A | Right rear door armrest upper panel | 74271-52130 · 74271-52150 · 74271-52160 |
| 74272A | Left rear door armrest upper panel | 74272-52120 · 74272-52140 · 74272-52150 |

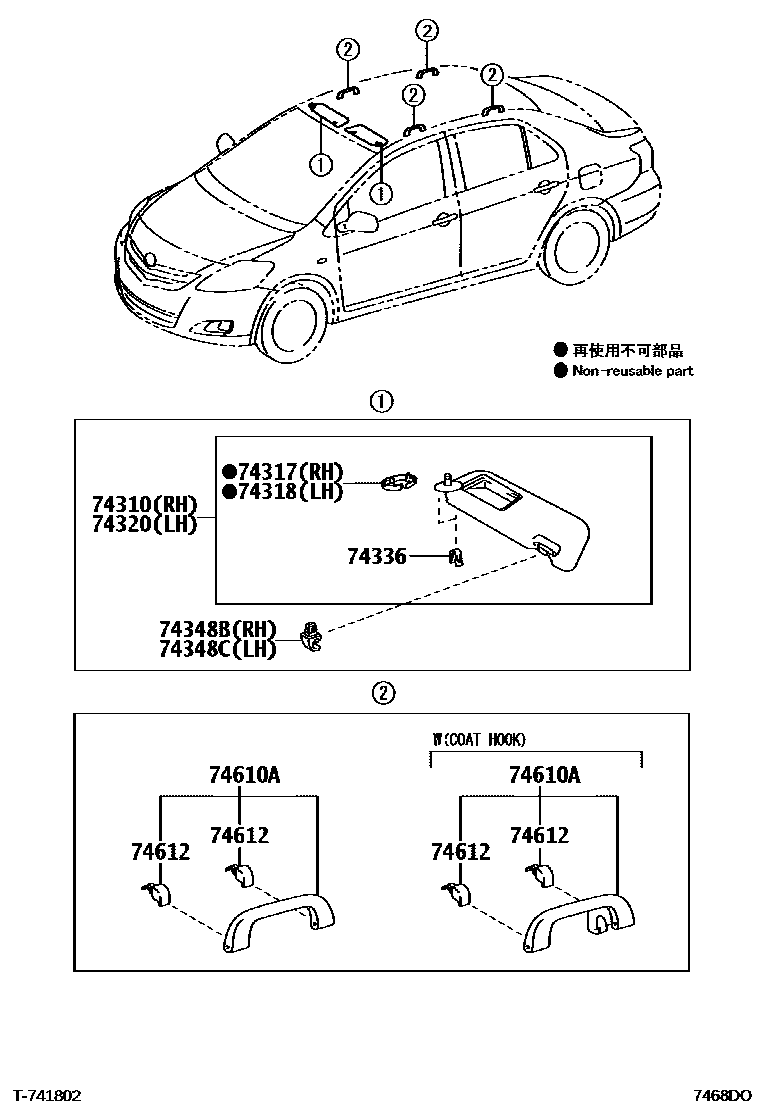

| 74310 | Right sun visor assembly | 74310-52641 |
| 74320 | Left sun visor assembly | 74320-52711 |
| 74336 | Sun visor arm fixing clip | 74336-52010 |
