Toyota YARIS 后排座椅和座椅滑轨 — Figure 7102

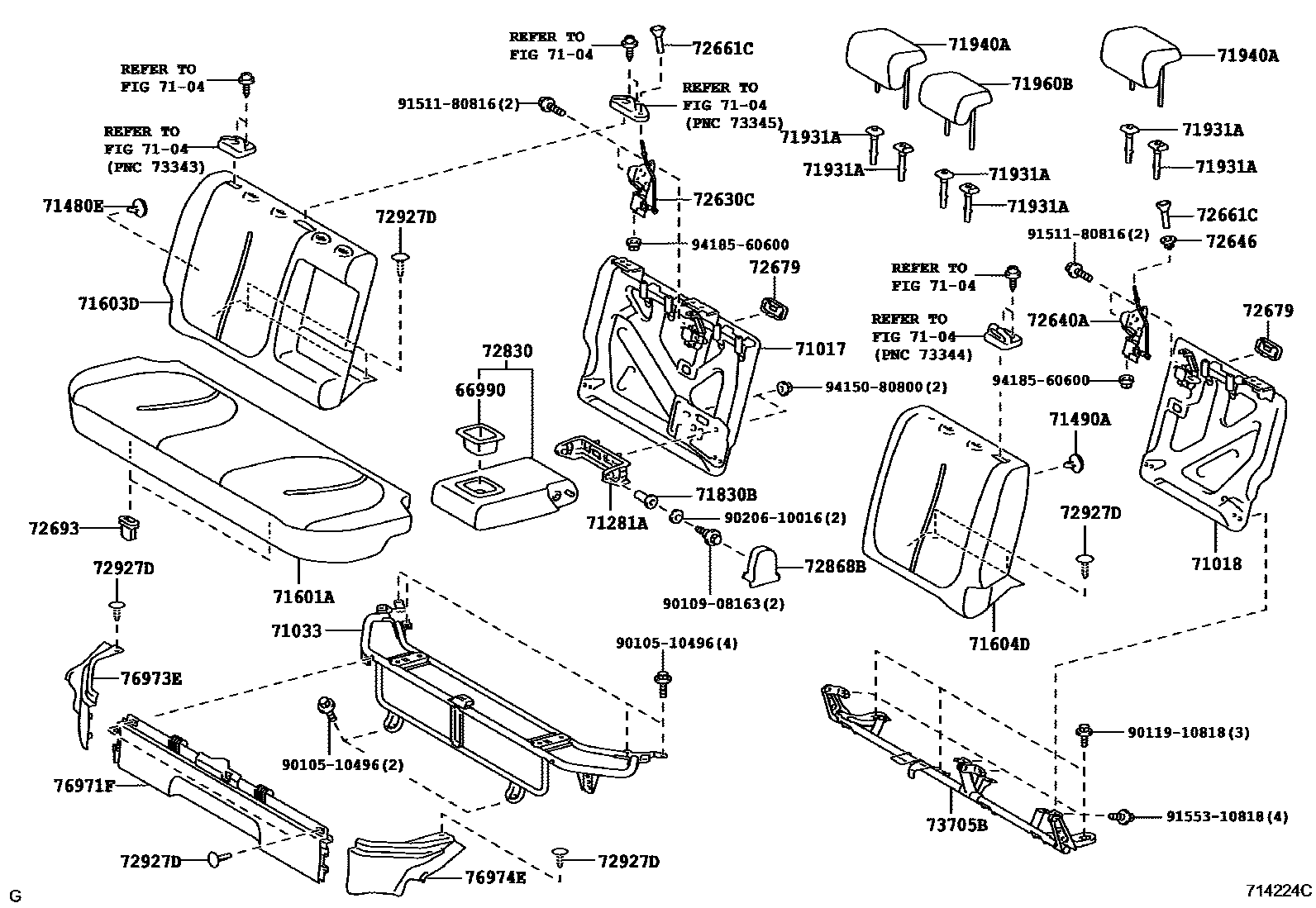

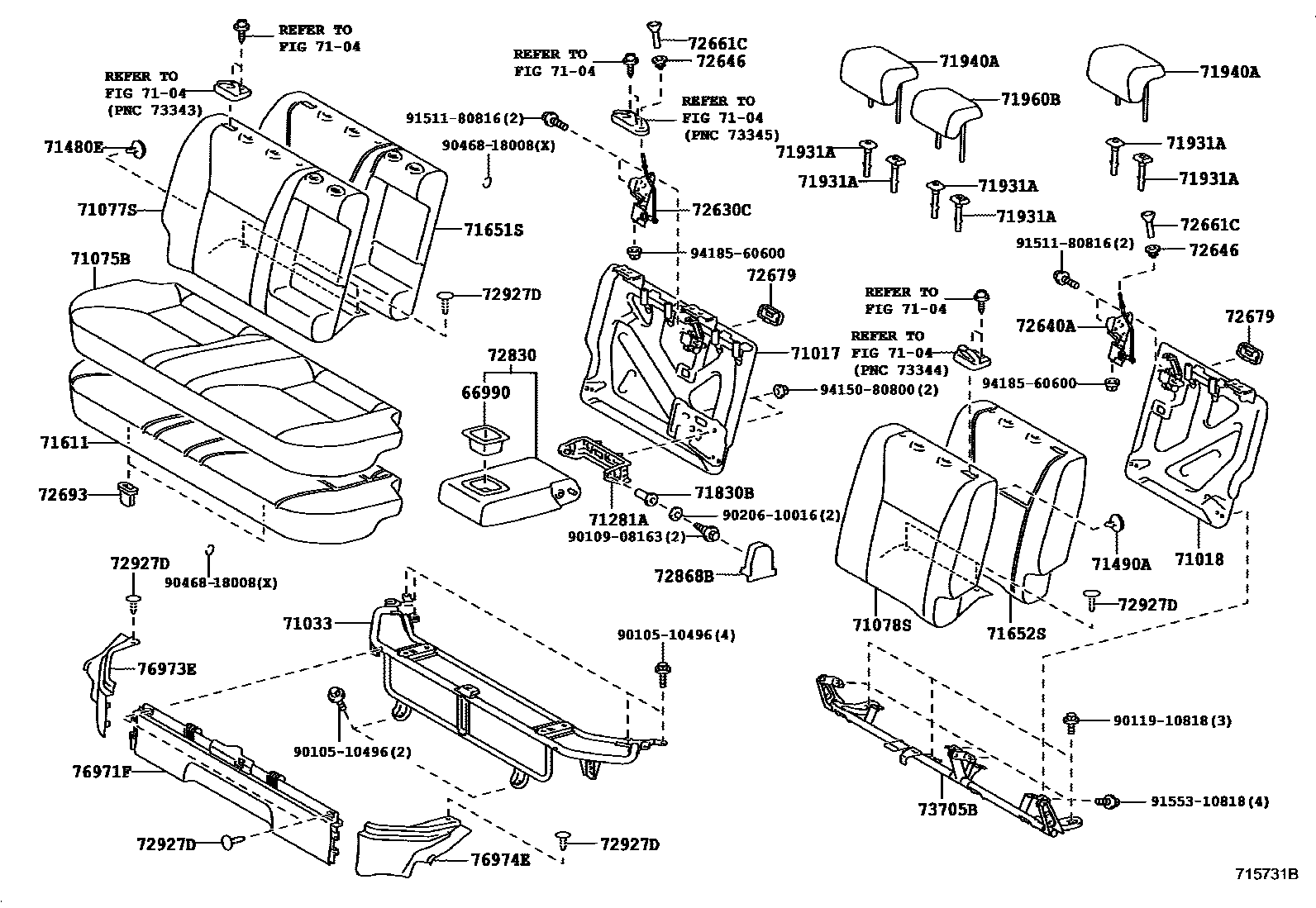

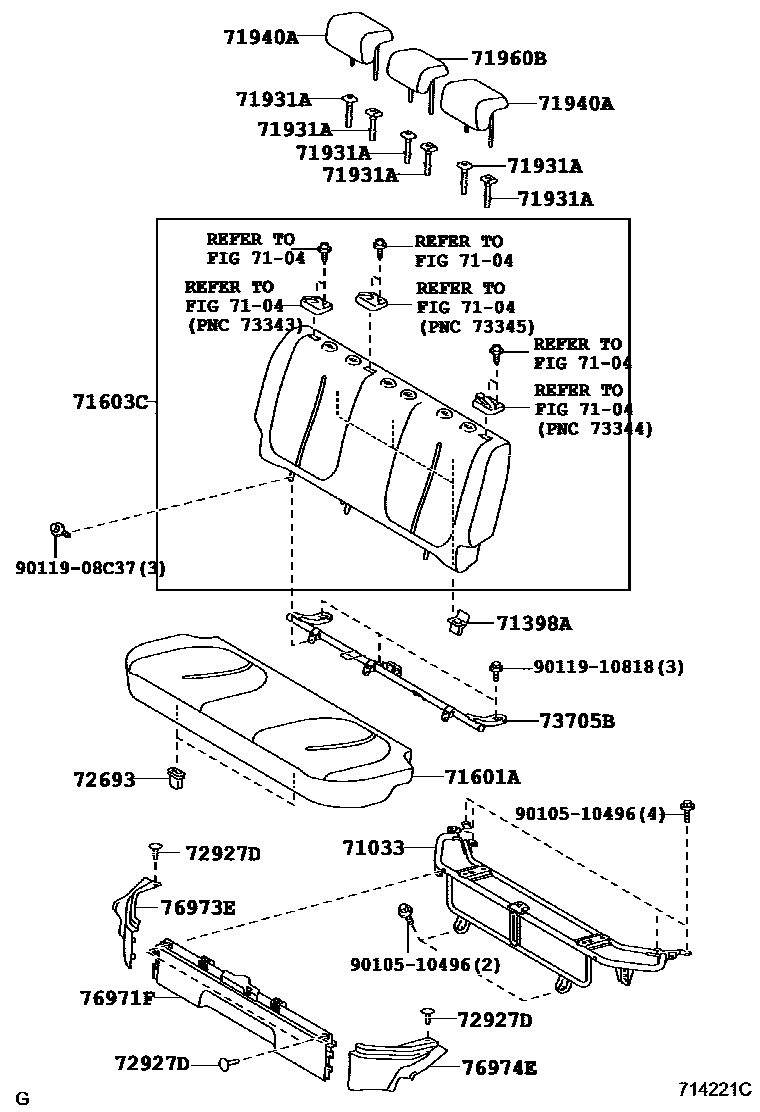

Toyota YARIS EPC diagram 7102, 后排座椅和座椅滑轨, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-52480 |
| 71018 | Rear left seat back frame sub-assembly | 71018-52370 |
| 71033 | Rear seat cushion and leg sub-assembly | 71033-52010 |
| 71281A | Rear seat center armrest hinge | 71281-52030 |
| 71398A | Rear seat back retainer | 71398-52020 |
| 71480E | Rear right seat backrest clip | 90467-09050 |
| 71490A | Rear left seat back clip | 90467-09050 |
| 71611 | Rear seat cushion cushion | 71503-52410 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-52550 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-52430 |
| 71830B | Bushing (for rear seat armrest) | 90386-10033 |
| 72630C | Rear right seat back lock assembly | 72630-52130 |
| 72640A | Rear left seat back lock assembly | 72640-52120 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 73705B | Cross anchor bracket sub-assembly | 73705-52110 · 73705-52120 |
