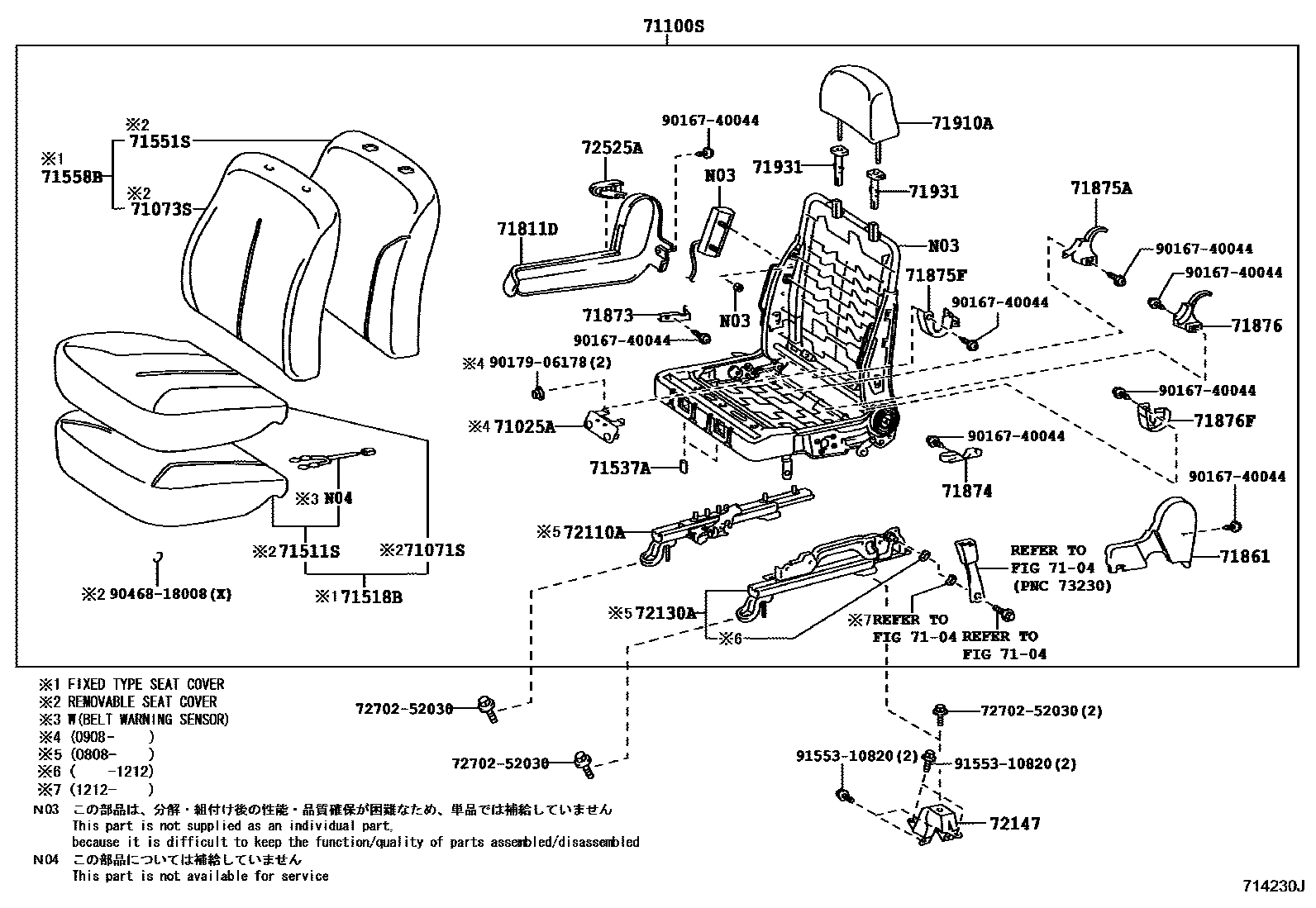

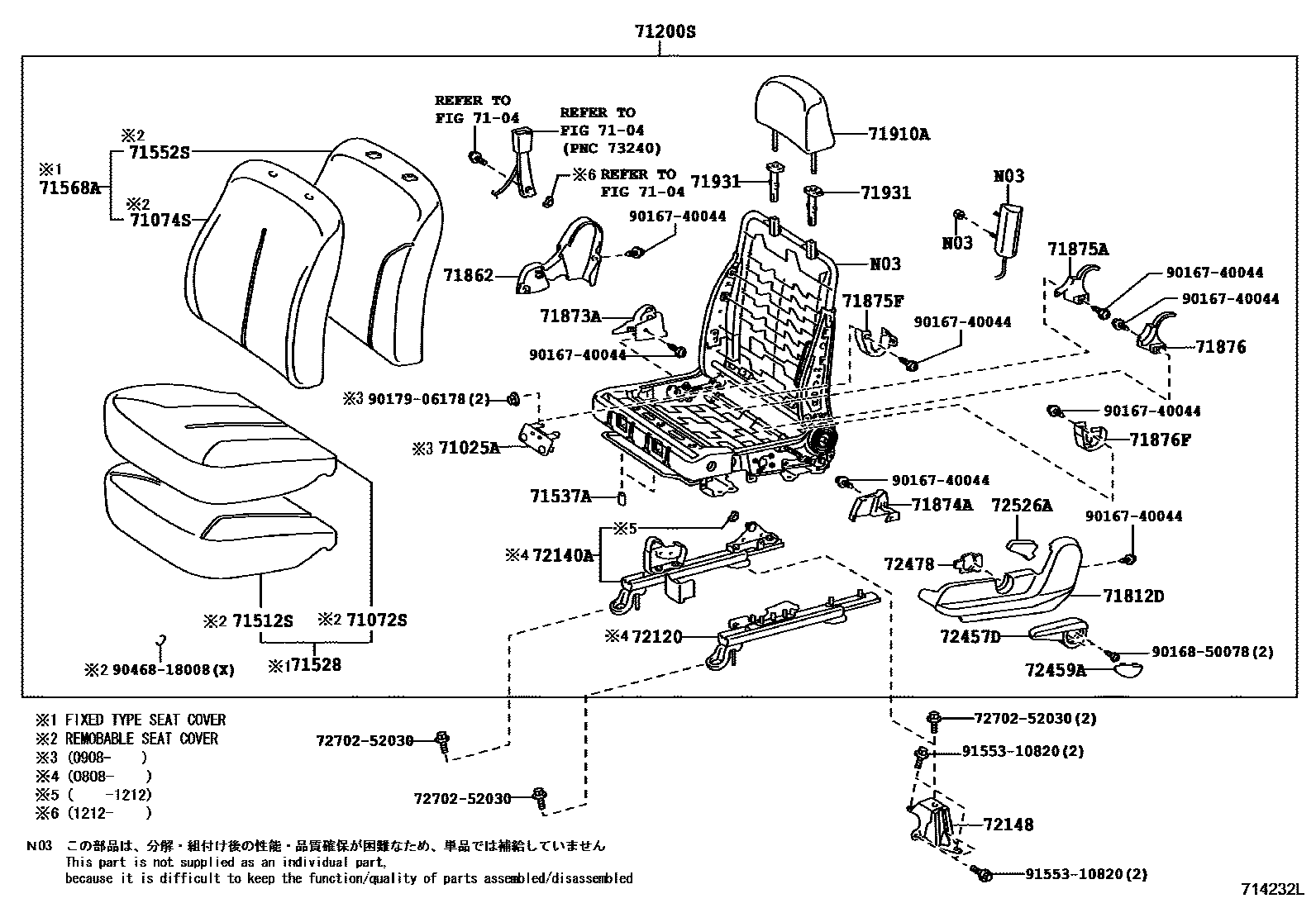

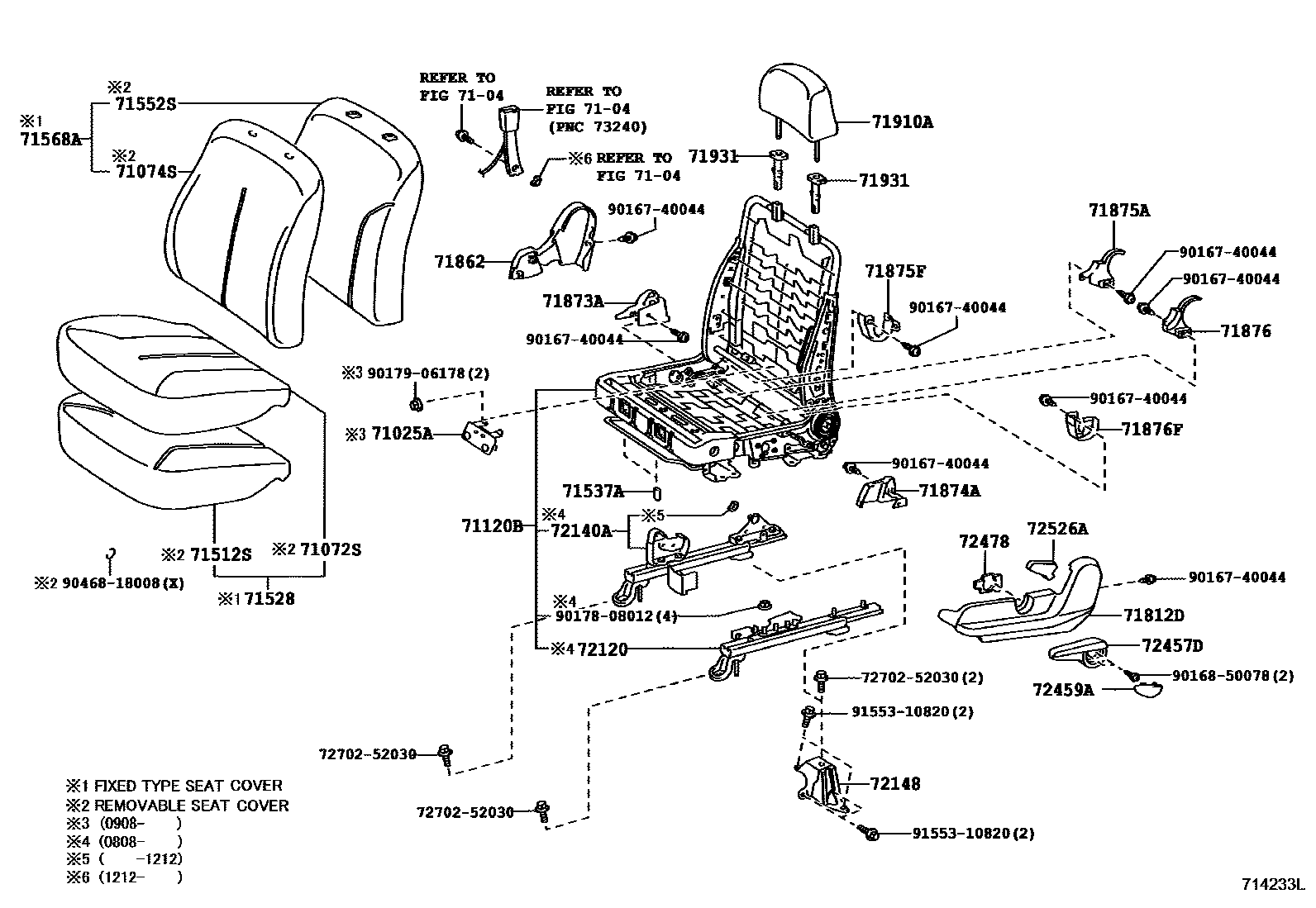

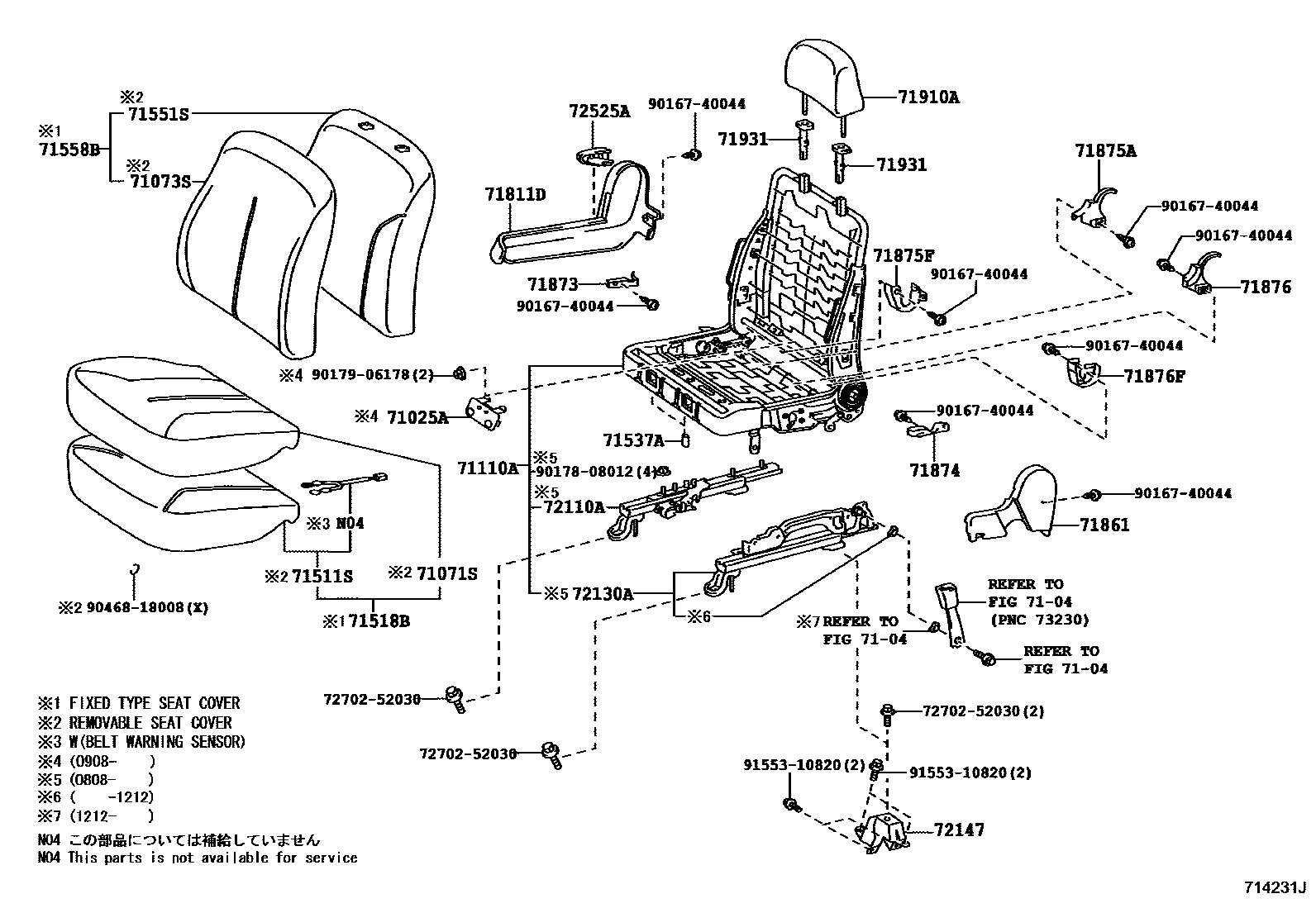

Toyota YARIS 前排座椅和座椅滑轨 — Figure 7101
Toyota YARIS EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71025A | Front seat backrest bracket sub-assembly | 71025-52010 |
| 71110A | Front right seat (with adjuster) frame assembly | 71110-52380 · 71110-52381 · 71110-52382 · 71110-52460 · 71110-52690 · 71110-52691 · 71110-52692 · 71110-52693 |
| 71120B | Front left seat (with adjuster) frame assembly | 71120-52260 · 71120-52261 · 71120-52262 · 71120-52263 · 71120-52380 · 71120-52381 · 71120-52382 · 71120-52540 |
| 71511S | Front right seat cushion cushion (for split seats) | 71051-52060 · 71511-52510 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-52340 |
| 71537A | Front seat cushion protective cover | 71537-26010 |
| 71551S | Front right seat back cushion (for split seats) | 71551-52340 · 71551-52620 · 71551-52630 |
| 71552S | Front left seat back cushion (for split seats) | 71552-52510 · 71552-52540 · 71552-52550 |
| 71558B | Front right seat backrest cushion with protective cover | 71558-52E40 |
| 72110A | Front right seat outer slide rail assembly | 72110-52110 · 72110-52111 |
| 72120 | Front left seat outer slide rail assembly | 72120-52110 · 72120-52111 |
| 72130A | Front right seat inner slide rail assembly | 72130-52180 · 72130-52181 · 72130-52200 · 72130-52201 · 72130-52202 |
| 72140A | Front left seat inner slide rail assembly | 72140-52210 · 72140-52211 · 72140-52220 · 72140-52221 · 72140-52222 |
| 72147 | Front right seat inner slide rail rear lower bracket | 72147-52020 · 72147-52060 |
| 72148 | Front left seat inner slide rail rear lower bracket | 72148-52010 · 72148-52060 |
| 72478 | height adjuster bushing | 72478-60010 |
