Toyota YARIS 前门板和前门玻璃 — Figure 6701

Toyota YARIS EPC diagram 6701, 前门板和前门玻璃, with 2 images and 36 PNC and OE references.

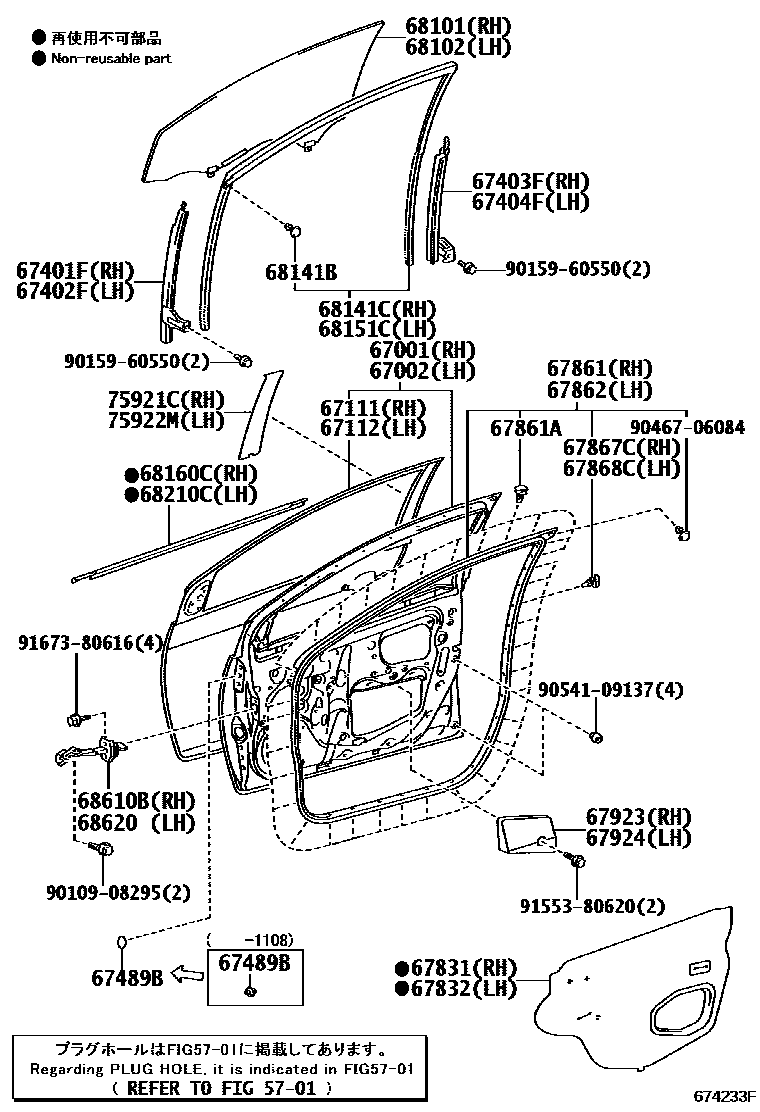

Toyota YARIS 前门板和前门玻璃 EPC diagram — 674233F
前门板和前门玻璃 — 674233F (200602 – 999999)
Toyota YARIS 前门板和前门玻璃 EPC diagram — 674236D
前门板和前门玻璃 — 674236D (200602 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-52410 · 67001-52420
67002Left front door panel sub-assembly67002-52410 · 67002-52420
67111Outer right front door panel67111-52180
67112Outer left front door panel67112-52170
67401FRight front door front lower door frame sub-assembly67401-52110
67402FLeft front door front lower door frame sub-assembly67402-52100
67403FRight front door rear lower door frame sub-assembly67403-52190
67404FLeft front door rear lower door frame sub-assembly67404-52160
67489BFront door lower cover seal67489-52020 · 90950-06105
67491ARight front door lower door frame bracket decorative strip67491-52140 · 67491-52150
67492ALeft front door lower door frame bracket decorative strip67492-52130 · 67492-52140
67601BCatch (for front door trim panel)90467-09206 · 90467-10161
67625Right front door trim panel bracket67625-52100
67626Left front door trim panel bracket67625-52100
67831Right front door access hole cover67831-52340 · 67831-52341 · 67831-52342 · 67831-52343
67832Left front door access hole cover67832-52220 · 67832-52221 · 67832-52222 · 67832-52223
67861Right front door seal67861-52200
67861AFixing piece (for front door sealing strip)67867-52020 · 67867-52030
67862Left front door seal67862-52190
67867CRight front door seal strip fixing67867-12150
67868CLeft front door seal strip fixing67867-12150
67923Front door No. 1 reinforcement cushion pad67923-52150
67924Front door No. 2 reinforcement cushion pad67924-52160
68101Right front door glass sub-assembly68110-52270
68102Left front door glass sub-assembly68120-52270
68141BDoor glass lift chute clip90467-06084
68141CRight front door glass lift channel68141-52190
68151CLeft front door glass lift channel68151-52180
68160CRight front door glass outer sealing strip assembly68160-52150
68171BRight front door glass inner sealing strip68171-52180
68172ALeft front door glass inner sealing strip68172-52150
68210CLeft front door glass outer sealing strip assembly68210-52150
68610BRight front door opening limiter assembly68610-52100 · 68610-52101
68620Left front door opening limiter assembly68610-52100 · 68610-52101
75921CNo. 1 right side light-shielding film75921-52090
75922MNo. 1 left shading film75922-52090
