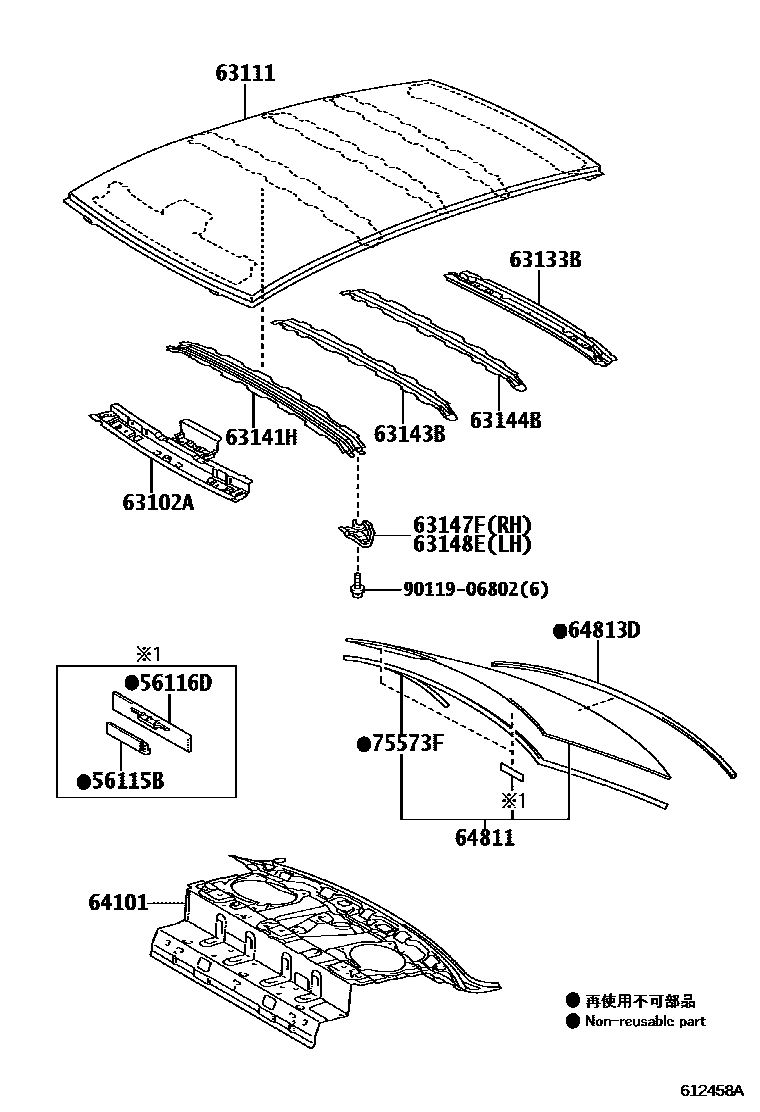

Toyota YARIS 天窗板和背窗玻璃 — Figure 6104
Toyota YARIS EPC diagram 6104, 天窗板和背窗玻璃, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30100 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 63102A | Windshield roof sub-assembly | 63102-52140 |
| 63111 | roof panel | 63111-52250 |
| 63133B | back window frame | 63133-52020 |
| 63141H | Center roof panel reinforcement | 63141-52120 |
| 63143B | No. 3 roof panel reinforcement | 63143-52130 |
| 63144B | No. 4 roof panel reinforcement | 63144-52100 |
| 63147F | Right roof panel reinforcement bracket | 63147-52060 |
| 63148E | Left roof panel reinforcement bracket | 63147-52060 |
| 64101 | Upper back panel sub-assembly | 64101-52080 · 64101-52100 |
| 64811 | back window glass | 64801-52100 · 64801-52101 · 64801-52102 · 64801-52120 · 64801-52121 · 64801-52122 |
| 64813D | Back window glass adhesive seal | 64813-52080 |
| 75573F | Protective strip for rear window | 75573-52240 |
