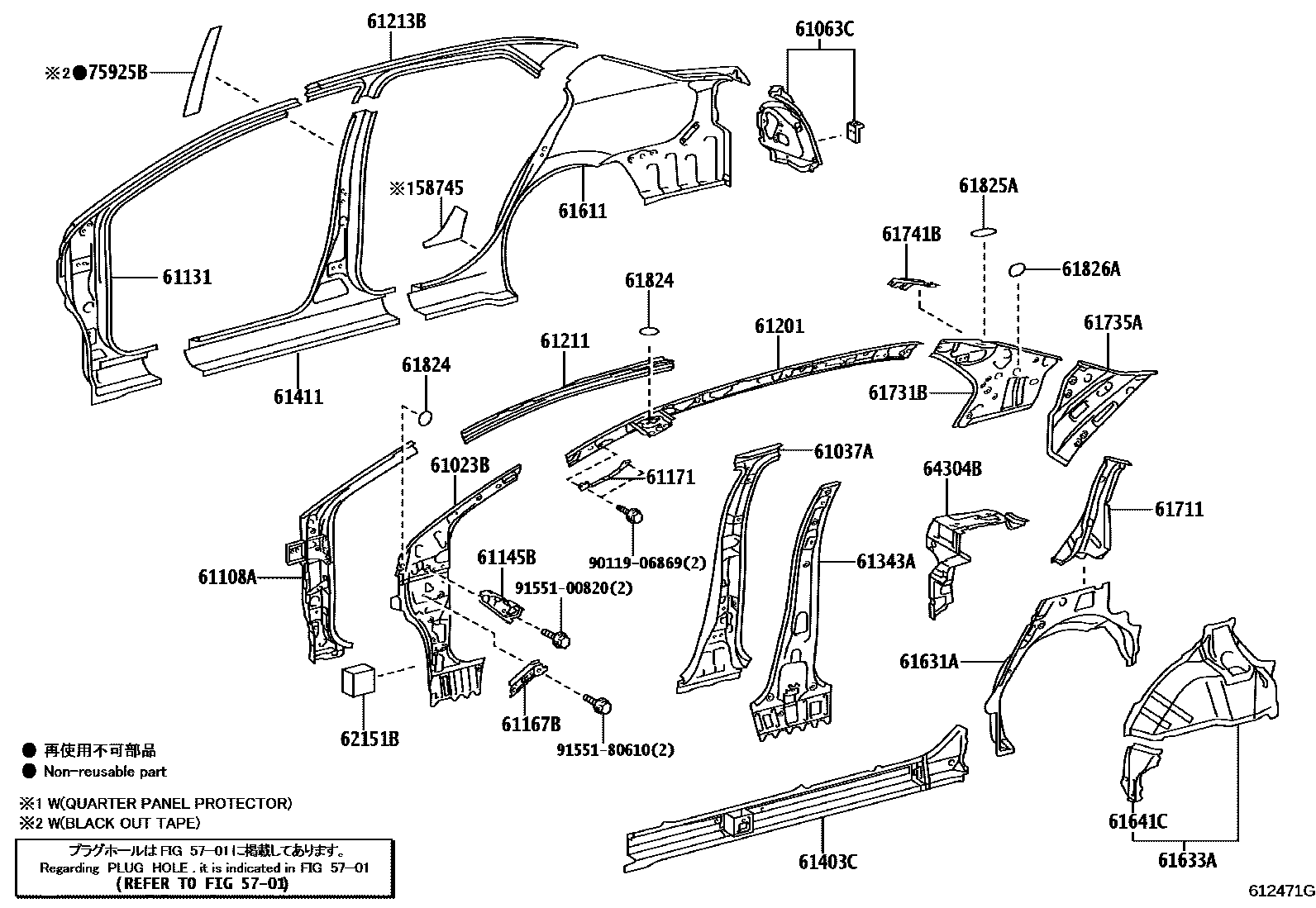

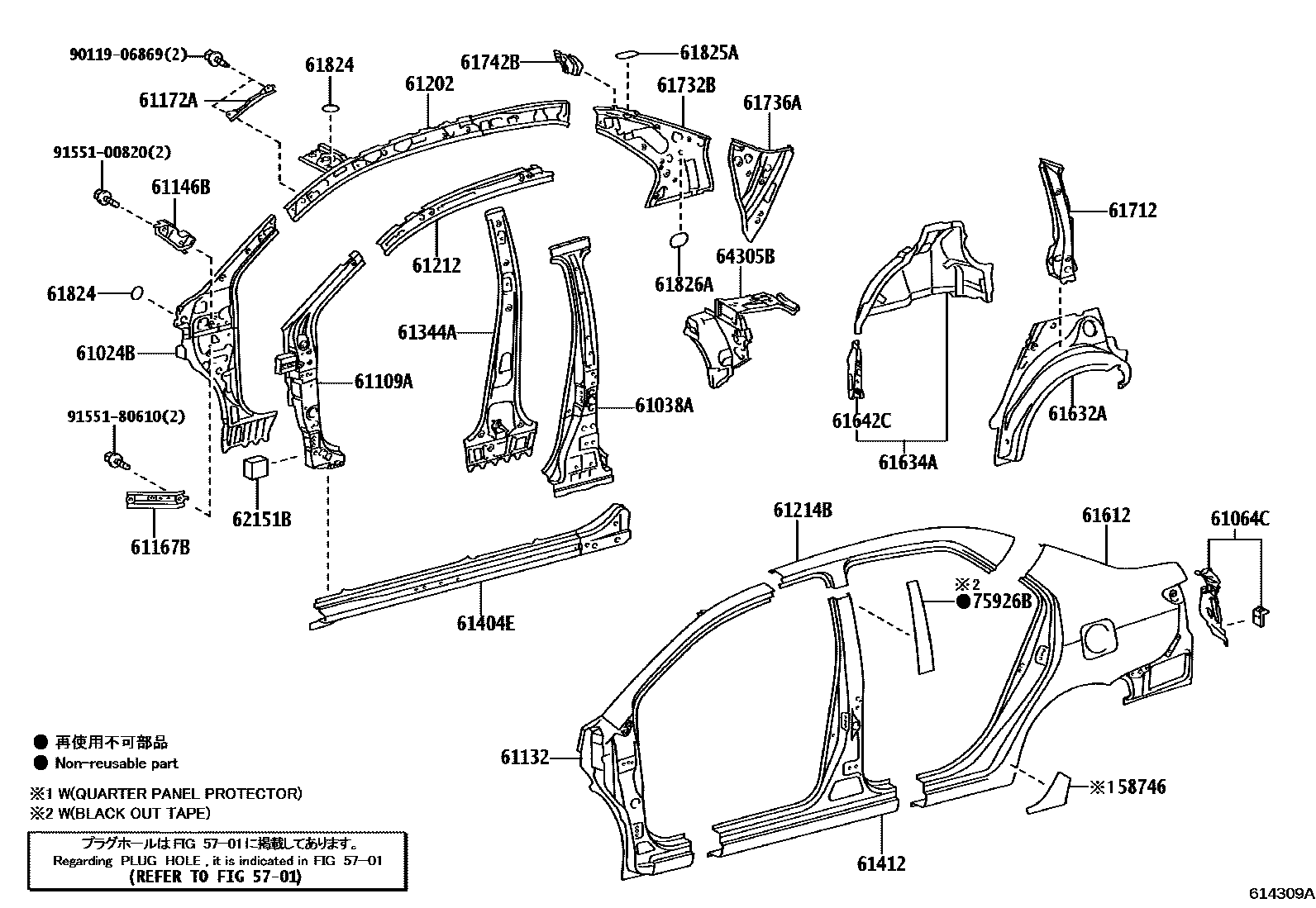

Toyota YARIS 侧梁 — Figure 6101
Toyota YARIS EPC diagram 6101, 侧梁, with 2 images and 53 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58745 | Right front side panel protector | 58741-52210 · 58741-52211 |
| 58746 | Left front side panel protector | 58742-52240 · 58742-52241 |
| 61023B | Right body inner front pillar sub-assembly | 61023-52140 |
| 61024B | Left body inner front pillar sub-assembly | 61024-52140 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-52906 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-52906 |
| 61063C | Trunk door right front opening slot sub-assembly | 61063-52020 |
| 61064C | Trunk door left front opening slot sub-assembly | 61064-52020 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-52140 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-52140 |
| 61131 | Right body outer front upper pillar | 61131-52230 · 61131-52240 |
| 61132 | Left body outer front upper pillar | 61132-52210 · 61132-52220 |
| 61145B | Right body front pillar lower corner panel | 61145-52030 |
| 61146B | Left body front pillar lower corner panel | 61146-52040 |
| 61167B | Body front pillar lower bracket | 61167-52010 |
| 61171 | Right inner front pillar lower fixing piece | 61171-52020 |
| 61172A | Left inner front pillar lower fixing piece | 61172-52010 |
| 61201 | Roof right side longitudinal beam sub-assembly | 61201-52090 |
| 61202 | Roof left side longitudinal beam sub-assembly | 61202-52070 |
| 61211 | Roof right outer longitudinal beam | 61211-52150 |
| 61212 | Roof left outer longitudinal beam | 61212-52160 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-52130 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-52130 |
| 61343A | Right body inner center pillar | 61032-52050 |
| 61344A | Left body inner center pillar | 61042-52050 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-52170 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-52170 |
| 61411 | Right door outer sill panel | 61411-52200 · 61411-52210 |
| 61412 | Left door outer sill panel | 61412-52210 · 61412-52220 |
| 61611 | Right side hoarding | 61601-52350 · 61601-52360 · 61601-52400 · 61601-52540 |
| 61612 | left side panel | 61602-52340 · 61602-52380 · 61602-52390 · 61602-52430 |
| 61631A | Right wheel cover outer panel | 61631-52140 |
| 61632A | Left side wheel cover outer panel | 61632-52140 |
| 61633A | Right wheel housing lining panel | 61605-52070 |
| 61634A | Left side wheel housing lining panel | 61606-52070 |
| 61641C | Right front side wheel housing corner panel | 61641-52100 |
| 61642C | Left front side wheel housing corner panel | 61642-52100 |
| 61711 | Roof right side outer panel | 61711-52150 |
| 61712 | Roof left outer panel | 61712-52180 |
| 61731B | Roof right inner panel | 61731-52210 |
| 61732B | Roof left inner panel | 61732-52260 |
| 61735A | Right rear roof inner panel | 61735-52090 |
| 61736A | Left rear roof inner panel | 61736-52090 |
| 61741B | Rear window opening right reinforcement | 61741-52040 |
| 61742B | Rear window opening left reinforcement | 61742-52030 |
| 61824 | Noise Control Panel No. 1 | 61824-52010 |
| 61825A | Noise Control Panel No. 2 | 61825-52060 |
| 61826A | Noise Control Panel No. 3 | 61824-52010 · 61825-52060 |
| 62151B | Front cowl side silencer pads | 62151-52030 |
| 64304B | Glove box bracket right reinforcement sub-assembly | 64304-52080 |
| 64305B | Glove box bracket left reinforcement sub-assembly | 64305-52080 |
| 75925B | No. 3 right side light-blocking film | 75925-52080 |
| 75926B | No. 3 left shading film | 75926-52080 |
