Toyota YARIS 地板垫和地毯 — Figure 5804

Toyota YARIS EPC diagram 5804, 地板垫和地毯, with 1 images and 6 PNC and OE references.

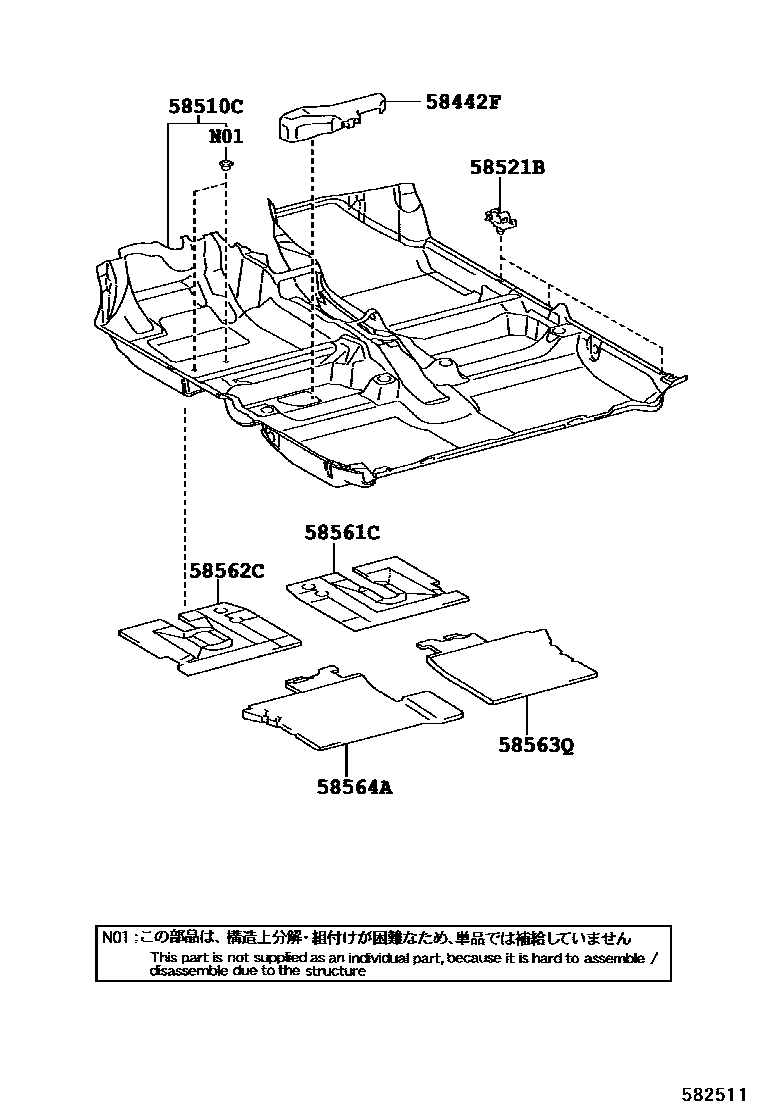

Toyota YARIS 地板垫和地毯 EPC diagram — 582511
地板垫和地毯 — 582511 (200602 – 999999)

PNC and OE references

PNCPart nameOE numbers
58442Fjack cover58442-52060
58521Bcarpet hook58521-52040
58561CFront floor silencer No. 158561-52160
58562CFront floor silencer No. 258562-52130
58563QFront floor silencer No. 358563-52140
58564AFront floor silencer No. 458564-52140
