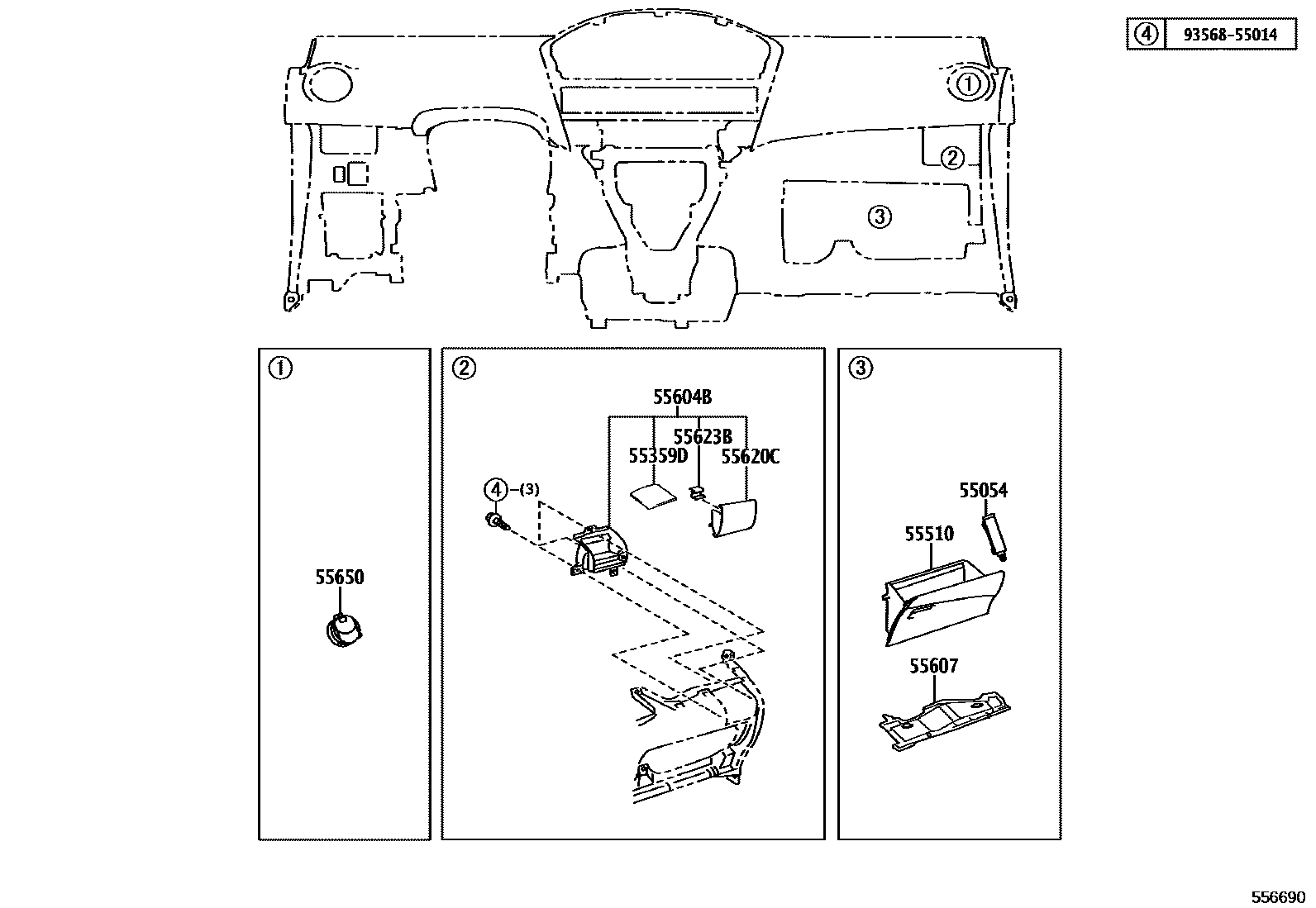

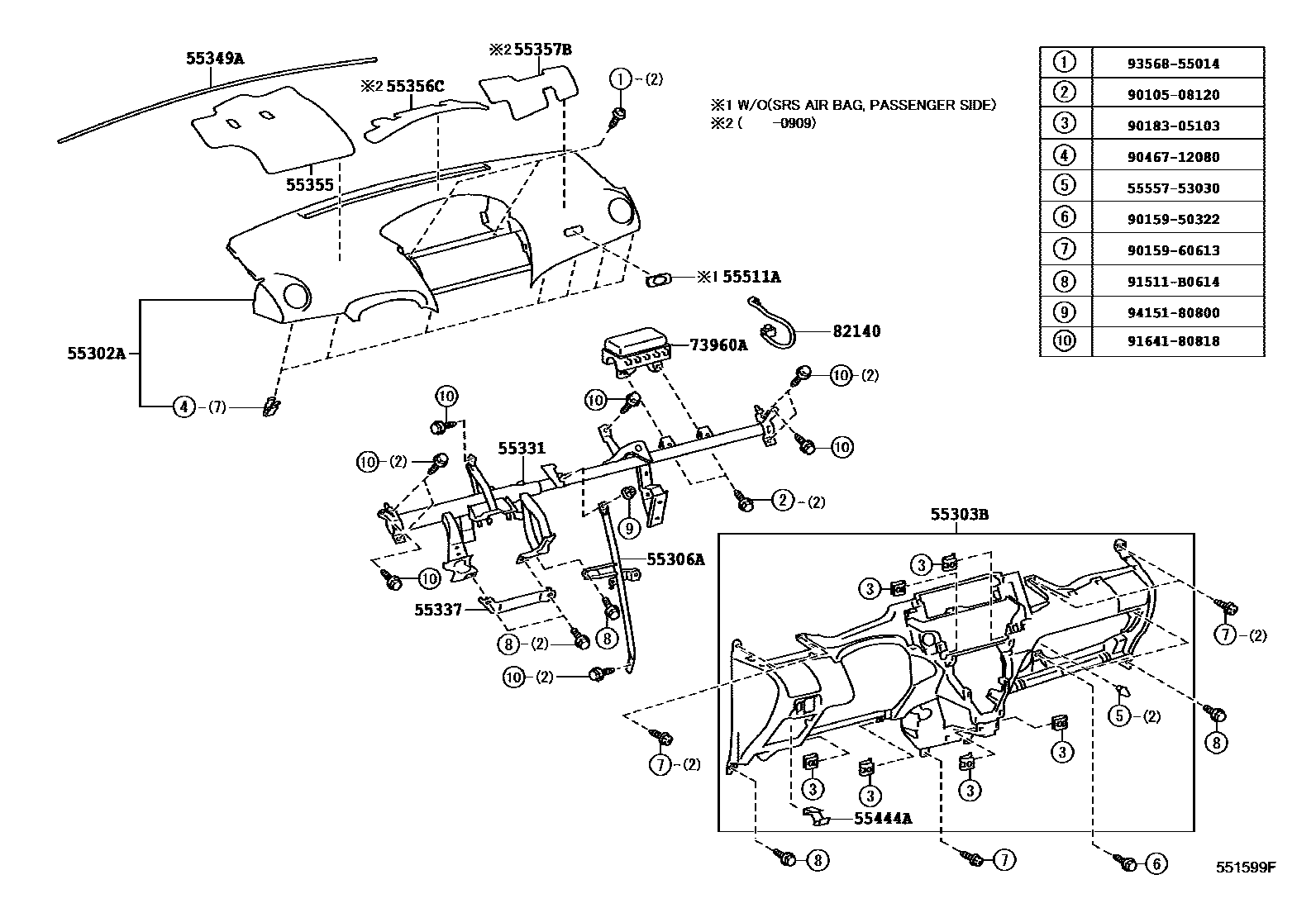

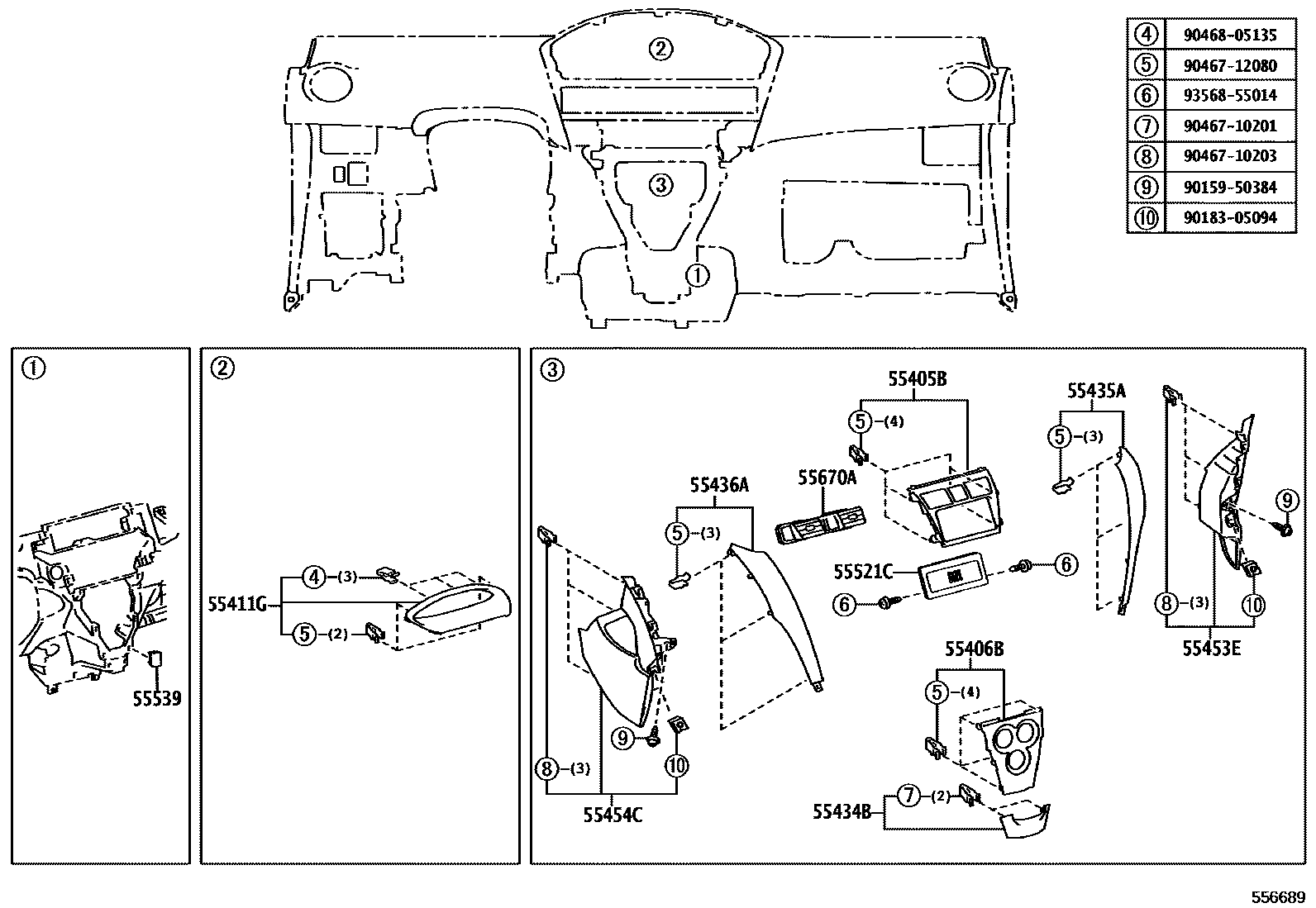

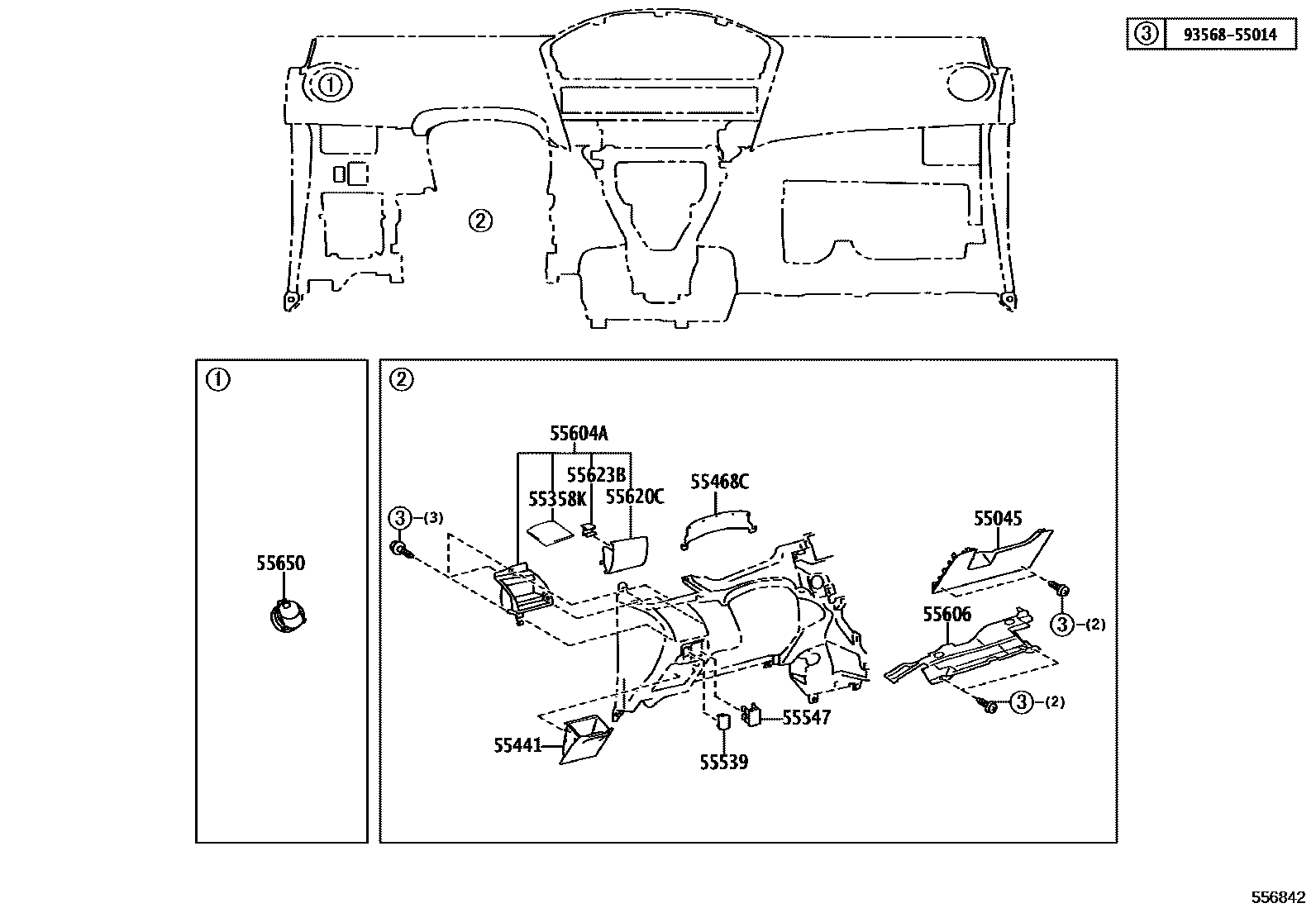

Toyota YARIS 仪表板和手套箱 — Figure 5501
Toyota YARIS EPC diagram 5501, 仪表板和手套箱, with 4 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-52020 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-52210 |
| 55331 | Dashboard reinforcement | 55330-52440 · 55330-52441 |
| 55337 | Dashboard sub-reinforcement | 55337-52020 |
| 55349A | Dashboard cushion | 55349-52060 · 55349-52290 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-52140 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-52140 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-52120 |
| 55358K | Dashboard No. 4 Cushion Pad | 55358-52110 |
| 55359D | Dashboard No. 5 Cushion Pad | 55359-52090 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-52640 · 55405-52780 · 55405-52790 |
| 55406B | Center instrument cluster lower decorative panel sub-assembly | 55406-52170 · 55406-52260 · 55406-52270 |
| 55444A | Dashboard storage box spring | 55444-52260 · 55444-52261 |
| 55468C | Instrument cluster No. 1 decorative panel seal | 55468-52040 |
| 55521C | stereo system hole cover | 55522-52020 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-52020 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-52020 |
| 55623B | Dashboard cup holder spring | 55623-52040 · 55623-52050 |
| 55670A | Instrument panel central air register assembly | 55670-52030 · 55670-52050 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-52080 |
| 82140 | Instrument panel wiring harness assembly | 82140-52010 |
