Toyota YARIS 前翼子板挡泥板和前围板 — Figure 5304

Toyota YARIS EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 30 PNC and OE references.

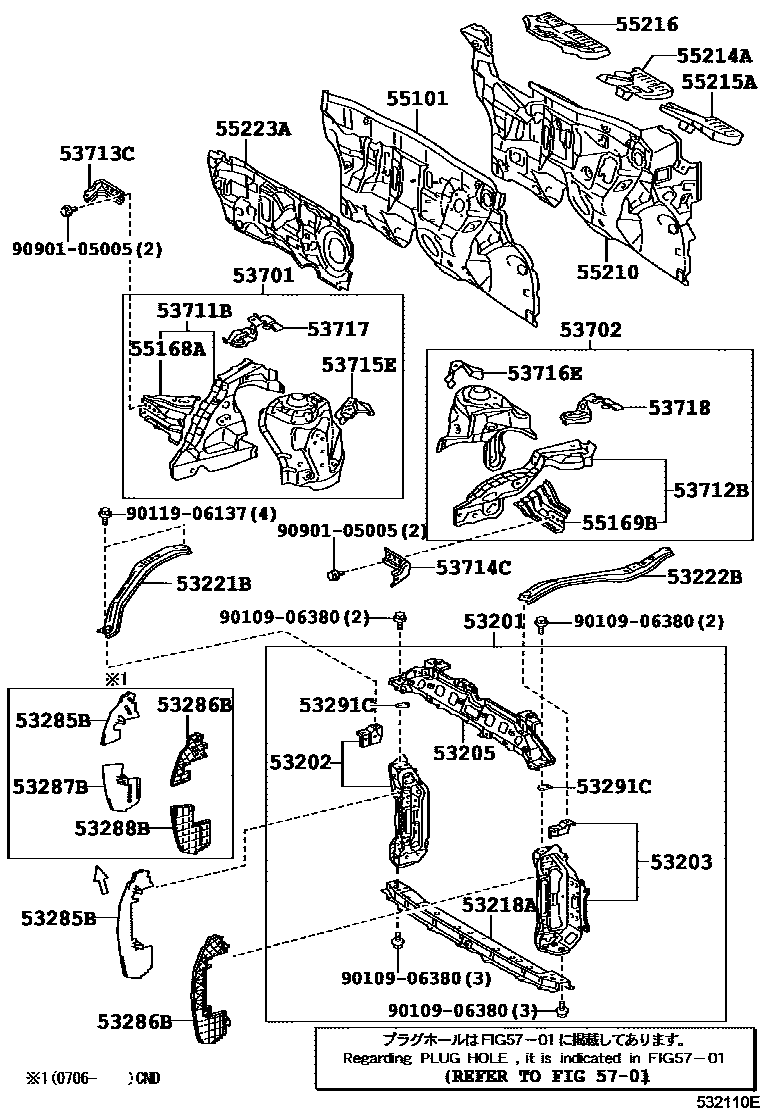

Toyota YARIS 前翼子板挡泥板和前围板 EPC diagram — 532110E
前翼子板挡泥板和前围板 — 532110E (200602 – 999999)

PNC and OE references

PNCPart nameOE numbers
53201Radiator bracket sub-assembly53201-52230
53202Radiator right side bracket sub-assembly53202-52902 · 53202-52909
53203Radiator left bracket sub-assembly53203-52902 · 53203-52907
53205Radiator upper bracket sub-assembly53205-52100
53218ARadiator lower support53028-52070
53221BRadiator right side bracket baffle stay53221-52020
53222BRadiator left bracket baffle stay53222-52020
53285BRadiator side 1 air seal53285-52230 · 53285-52240
53286BRadiator No. 2 side air seal53286-52170 · 53286-52180
53287BRadiator right side bracket extension53287-52050
53288BRadiator left bracket extension53288-52050
53291CRadiator bracket to frame seal53291-52070
53701Right front fender fender sub-assembly53701-52180
53702Left front fender fender sub-assembly53702-52180
53711BRight front fender front fender53707-52030 · 53707-52060
53712BLeft front fender front fender53708-52030 · 53708-52060
53713CRight front fender fender front extension53713-52030
53714CLeft front fender fender front extension53714-52040
53715ERight front fender fender rear extension53715-52030
53716ELeft front fender fender rear extension53716-52030
53717Right fender fender side panel53717-52100
53718Left fender fender side panel53718-52100
55101Front apron sub-assembly55101-52490 · 55101-52500
55168ARight front fender mounting bracket55168-52130
55169BLeft front fender mounting bracket55169-52130
55210Front wall insulation pad assembly55210-52230
55214ANo. 2 insulation pad for front wall panel55214-52140
55215ANo. 3 insulation pad for front wall panel55215-52110
55216No. 4 heat insulation pad for front wall55216-52020 · 55216-52021
55223AFront wall outer heat insulation pad55223-52090 · 55223-52110
