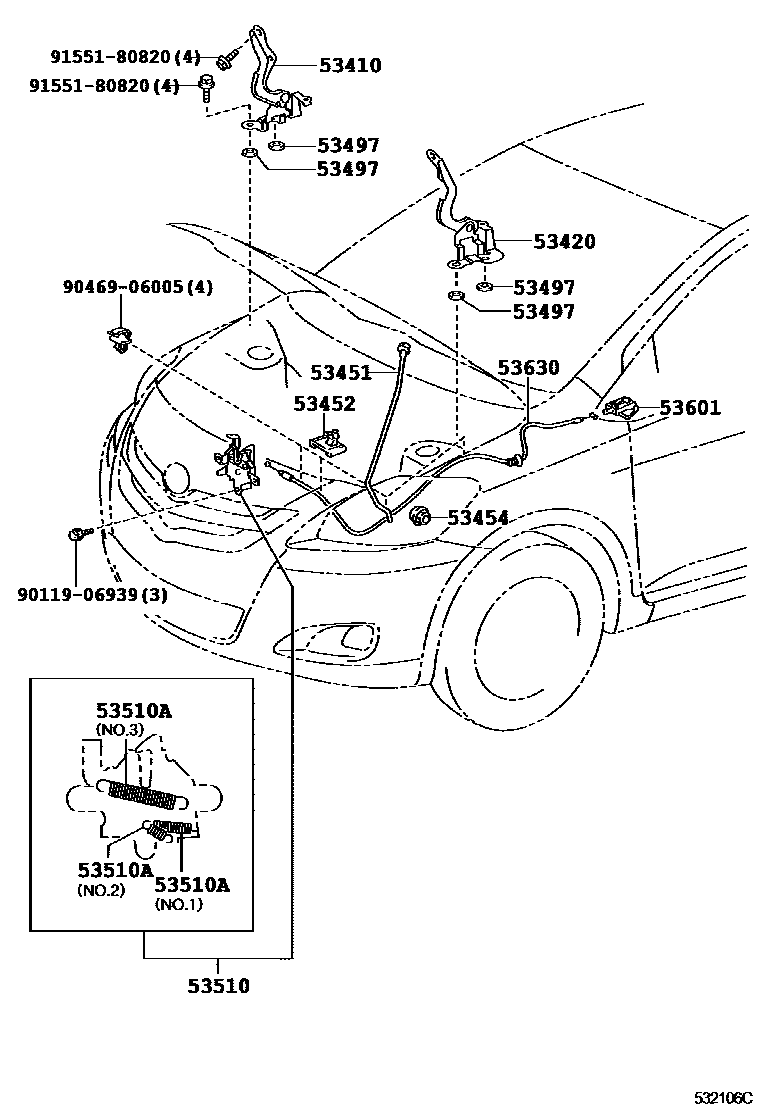

Toyota YARIS 发动机盖锁和铰链 — Figure 5303
Toyota YARIS EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-52240 |
| 53420 | Engine cover left hinge assembly | 53420-52240 |
| 53451 | Engine cover support rod | 53440-52160 |
| 53452 | Engine cover stay rod fixing | 53452-52010 |
| 53454 | Engine cover support rod clip | 53454-52040 |
| 53497 | No. 1 engine cover hinge gasket | 53497-10020 · 53497-42010 |
| 53510 | Engine cover lock assembly | 53510-52360 · 53510-52370 · 53510-52380 |
| 53510A | Tension spring (for hood lock) | 90506-09055 · 90506-12063 · 90506-16077 |
| 53630 | Engine hood lock control cable assembly | 53630-52110 |
