Toyota YARIS 制动总泵 — Figure 4702

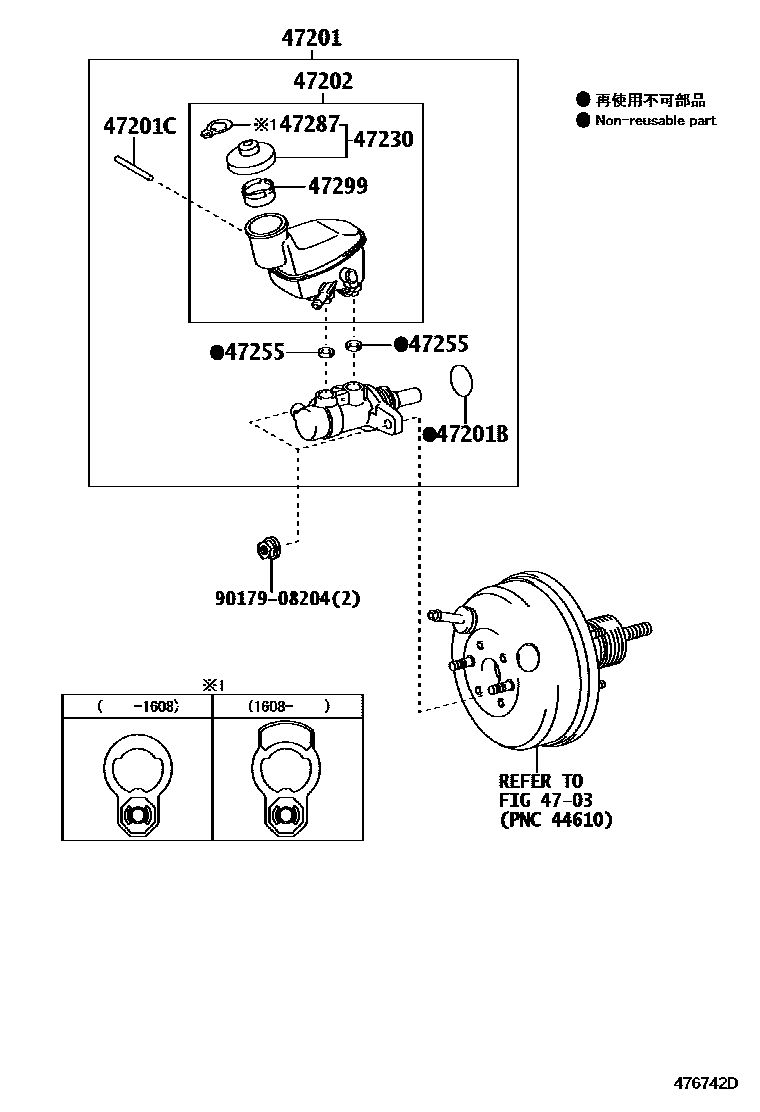

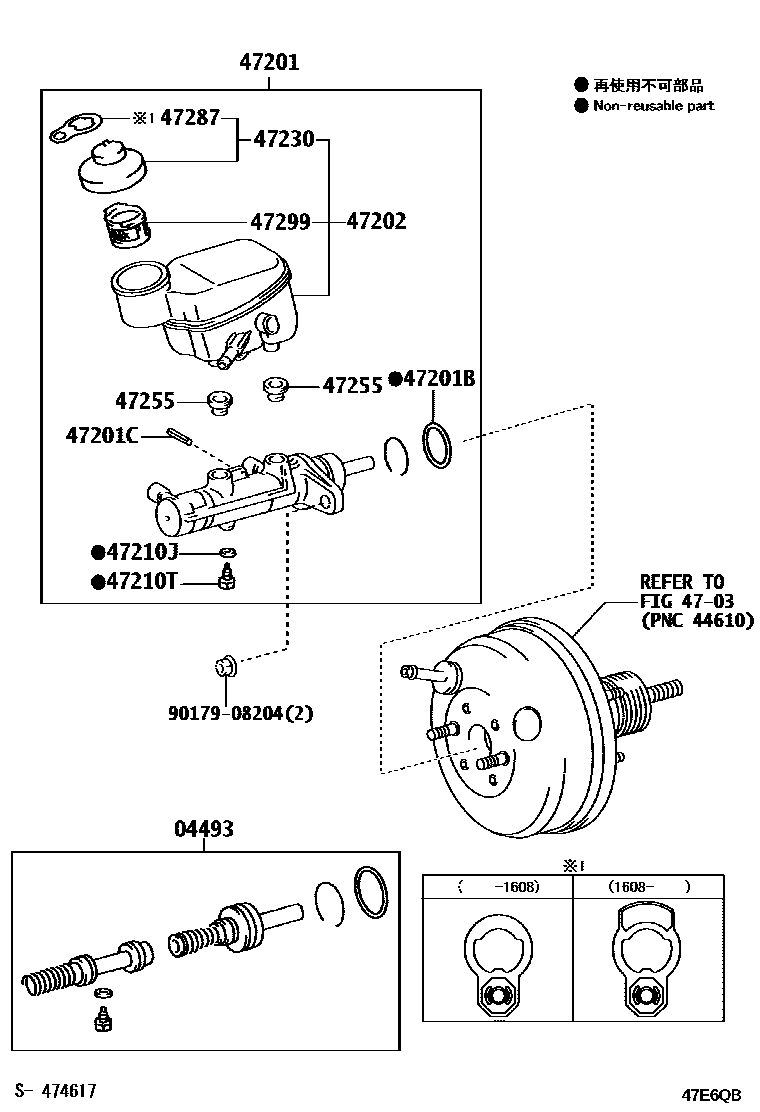

Toyota YARIS EPC diagram 4702, 制动总泵, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04493 | Brake master cylinder assembly | 04493-52070 |
| 47201 | Brake master cylinder sub-assembly | 47201-52320 · 47201-52330 · 47201-52460 · 47201-52470 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH002 · 90029-20059 |
| 47201C | Brake master cylinder ring pin | 90029-15803 · 90029-15804 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-52160 · 47220-52170 · 47220-52190 · 47220-52200 |
| 47210J | Gasket (for master cylinder) | 90029-43001 |
| 47210T | Bolt (for brake master cylinder) | 90109-06077 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-20140 · 47230-28240 |
| 47255 | Master pump reservoir seal | 31417-35010 · 90029-48001 |
| 47287 | brake fluid information label | 47287-20010 |
| 47299 | Brake master cylinder reservoir filter | 47299-25010 |
