Toyota YARIS Steering Wheel — Figure 4504

Toyota YARIS EPC diagram 4504, Steering Wheel, with 1 images and 3 PNC and OE references.

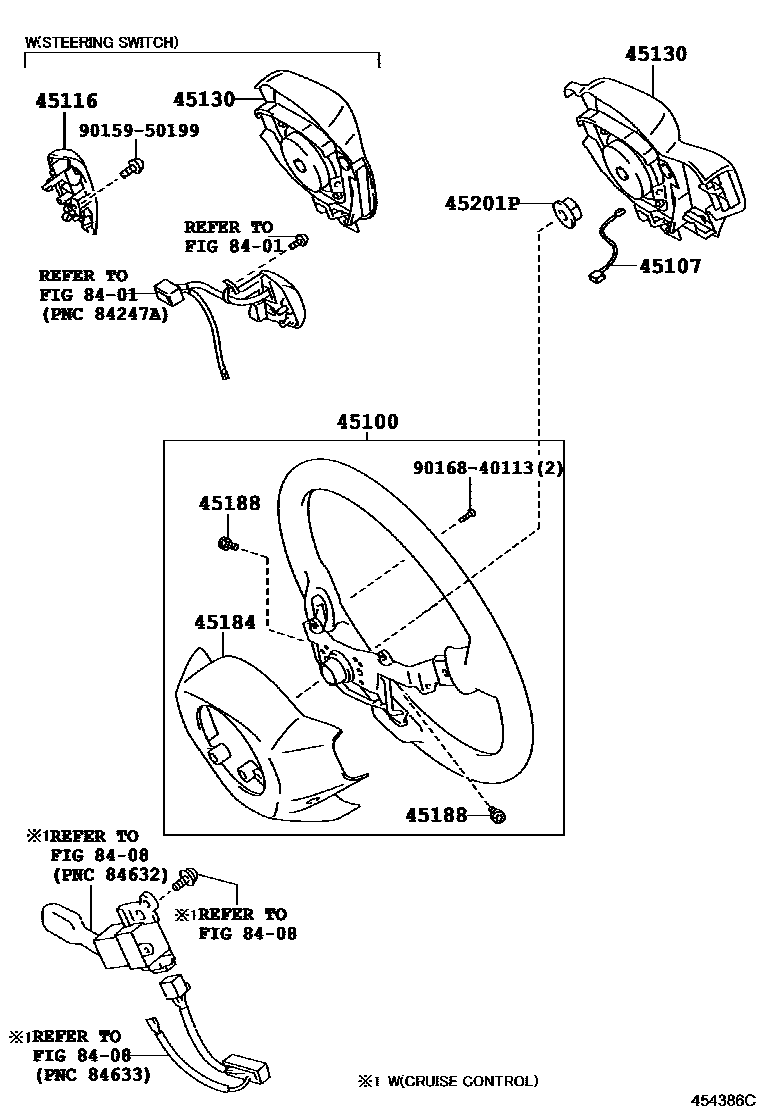

Toyota YARIS Steering Wheel EPC diagram — 454386C
Steering Wheel — 454386C (200602 – 999999)

PNC and OE references

PNCPart nameOE numbers
45107Speaker button wiring harness sub-assembly45107-48010 · 45107-52010
45188Steering wheel trim cover fixing screws45188-60010
45201PSteering wheel fixing nut90179-12071
