Toyota YARIS 离合器踏板和挠性软管 — Figure 3102
Toyota YARIS EPC diagram 3102, 离合器踏板和挠性软管, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

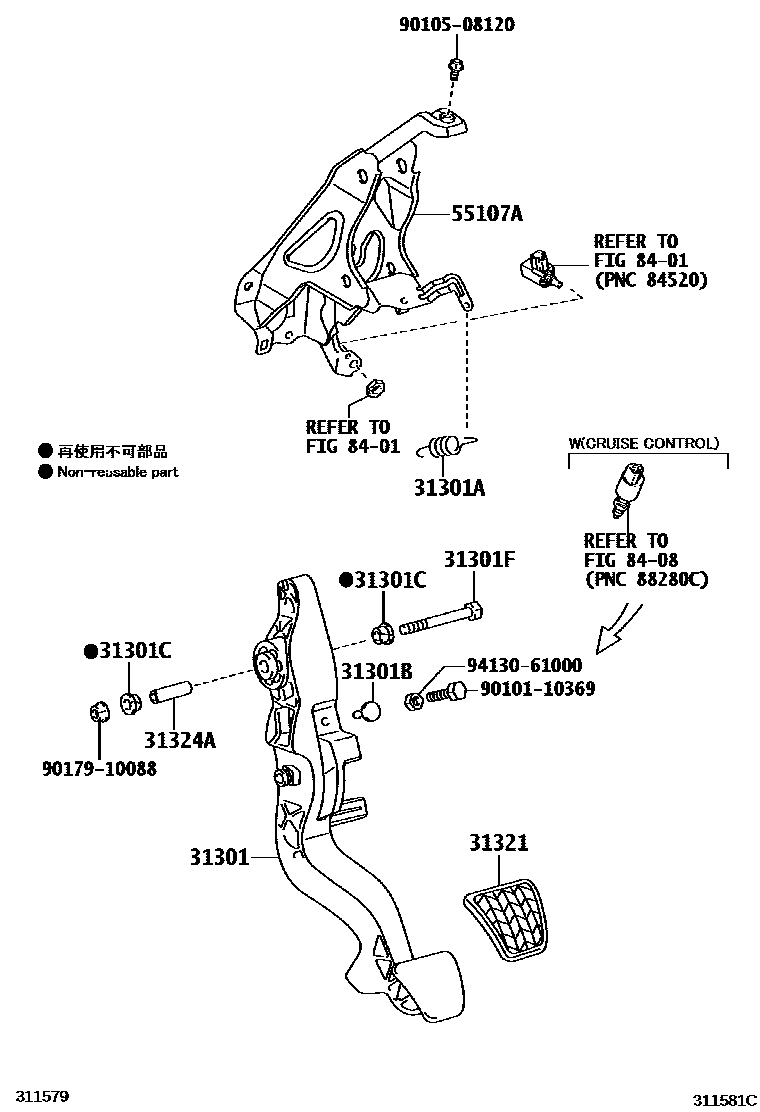

| 31301 | Clutch pedal sub-assembly | 31311-52040 |
| 31301A | Spring (for clutch pedal) | 90507-14047 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10081 · 90105-10563 |
| 31321 | clutch pedal pad | 31321-52010 · 31321-52020 |
| 31324A | clutch pedal collar | 90387-10004 |

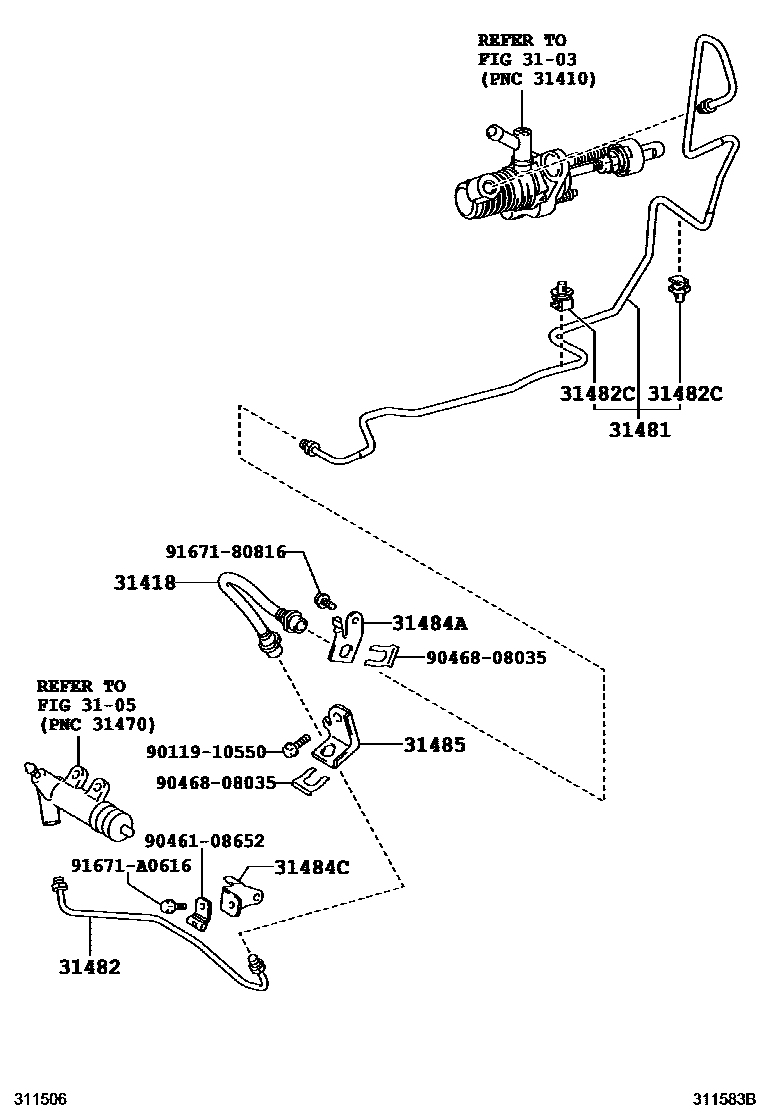

| 31418 | clutch hose | 90947-02E09 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-52110 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-52070 |
| 31482C | Clamp (for clutch tube) | 90949-01D17 |
| 31484A | No. 1 flexible hose bracket (for clutch) | 31484-52090 |
| 31484C | No. 1 clutch tube bracket | 31484-52150 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31484-52050 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-52120 · 55107-52121 |
