Toyota YARIS vacuum tube — Figure 1708

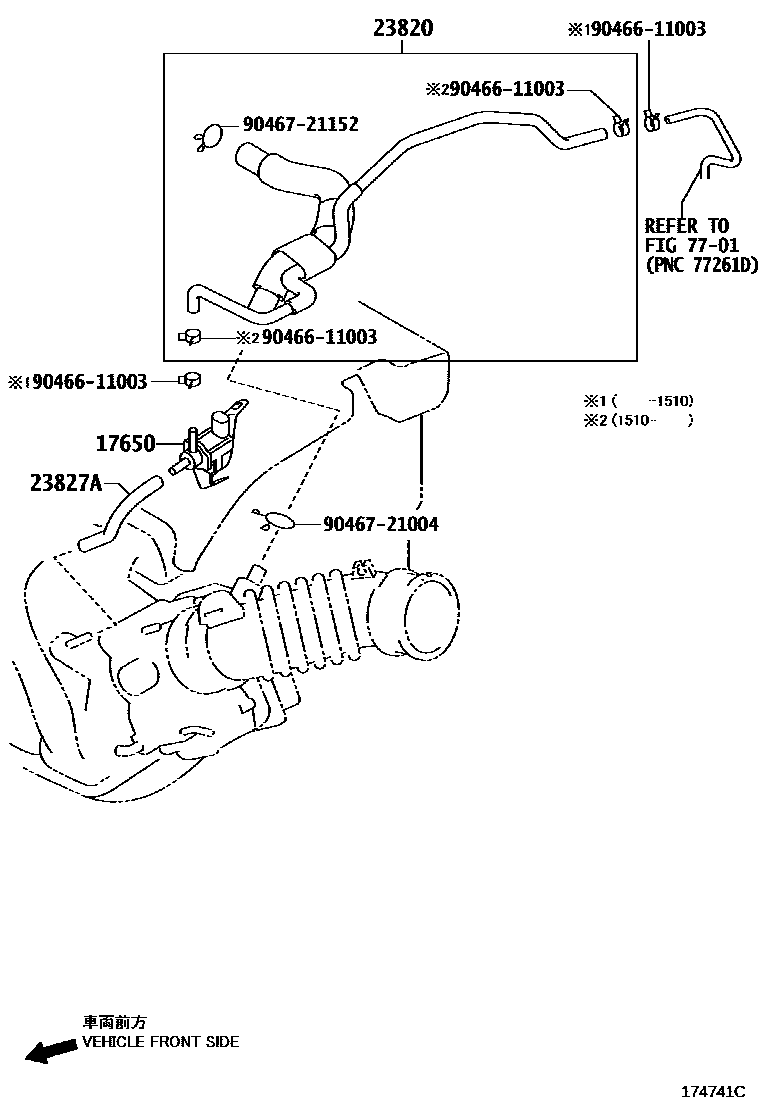

Toyota YARIS EPC diagram 1708, vacuum tube, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17650 | Vacuum switch valve assembly | 25860-21090 |
| 23820 | Fuel vapor supply hose assembly | 23820-21100 · 23820-21101 |
| 23827A | No. 2 fuel vapor supply hose | 23827-21150 |
