Toyota YARIS Heating & Air Conditioning - Cooler Piping — Figure 8718

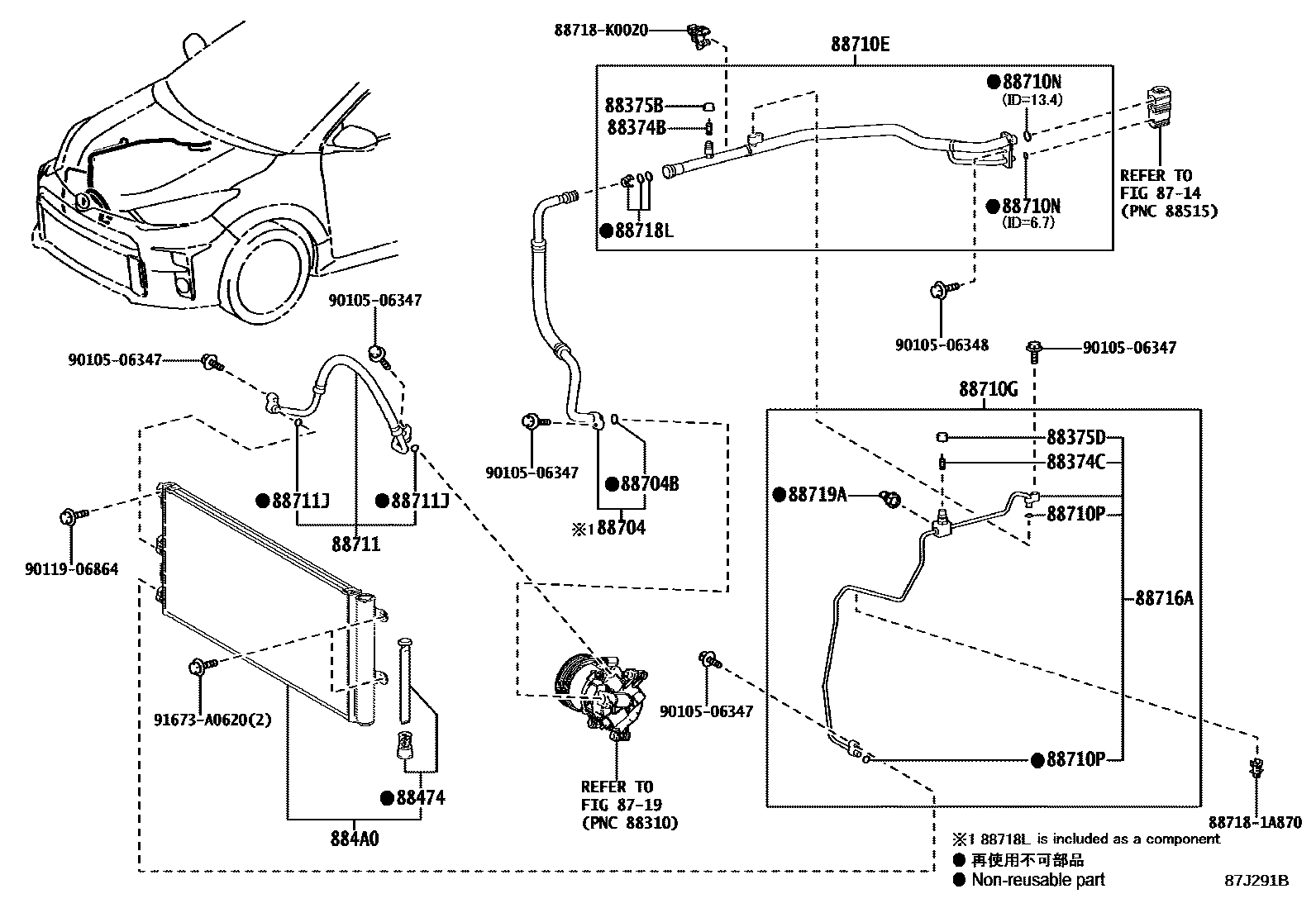

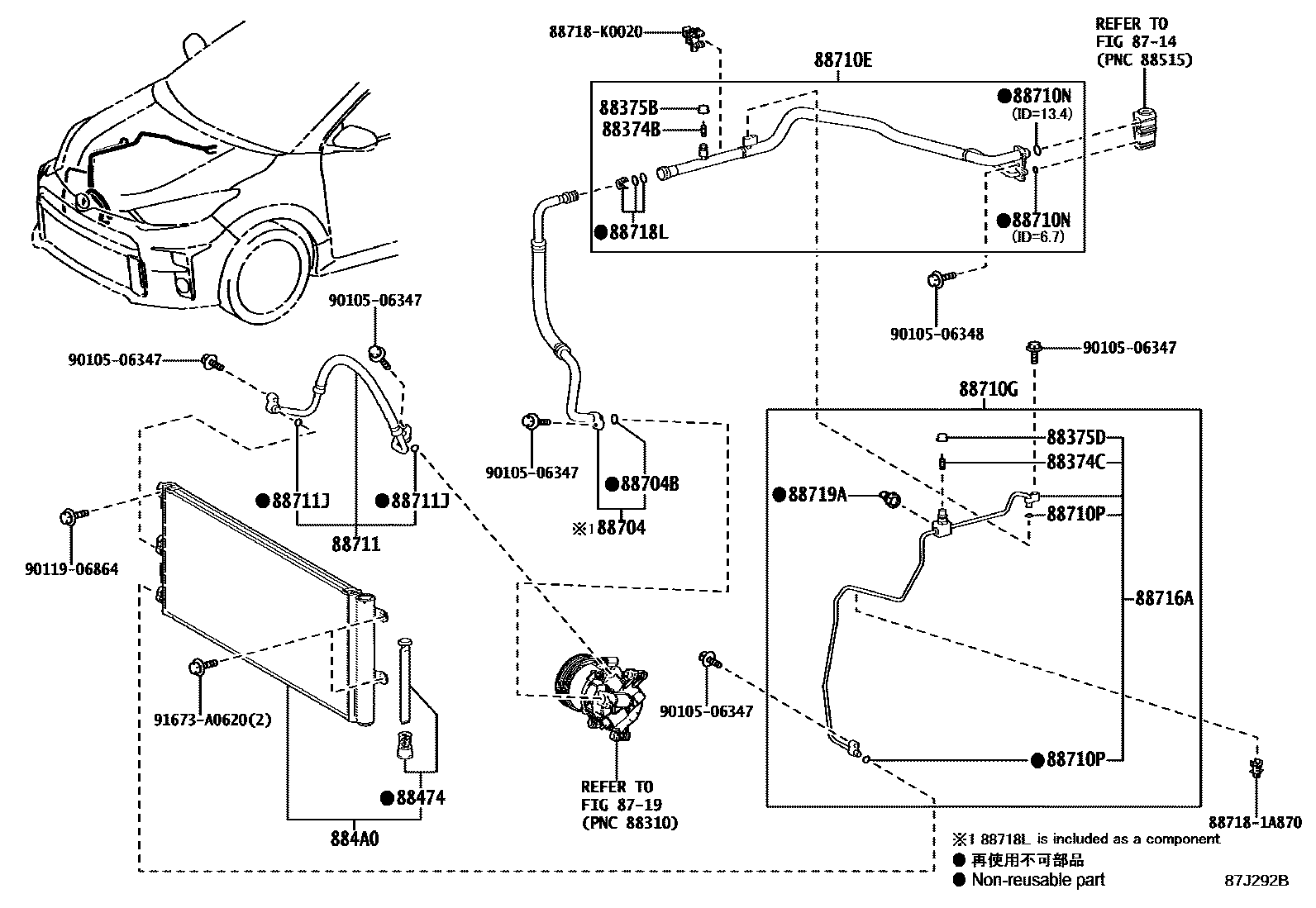

Toyota YARIS EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 · 88375-30310 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 · 88375-30320 |
| 88474 | cooler dryer | 88474-12010 |
| 884A0 | ENSEMBLE CONDENSEUR DE CLIMATISEUR | 884A0-52040 · 884A0-52050 |
| 88704 | Oil suction hose sub-assembly | 88704-52380 · 88704-52400 |
| 88704B | JOINT, TORIQUE(POUR FLEXIBLE ASPIRATION) | 90099-14121 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-52220 · 88710-52230 · 88710-52240 · 88710-52250 |
| 88710G | No. 2 air conditioning pipe and accessories assembly | 88710-52260 · 88710-52270 |
| 88710N | JOINT, TORIQUE, NO.1(ENS. TUYAU & ACCESSOIRE,CLIMATIS) | 90099-14119 · 90099-14121 |
| 88710P | JOINT, TORIQUE, NO.2(ENS. TUYAU & ACCESSOIRE,CLIMATIS) | 90099-14119 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-52580 |
| 88711J | JOINT TORIQUE, NO.1(POUR TUYAU DECHARGE) | 90099-14120 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-52A00 |
| 88718L | Pipe clamp | 88718-52280 |
| 88719A | Air conditioning pressure sensor | 88719-11010 |
