Toyota YARIS 车载电话和呼救装置 — Figure 8615

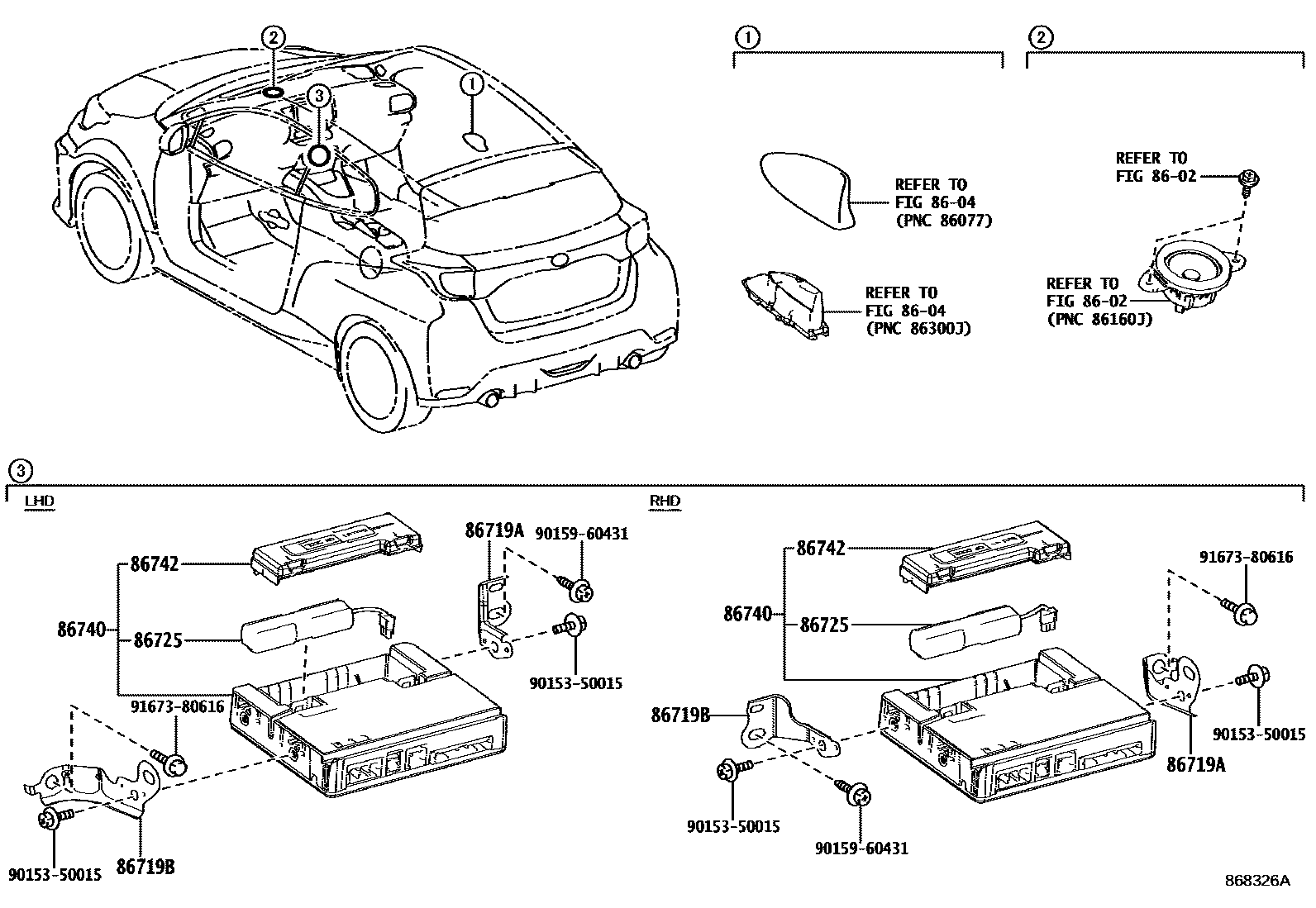

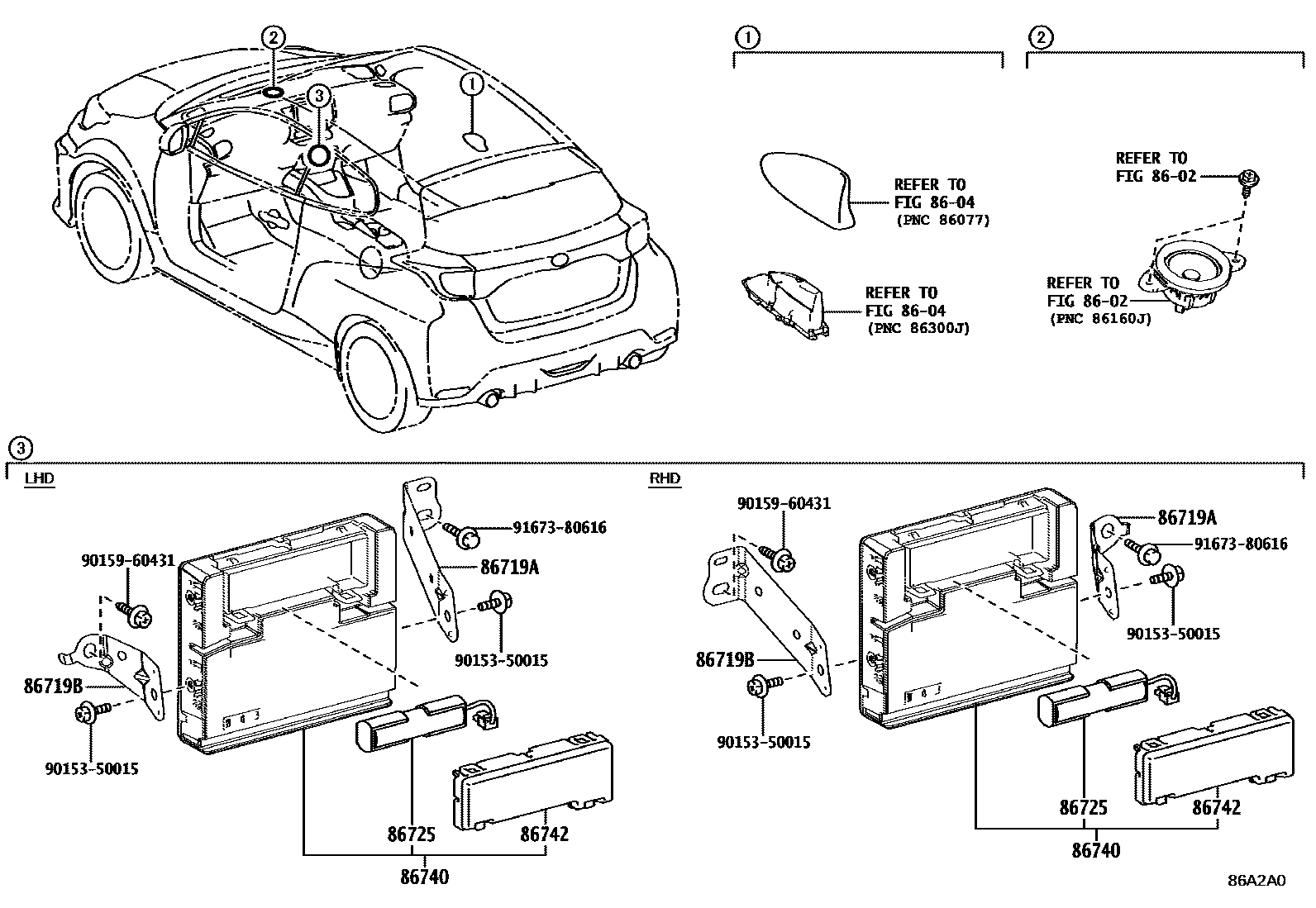

Toyota YARIS EPC diagram 8615, 车载电话和呼救装置, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86719A | Phone holder No. 1 | 86719-52140 · 86719-52170 · 86719-K0010 · 86719-K0050 |
| 86719B | Phone holder No. 2 | 86719-52150 · 86719-52160 · 86719-K0020 · 86719-K0060 |
| 86725 | mobile phone battery | 86725-26010 · 86725-78010 · 86725-78011 |
| 86740 | Telephone transceiver assembly | 86740-47260 · 86740-52060 · 86740-52061 · 86740-52080 · 86741-78150 · 86741-78160 |
| 86742 | transceiver cover | 86742-0D020 · 86742-26010 |
