Toyota YARIS 防盗装置 — Figure 8424

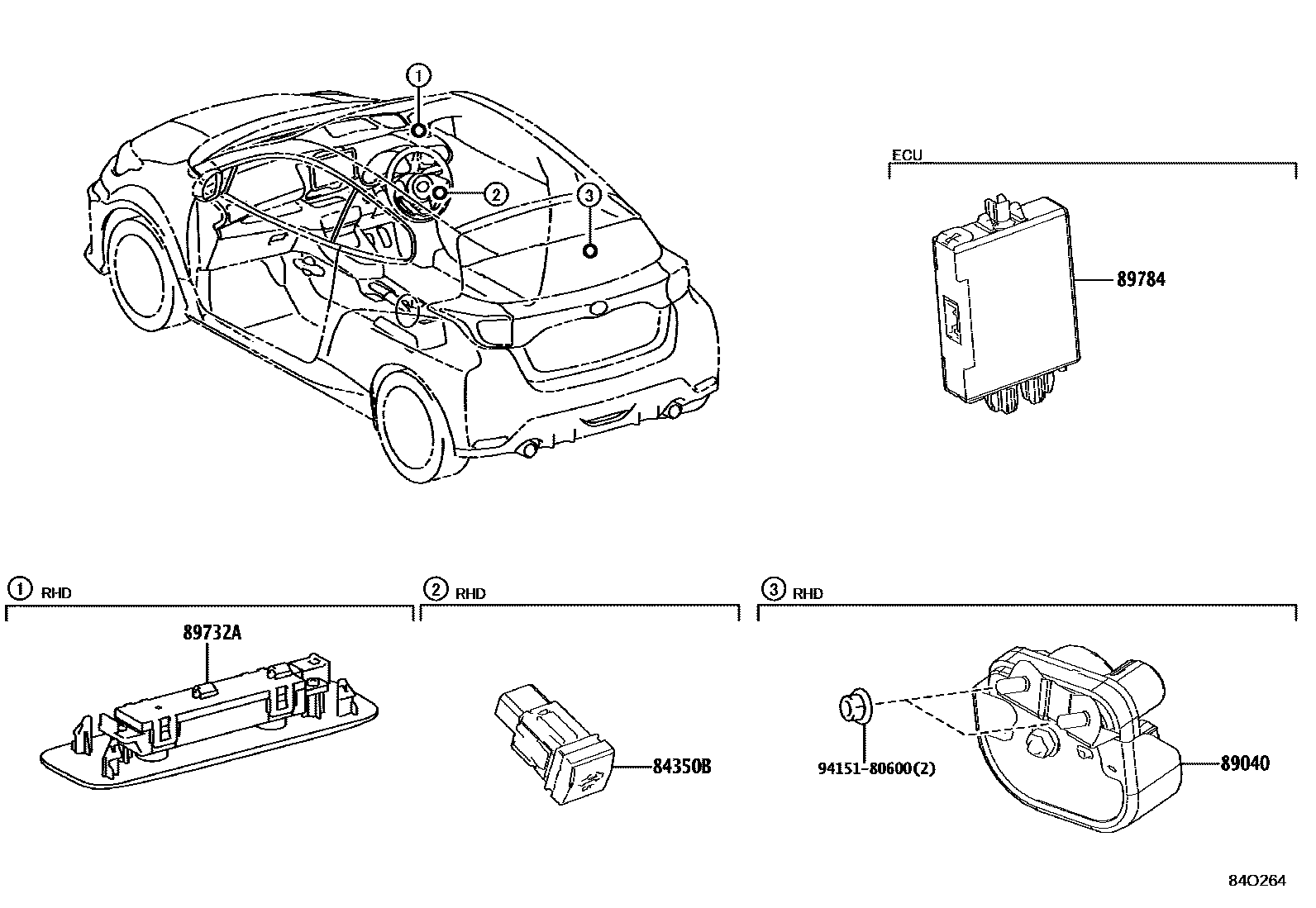

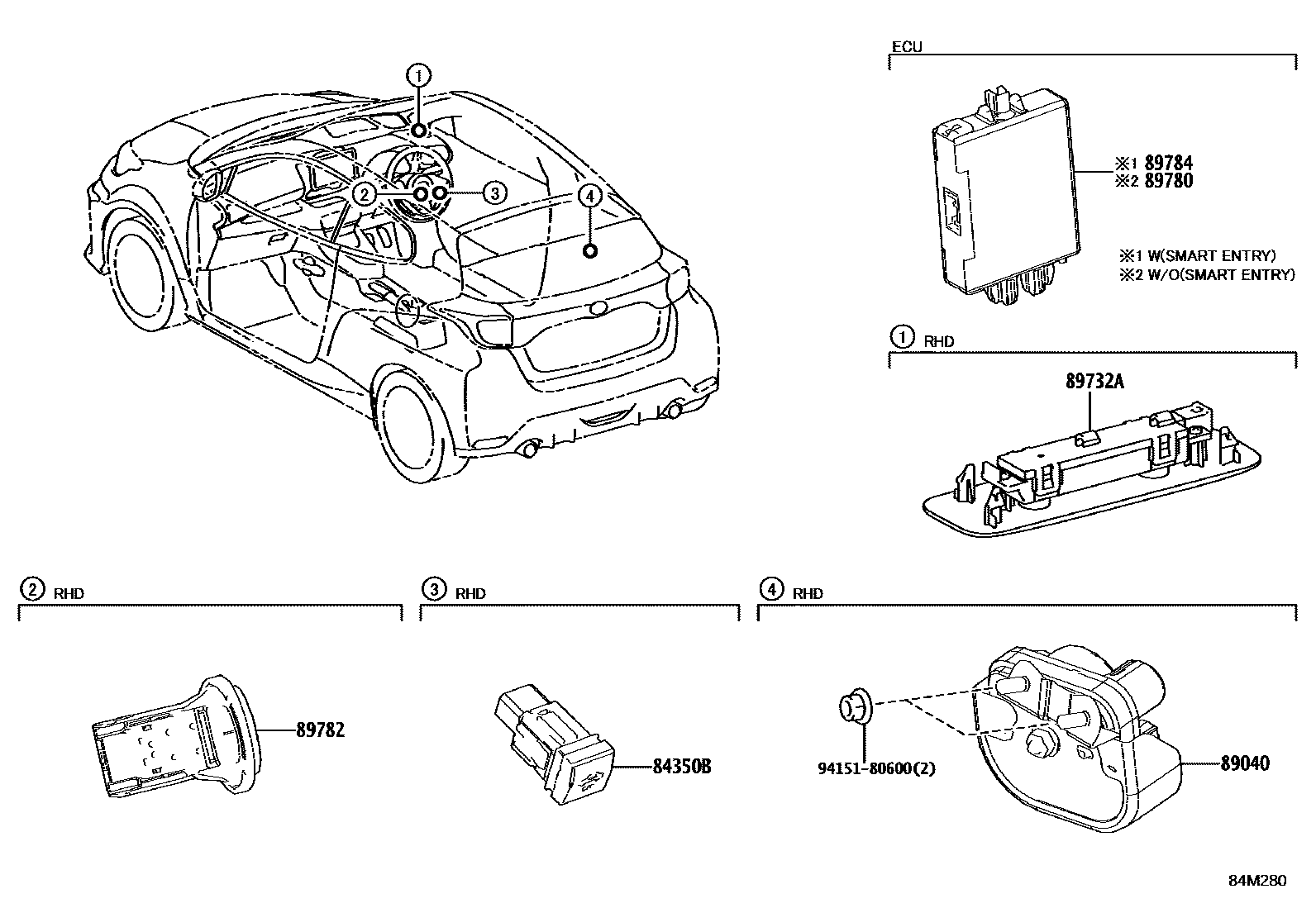

Toyota YARIS EPC diagram 8424, 防盗装置, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84350B | Anti-theft warning sensor switch assembly | 84350-52010 · 84350-52020 |
| 89040 | Anti-theft alarm assembly | 89040-52010 |
| 89780 | Transceiver key ECU assembly | 897H0-12020 |
| 89782 | transceiver key coil | 89782-12060 |
| 89784 | Shutdown code system ECU | 89784-48050 · 89784-48060 · 89784-K0021 |
