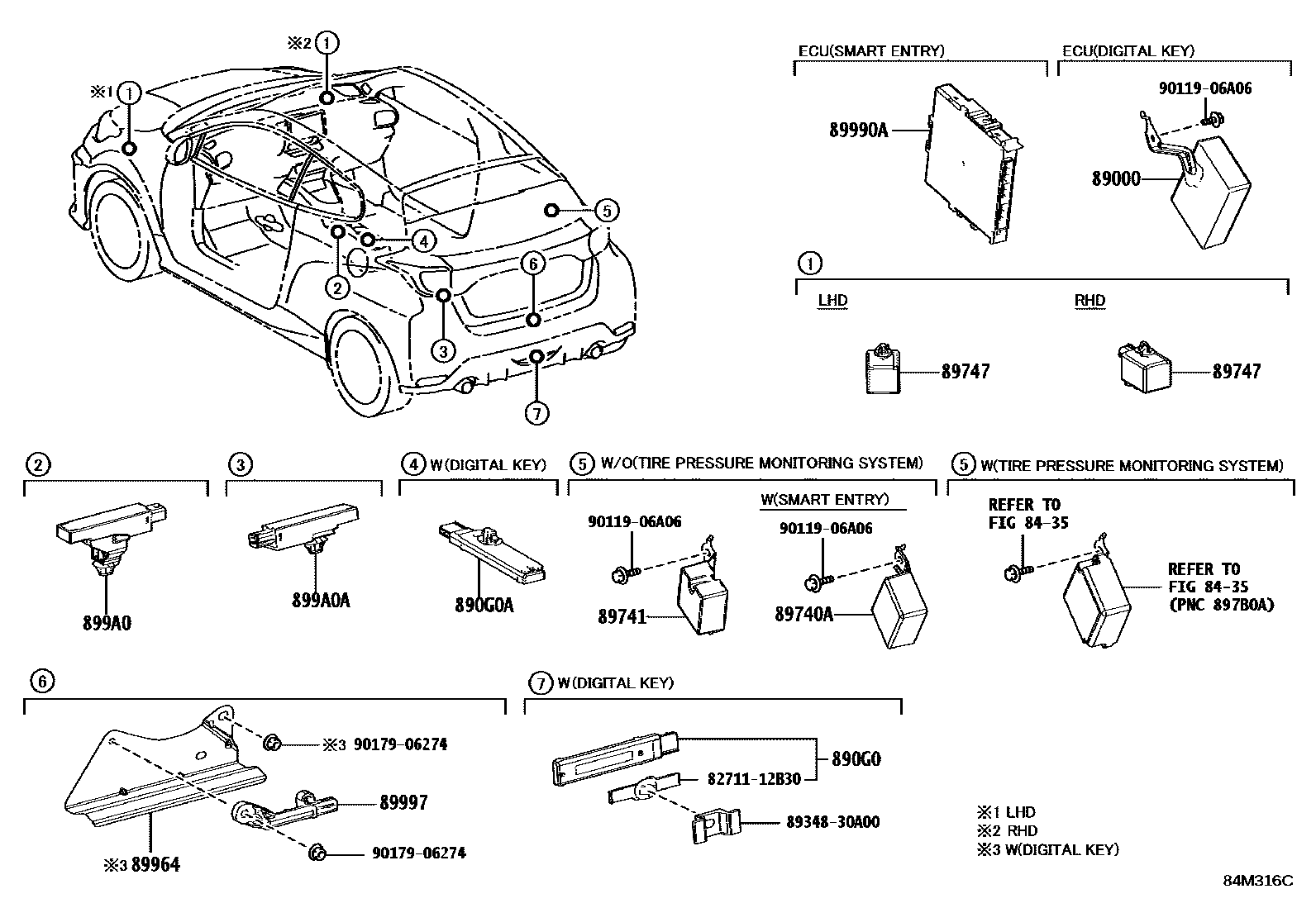

Toyota YARIS 遥控门锁 — Figure 8420
Toyota YARIS EPC diagram 8420, 遥控门锁, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89000 | ENS. ORDINATEUR, CLE NUMERIQUE | 89000-52040 · 89000-52170 |
| 890G0 | ENS. RECEPTEUR, CLE NUMERIQUE INT BLE | 890G0-42020 · 890G0-V1010 |
| 890G0A | ENS RECEPTEUR, CLE NUMERIQUE DE PORTE BLE, NO.2 | 890G0-76010 · 890G0-76020 |
| 89740A | ENSEMBLE RECEPTEUR, COMMANDE INTELLIGENTE DES PORTES | 89740-52550 |
| 89741 | door control receiver | 89741-52690 |
| 89747 | Remote door lock buzzer | 89747-30040 |
| 89964 | SUPPORT, ANTENNE CLE ELECTRIQUE | 89964-52010 |
| 89990A | Smart key ECU assembly | 899H0-52030 · 899H0-52040 · 899H0-52041 · 899H0-52042 · 899H0-52070 · 899H0-52071 · 899H0-52230 · 899H0-52350 · 899H0-52360 · 899H0-52370 |
| 89997 | electronic key antenna | 89997-30100 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-12080 · 899A0-52150 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-12130 |
