Toyota YARIS 仪表 — Figure 8301
Toyota YARIS EPC diagram 8301, 仪表, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

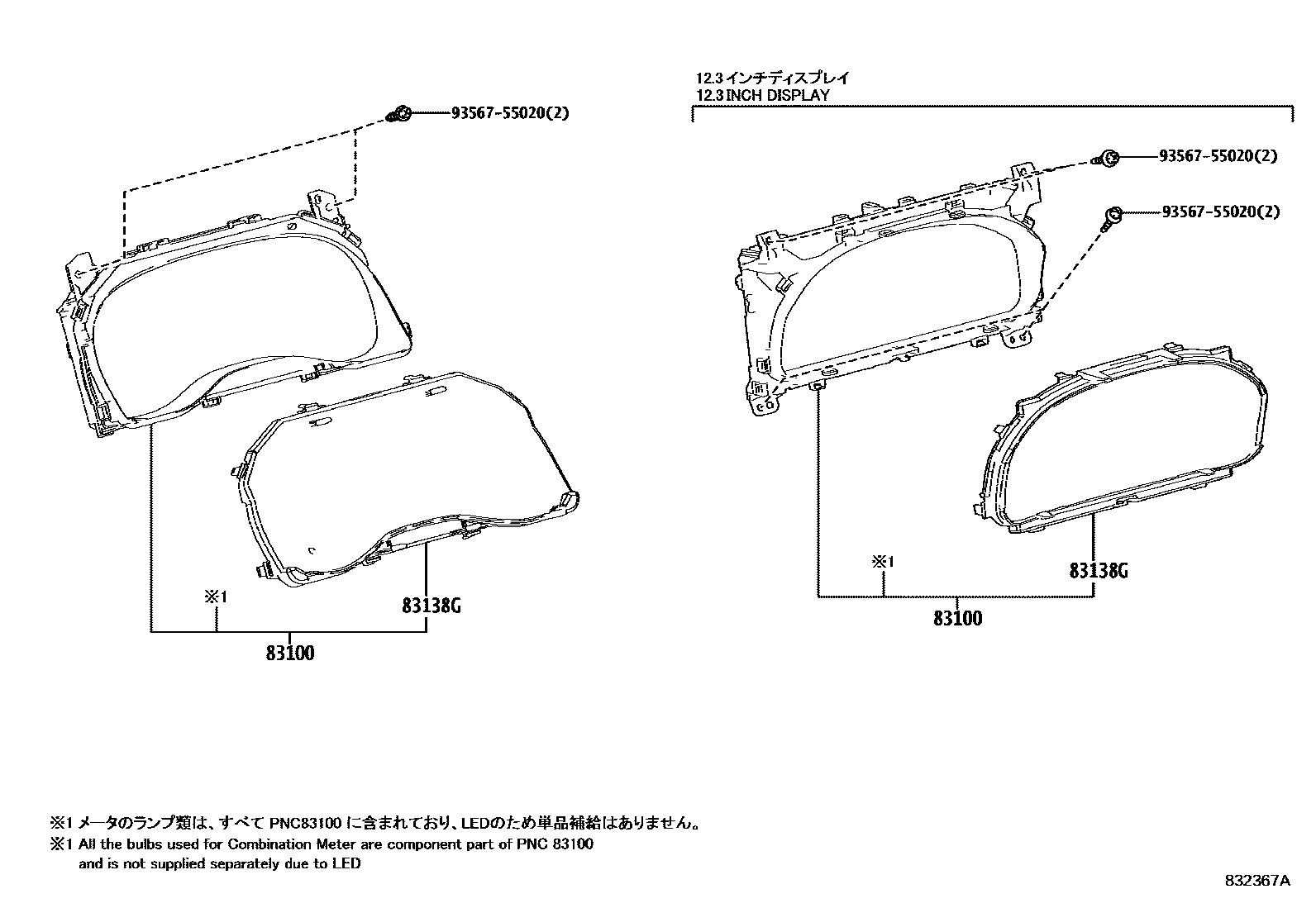

| 83100 | Combined instrument assembly | 83800-5D220 · 83800-5D221 · 83800-5D230 · 83800-5D231 · 83800-5D240 · 83800-5D241 · 83800-5D671 · 83800-5D672 · 83800-5D680 · 83800-5D681 · 83800-5D682 · 83800-5D683 · 83800-5D712 |

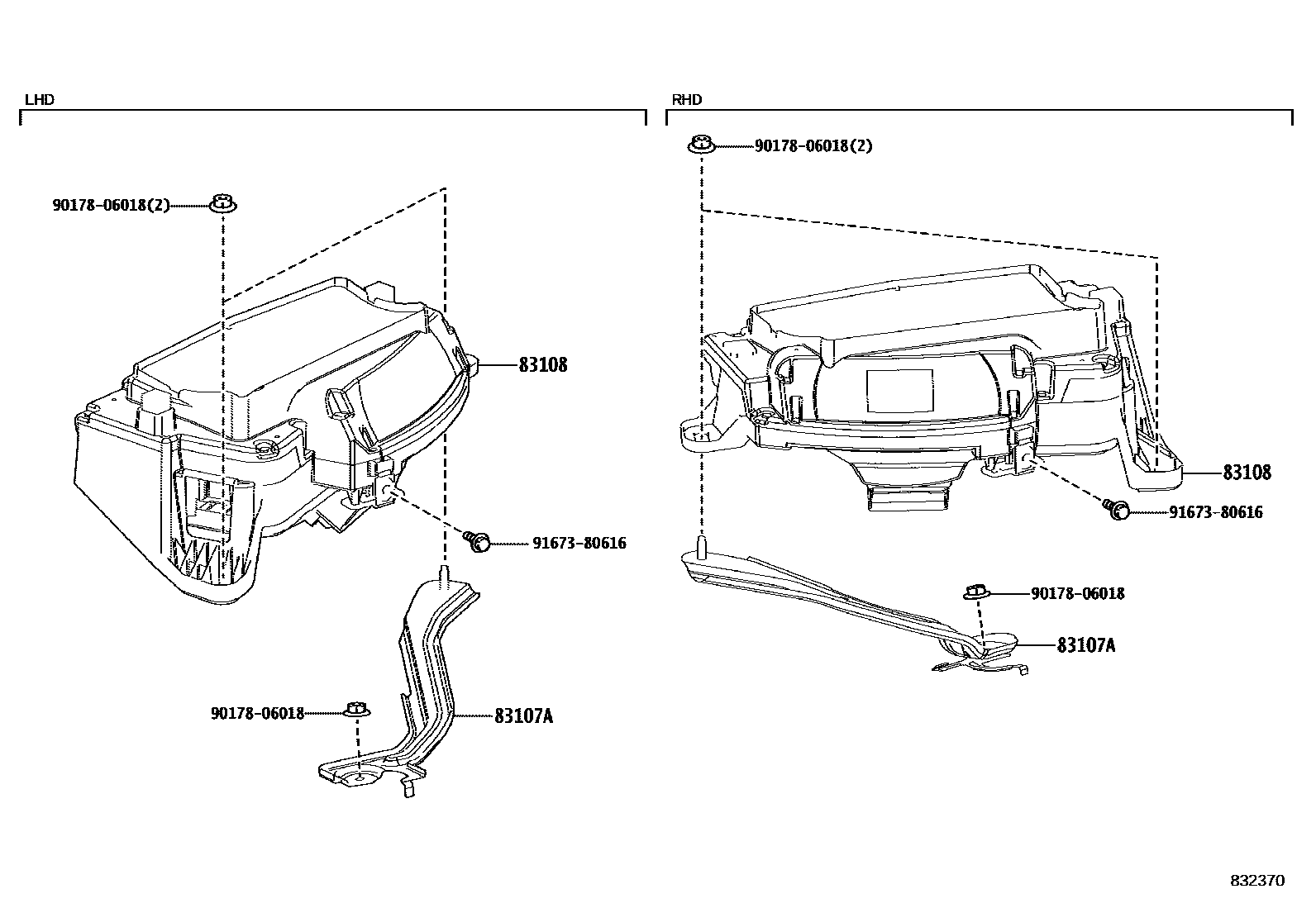

| 83107A | SOUS-ENS. SUPPORT, INSTR, NO.1 | 83107-K0011 · 83107-K0021 |
| 83108 | Instrument rearview mirror sub-assembly | 83108-K0010 · 83108-K0020 |
| 83138G | Instrument cluster glass | 83852-5D670 · 83852-K0020 |
