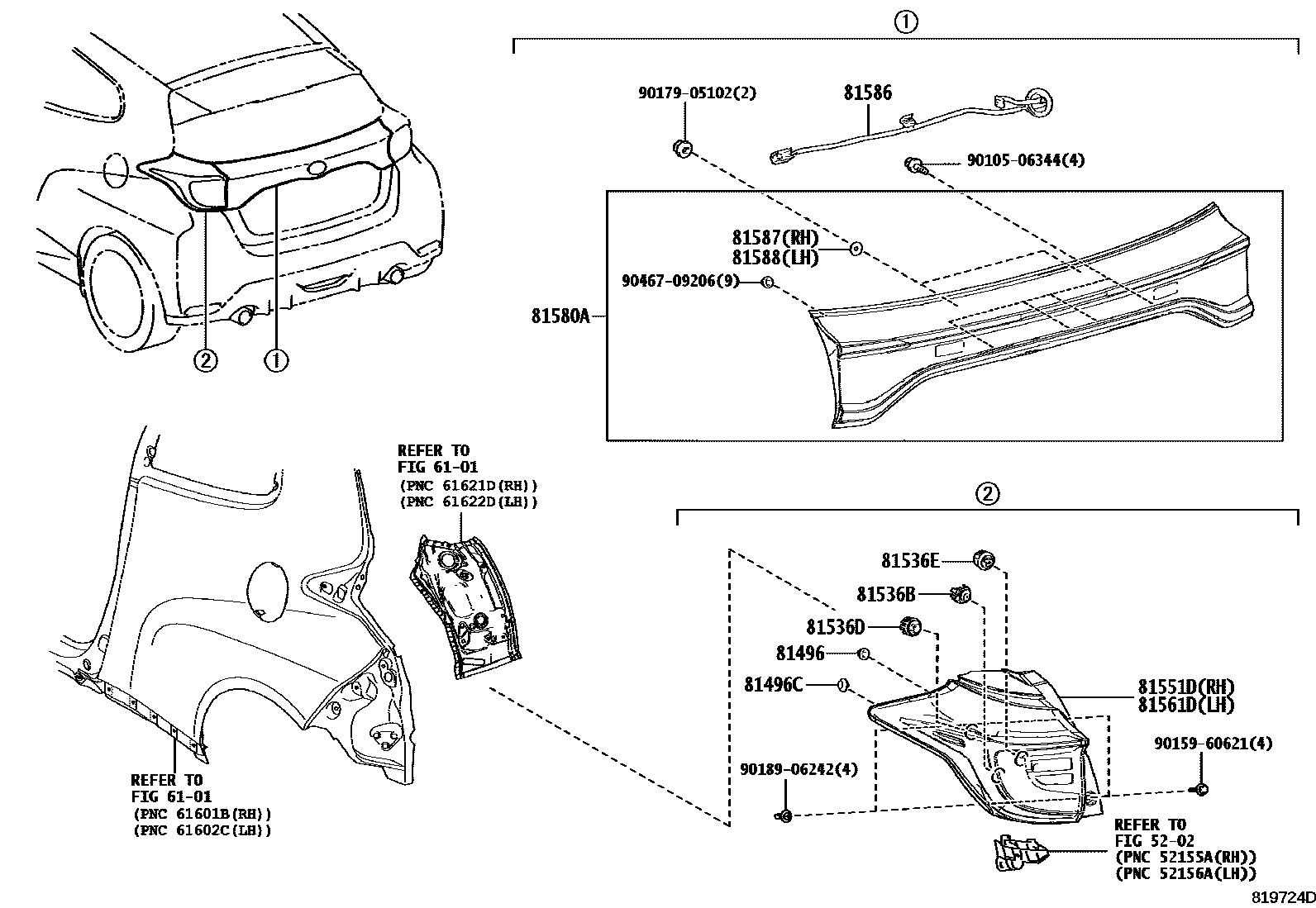

Toyota YARIS 后组合灯 — Figure 8111
Toyota YARIS EPC diagram 8111, 后组合灯, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-52020 |
| 81496C | No. 2 rear combination light guide block | 81496-60010 |
| 81536B | LED, CLIGNOTANT ARRIERE | 81536-12D30 · 81965-48030 |
| 81536D | LED, FEU ARR | 8158A-0D610 · 81965-70010 |
| 81536E | LED, FEU STOP | 81536-15120 · 81965-40010 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-52F90 · 81551-K0020 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-52B40 · 81561-K0020 |
| 81580A | Rear light assembly | 81580-52500 · 81580-52510 |
| 81586 | Rear light wire | 81935-52040 |
| 81587 | Right rear light protective cover | 81558-24040 |
| 81588 | Left rear light protective cover | 81558-24040 |
