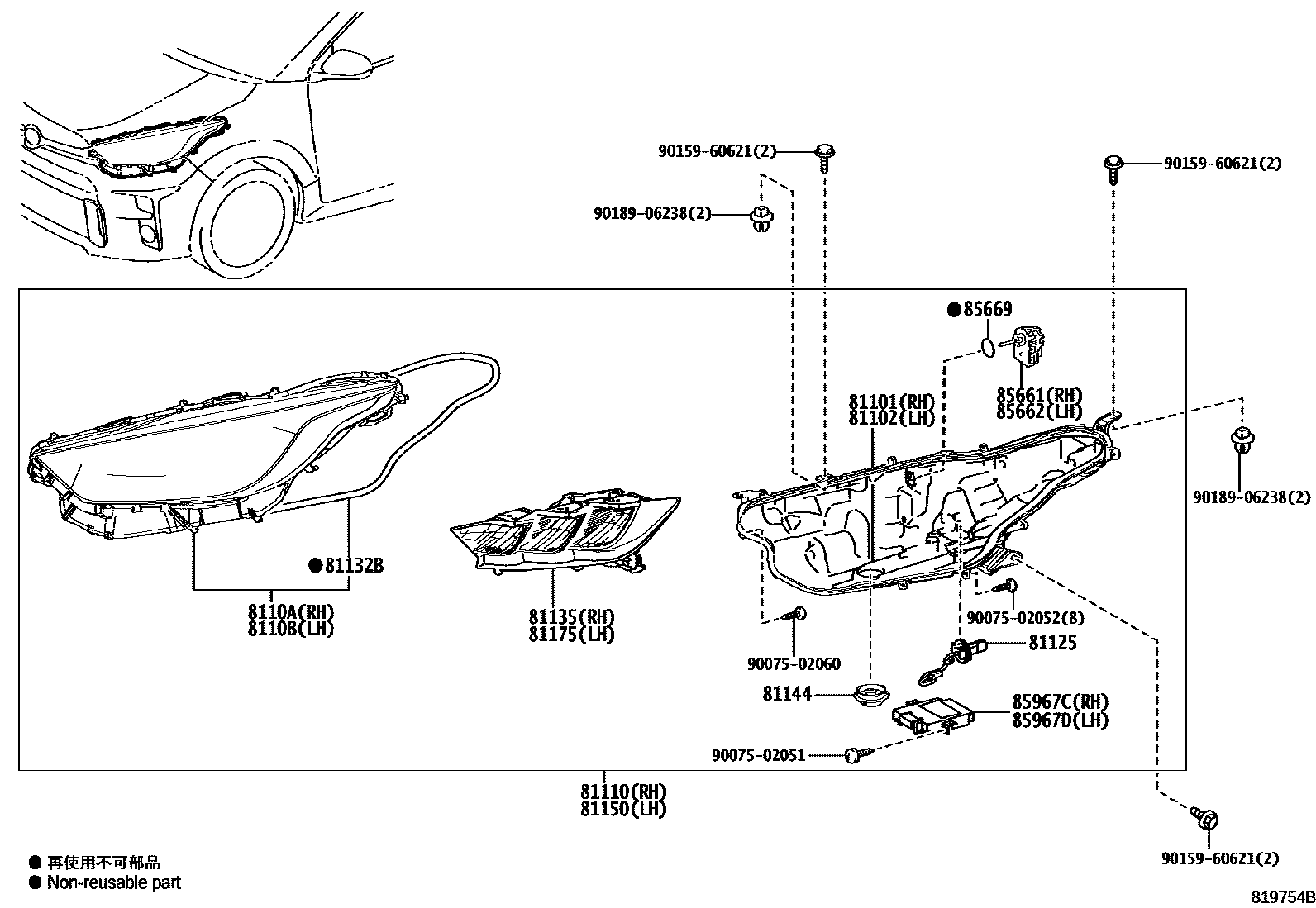

Toyota YARIS Headlamp — Figure 8101
Toyota YARIS EPC diagram 8101, Headlamp, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81101 | SS-ENS. LOGEMENT, PHARE, MD | 8111B-52N60 · 8111B-52N61 · 8111B-K0040 |
| 81102 | SS-ENS. LOGEMENT, PHARE, MG | 8115B-52N60 · 8115B-52N61 · 8115B-K0040 |
| 8110A | SOUS-ENS. OPTIQUE, PHARE, MD | 8110A-K0040 |
| 8110B | SOUS-ENS. OPTIQUE, PHARE, MG | 8110B-K0040 |
| 81110 | Right headlight assembly | 81110-52N60 · 81110-52N61 · 81110-52N62 · 81110-K0040 · 81110-K0041 |
| 81125 | headlight wire | 81125-K0040 |
| 81132B | Headlight cover gasket | 81132-50590 |
| 81135 | Right headlight assembly | 81130-52N60 · 81130-K0030 |
| 81144 | No. 1 headlight cover | 90075-66016 |
| 81150 | Left headlight assembly | 81150-52N60 · 81150-52N61 · 81150-52N62 · 81150-K0040 · 81150-K0041 |
| 81175 | Left headlight assembly | 81170-52N60 · 81170-K0030 |
| 85661 | Right headlight beam height adjustment motor | 85661-12010 |
| 85662 | Left headlight beam height adjustment motor | 85661-12010 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-99120 |
| 85967C | ORDINATEUR, LED COMMANDE ECLAIRAGE, MD | 8596A-K0020 · 8596A-K0021 |
| 85967D | ORDINATEUR, LED COMMANDE ECLAIRAGE, MG | 8596A-K0010 · 8596A-K0011 |
