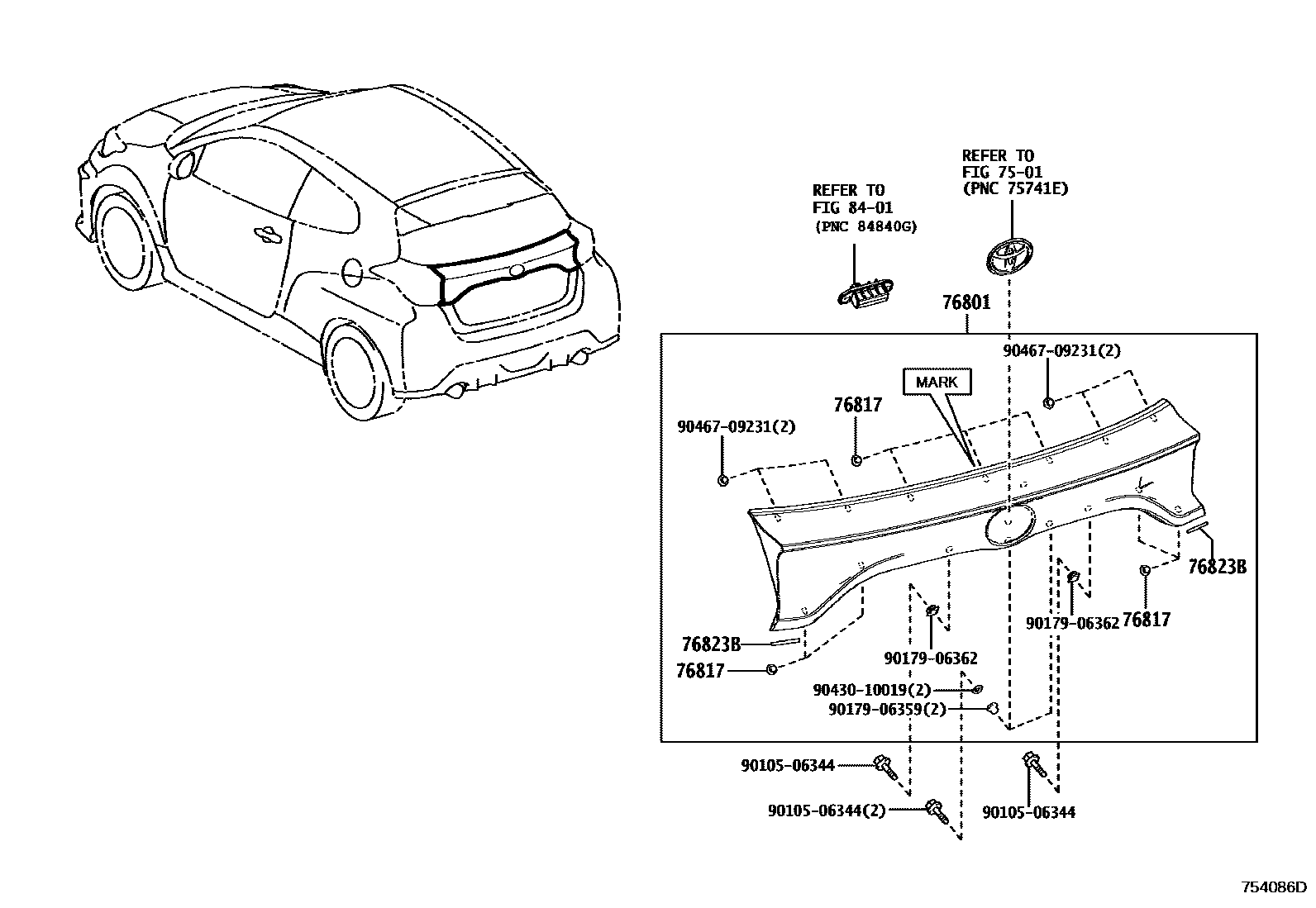

Toyota YARIS 后防护条 — Figure 7504
Toyota YARIS EPC diagram 7504, 后防护条, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76801 | Rear door exterior decorative strip sub-assembly | 76801-52540 · 76801-52541 |
| 76817 | Rear door exterior decorative strip clip | 90467-09206 |
| 76823B | PROTECTION, GARNITURE PORTE DU COMPARTIMENT BAGAGES, EXT | 76824-42030 |
