Toyota YARIS 警示铭牌(车外和车内) — Figure 7403
Toyota YARIS EPC diagram 7403, 警示铭牌(车外和车内), with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

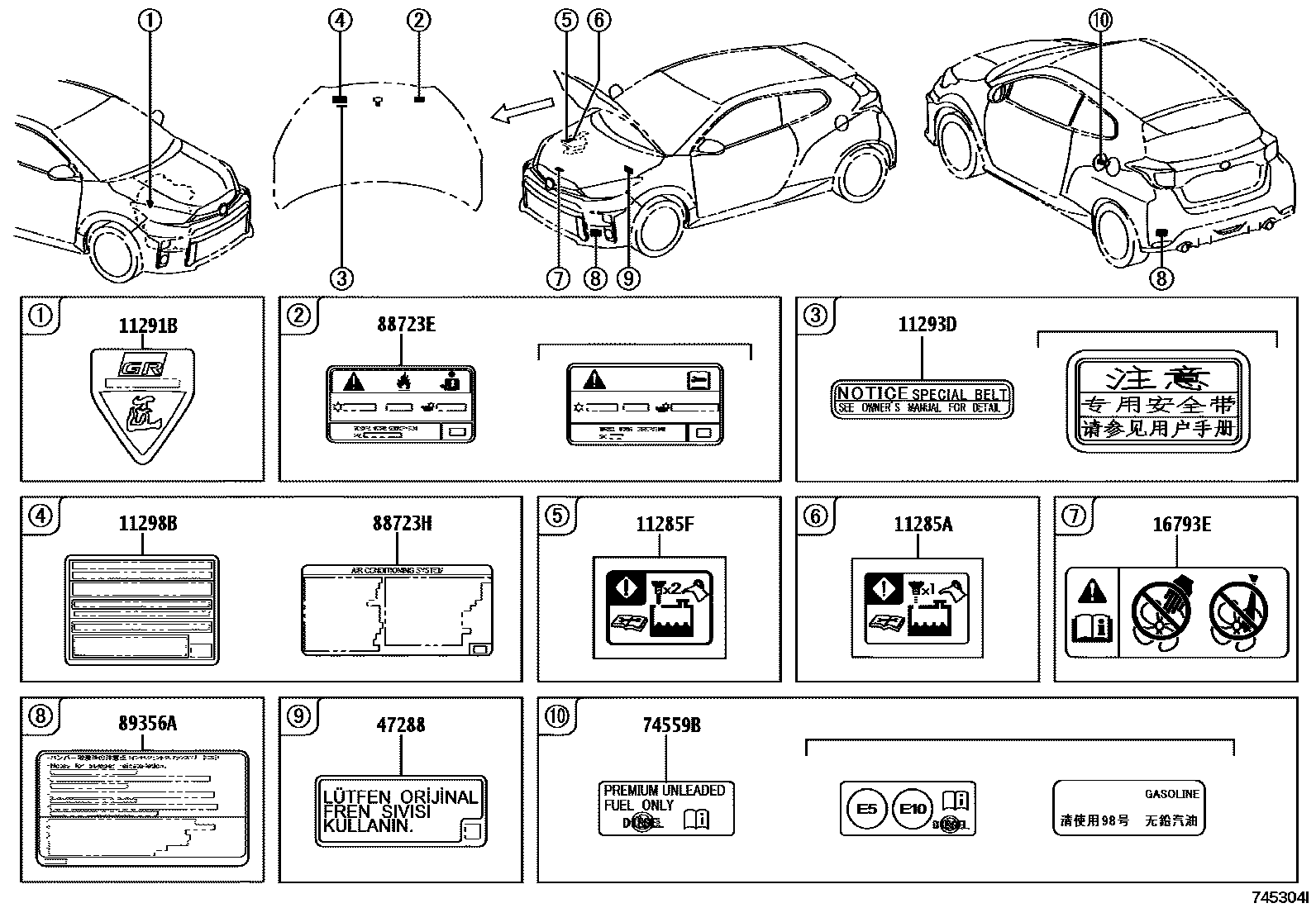

| 11285A | Coolant System Caution Labels | 11285-11020 |
| 11285F | ETIQUETTE, AVERT.SUR LE SYSTEME DE LIQUIDE DE REFROID. | 11285-11030 |
| 11291B | PLAQUE INDICATRICE DE MOTEUR | 11291-18030 · 11291-18050 |
| 11293D | engine warning label | 11295-33010 · 11295-36040 |
| 11298B | Emission Control Information Label | 11298-18010 |
| 16793E | ETIQUETTE, PRECAUTION VENT REFROIDISSEMENT | 16793-36030 |

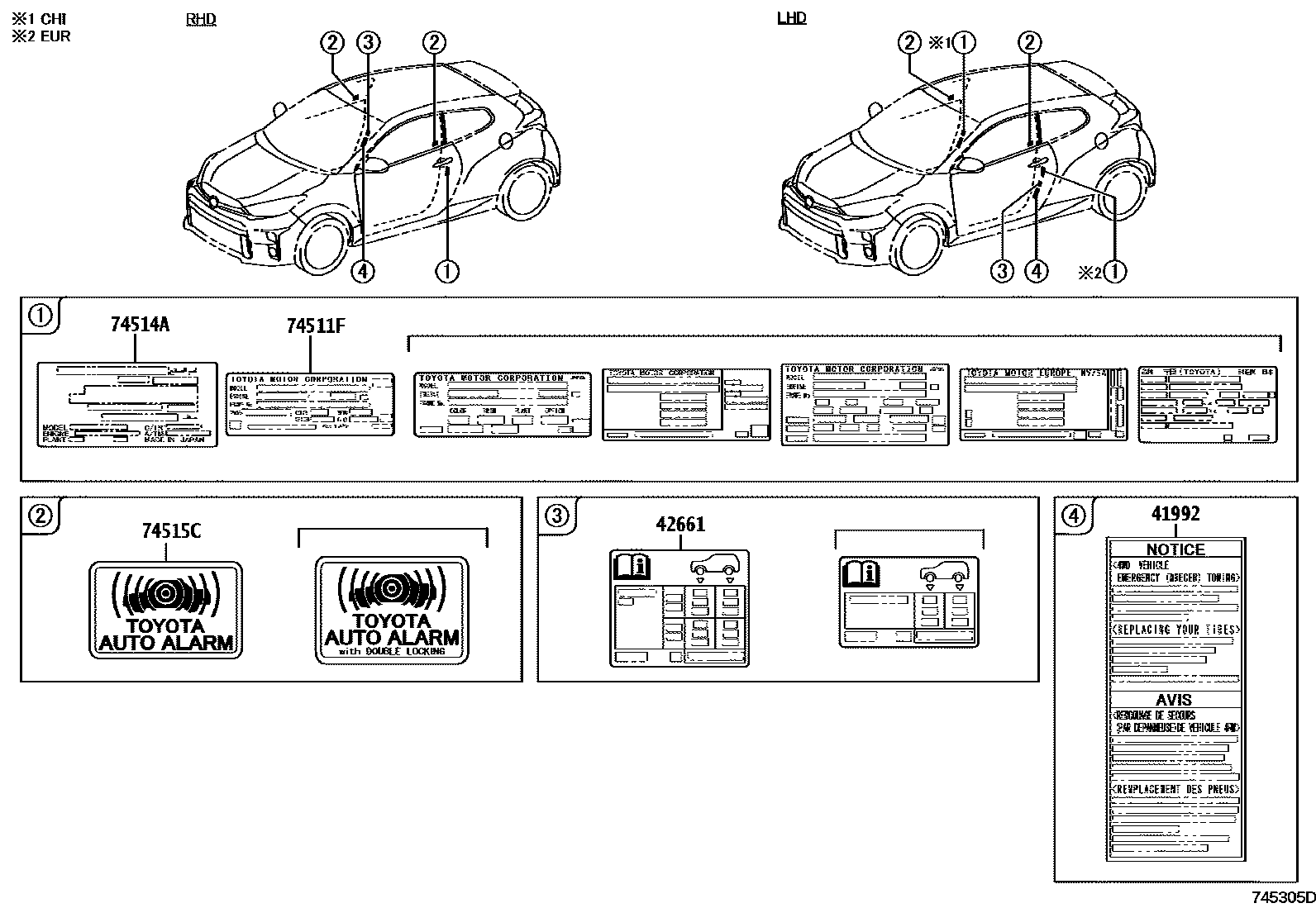

| 41992 | Differential attention label | 41992-48020 |

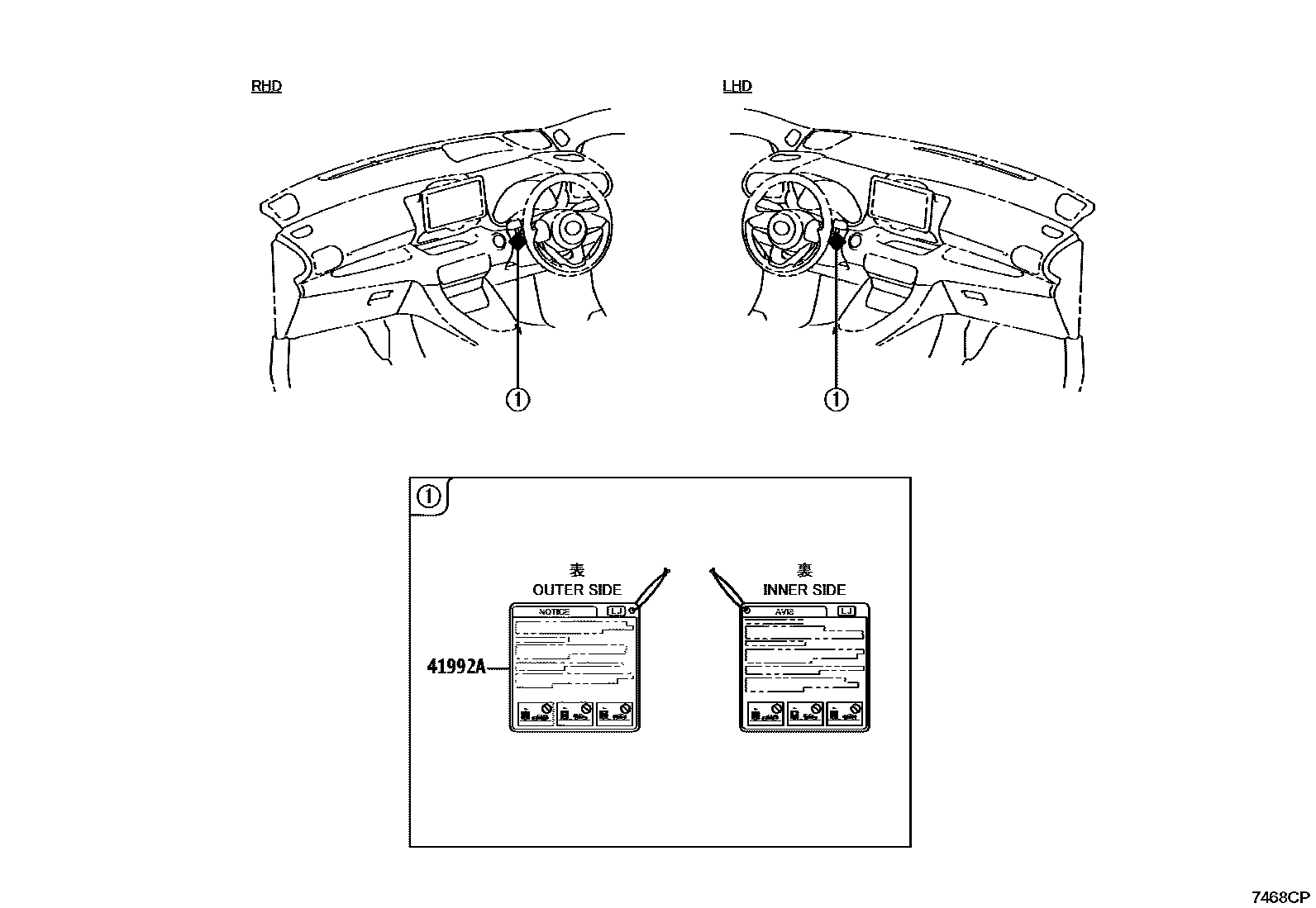

| 41992A | ETIQUETTE, AVERTISSEMENT DIFFERENTIEL, NO.2 | 41992-42030 |
| 42661 | ETIQUETTE, INFORMATIONS PRESSION PNEUS | 42661-52J90 · 42661-52L20 |
| 47288 | Brake Fluid Caution Label | 47288-64010 |
| 74511F | Nameplate (laser identification label) | 74511-2B300 · 74511-33033 · 74511-33070 · 74511-48020 · 74511-48030 · 74511-60480 |
| 74515C | Anti-theft warning information label | 74515-33020 · 74515-42010 |
| 74559B | fuel information label | 74559-11030 · 74559-52030 · 74559-60030 |
| 88723E | Cooler maintenance warning label | 88723-52210 · 88723-52220 · 88723-52240 |
| 88723H | Cooler maintenance warning label | 88733-52160 |
| 89356A | ETIQUETTE RENSEIGNEMENTS GABARIT | 89356-47020 |
