Toyota YARIS battery holder — Figure 7402

Toyota YARIS EPC diagram 7402, battery holder, with 2 images and 7 PNC and OE references.

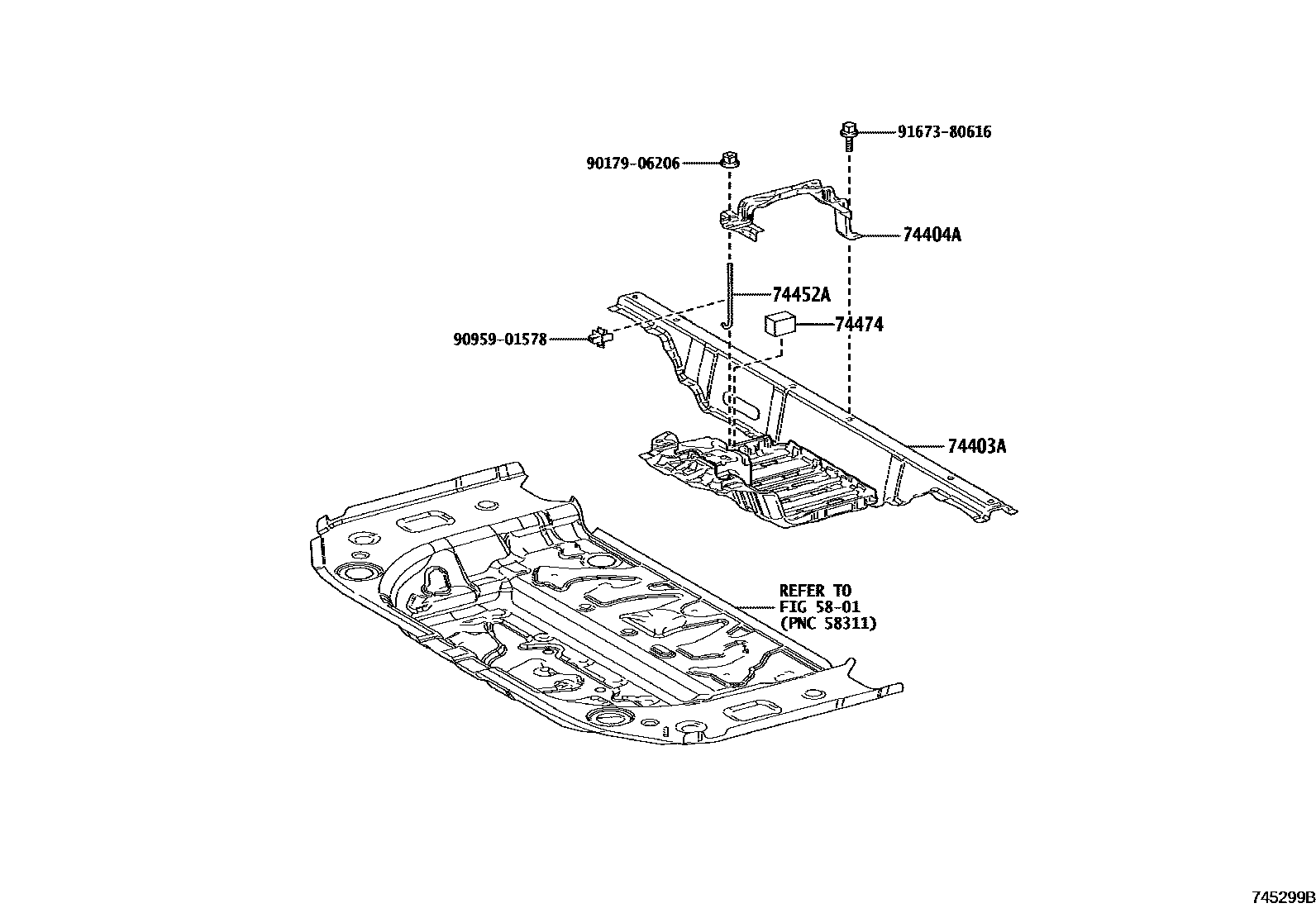

Toyota YARIS battery holder EPC diagram — 745299B
battery holder — 745299B (202008 – 999999)

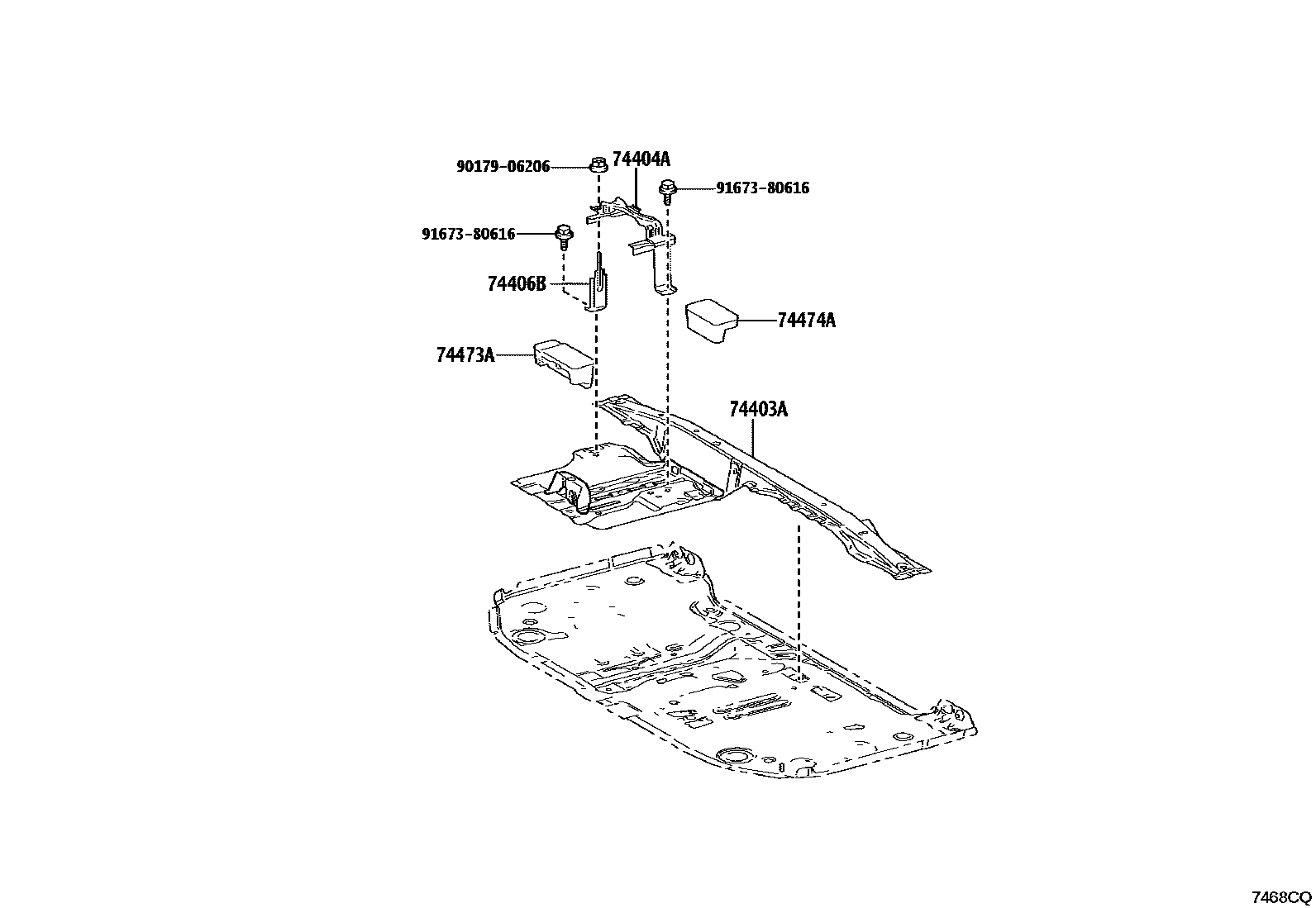

Toyota YARIS battery holder EPC diagram — 7468CQ
battery holder — 7468CQ (202410 – 999999)

PNC and OE references

PNCPart nameOE numbers
74403ABattery bracket sub-assembly74403-12030 · 74403-52060
74404ABattery clip sub-assembly74404-12580 · 74404-52160
74406BSOUS-ENSEMBLE PINCE, RETENUE DE LA BATTERIE74406-12030
74452ANo. 2 battery clamp bolt74452-30010
74473ANo. 1 battery separator58218-52050
74474Battery gasket52462-30130
74474ANo. 2 battery separator58218-52060
