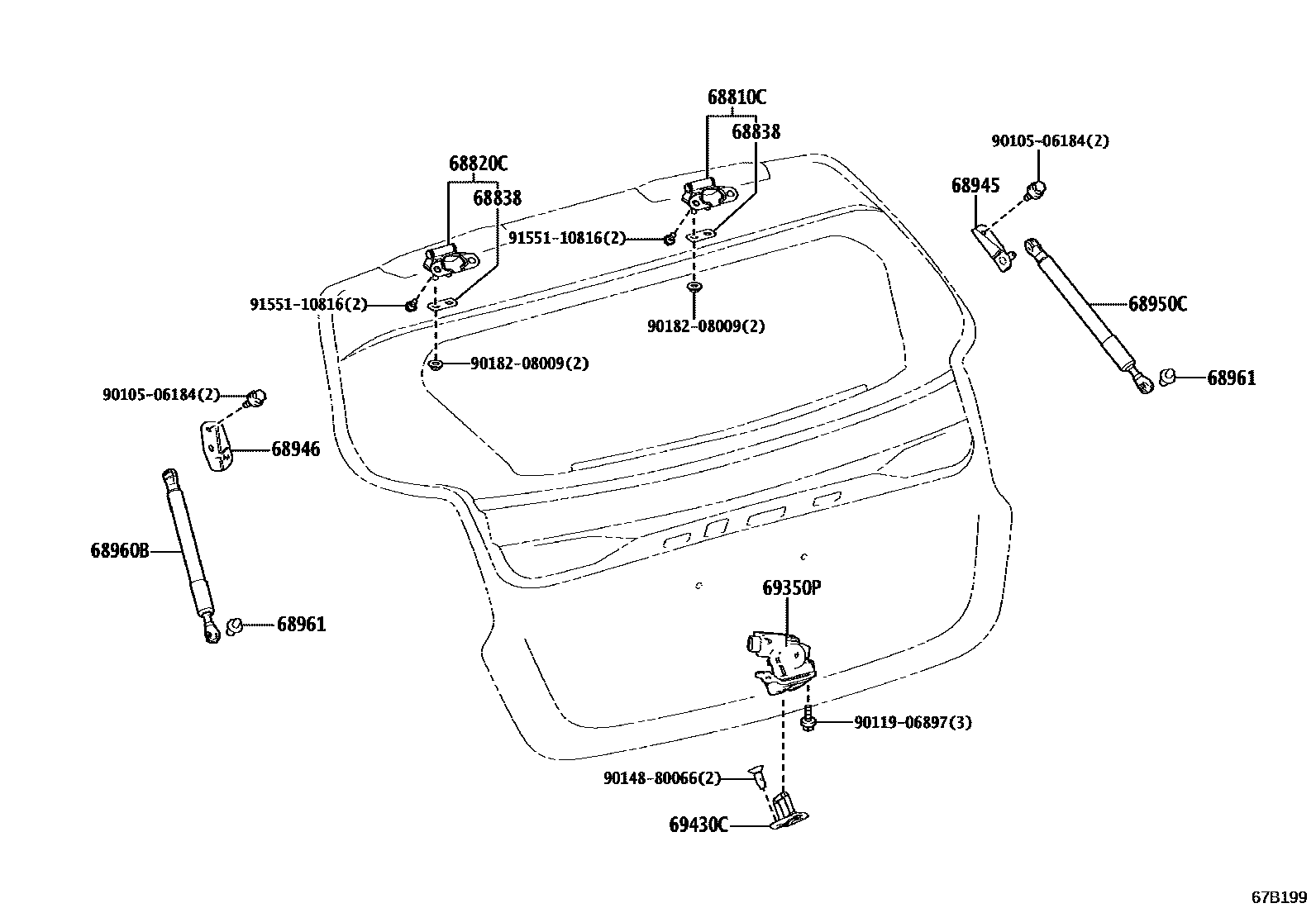

Toyota YARIS 背门锁和背门把手 — Figure 6709
Toyota YARIS EPC diagram 6709, 背门锁和背门把手, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68810C | Back door right hinge assembly | 68810-42110 |
| 68820C | Back door left hinge assembly | 68810-42110 |
| 68838 | Back door hinge No. 1 gasket | 68838-47010 · 68838-47020 · 68838-47030 |
| 68945 | Back door right damping stay upper bracket | 68946-13081 |
| 68946 | Rear door left damping strut upper bracket | 68945-13081 |
| 68950C | Back door right support rod assembly | 68950-0WD20 · 68950-0WP60 |
| 68960B | Back door left support rod assembly | 68960-0WD20 · 68960-0WP60 |
| 68961 | Rear door support rod bolts | 68961-52020 |
| 69350P | ENS. VERR, HAYON, AV COMM PLAFONNIER | 69350-42090 |
| 69430C | Back door lock assembly | 69430-48030 |
