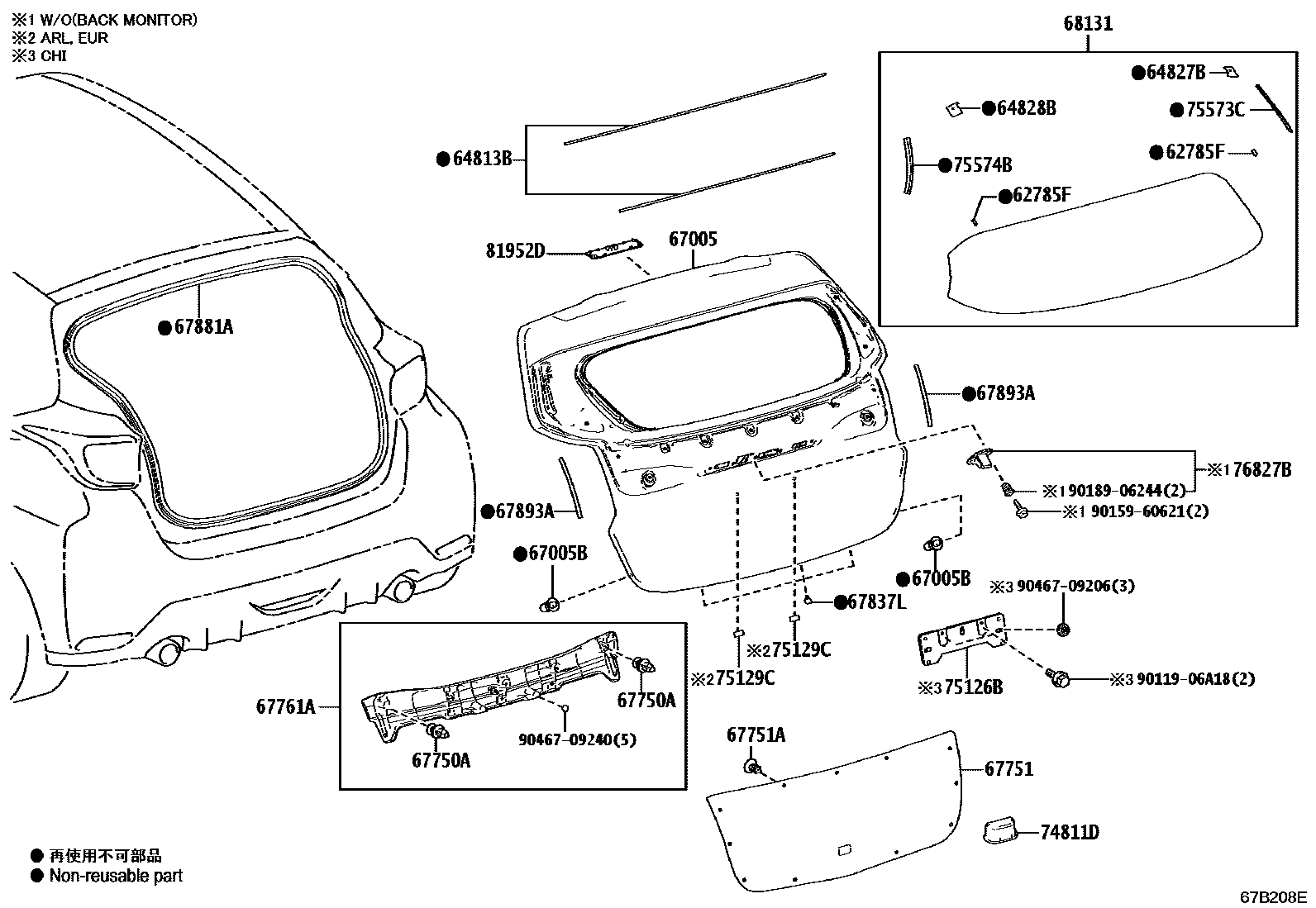

Toyota YARIS 背门板和背门玻璃 — Figure 6708
Toyota YARIS EPC diagram 6708, 背门板和背门玻璃, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62785F | Back door glass spacer | 62785-12050 |
| 64813B | Back window glass adhesive seal | 56117-50140 |
| 64827B | Catch on the right side of the back window glass | 64827-52110 |
| 64828B | Catch on the left side of the back window glass | 64828-52110 |
| 67005 | Rear door panel sub-assembly | 67005-52G30 · 67005-52G41 · 67005-52K20 |
| 67005B | Cushion pad (for back door panel) | 90541-09142 |
| 67750A | Clip (for rear door trim panel) | 62217-13010 |
| 67837L | Door dust seal retainer | 67837-52040 |
| 67881A | Back door seal | 67881-52250 |
| 67893A | Back door panel No. 1 protective piece | 67893-52110 |
| 68131 | back door glass | 68105-52780 · 68105-52781 · 68105-52790 · 68105-52880 |
| 75126B | PLAQUE, SUPPORT PLAQUE IMMATRICULATION ARR | 75126-52010 |
| 75129C | rear license plate cushion | 75129-30010 |
| 75573C | Protective strip for rear window | 75573-52260 |
| 75574B | Rear window left outer protective strip | 75574-52110 |
| 76827B | RETENUE NO.2 DOUBLURE HAYON | 76827-K0010 |
| 81952D | rear light cover | 81952-52030 |
