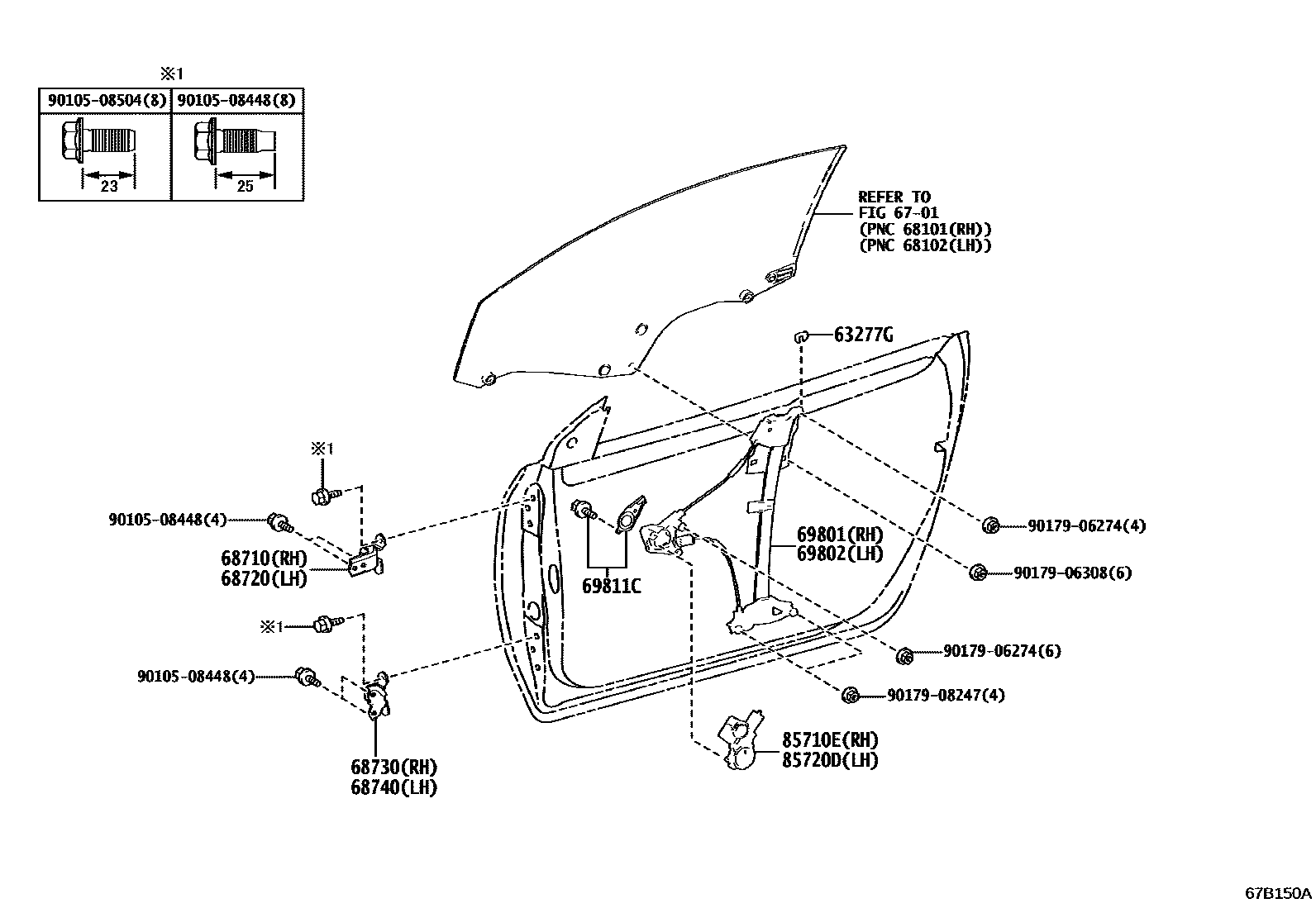

Toyota YARIS 前门车窗升降器和合页 — Figure 6704
Toyota YARIS EPC diagram 6704, 前门车窗升降器和合页, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63277G | Window lift gasket | 63277-30060 |
| 68710 | Right front door upper hinge assembly | 68710-52040 |
| 68720 | Left front door upper hinge assembly | 68720-52030 |
| 68730 | Right front door lower hinge assembly | 68730-52040 |
| 68740 | Left front door lower hinge assembly | 68740-52030 |
| 69801 | Right front door window lifter sub-assembly | 69801-52170 |
| 69802 | Left front door window lifter sub-assembly | 69802-52160 |
| 69811C | Front door power window lift base plate | 69813-24020 · 69814-24020 |
| 85710E | Right power window lift motor assembly | 85710-52330 · 85710-52400 |
| 85720D | Left electric window lift motor assembly | 85720-52300 · 85720-52370 |
