Toyota YARIS 底板和底板装饰罩 — Figure 6404

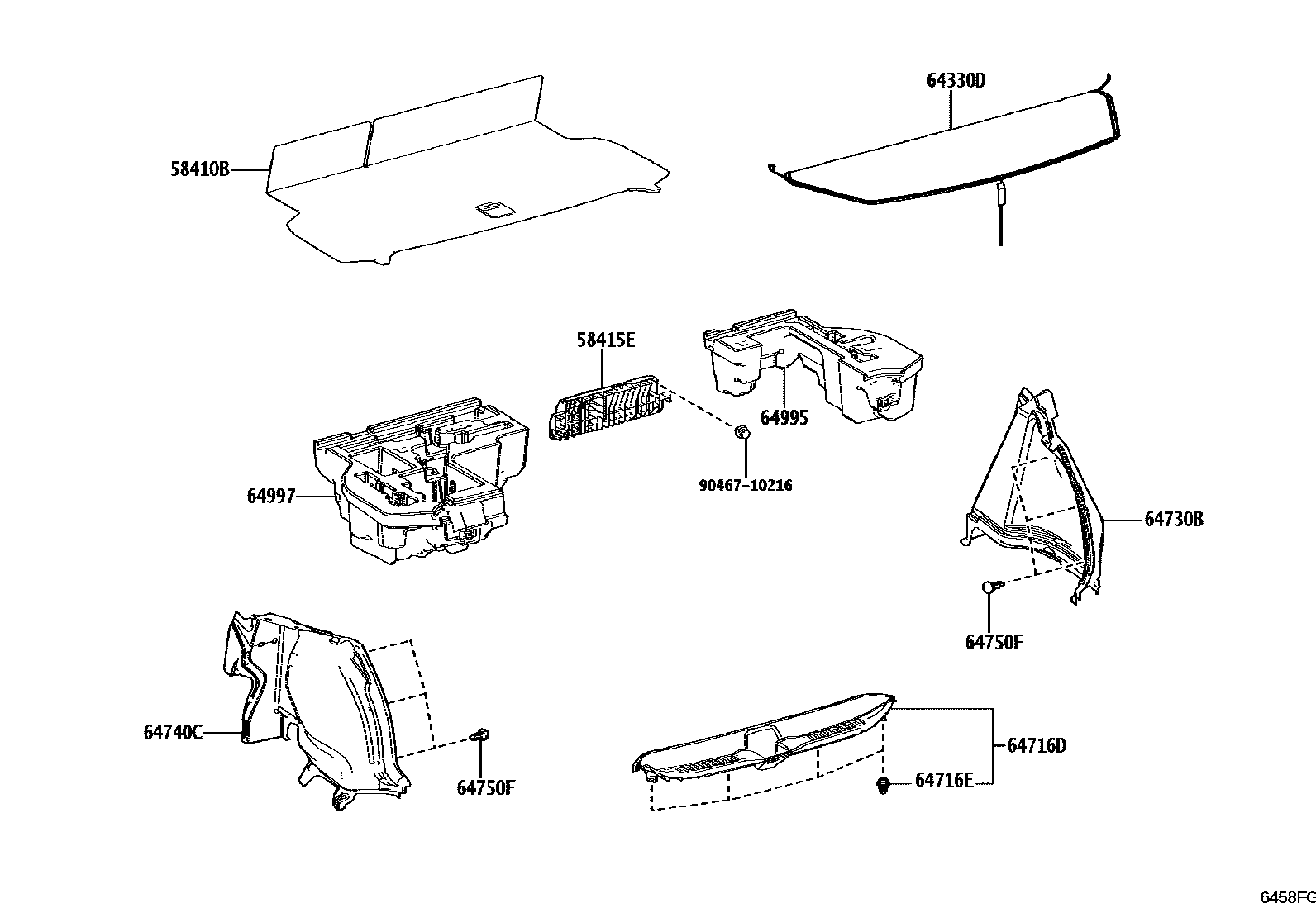

Toyota YARIS EPC diagram 6404, 底板和底板装饰罩, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58415E | Rear floor panel No. 1 | 58415-52160 |
| 64330D | Glove box decorative panel assembly | 64330-52430 |
| 64716E | Clip (for rear floor decorative cover) | 90467-10161 |
| 64995 | Bottom right floor box | 64995-52120 · 64995-52160 |
| 64997 | Bottom left floor box | 64997-52150 · 64997-52190 |
