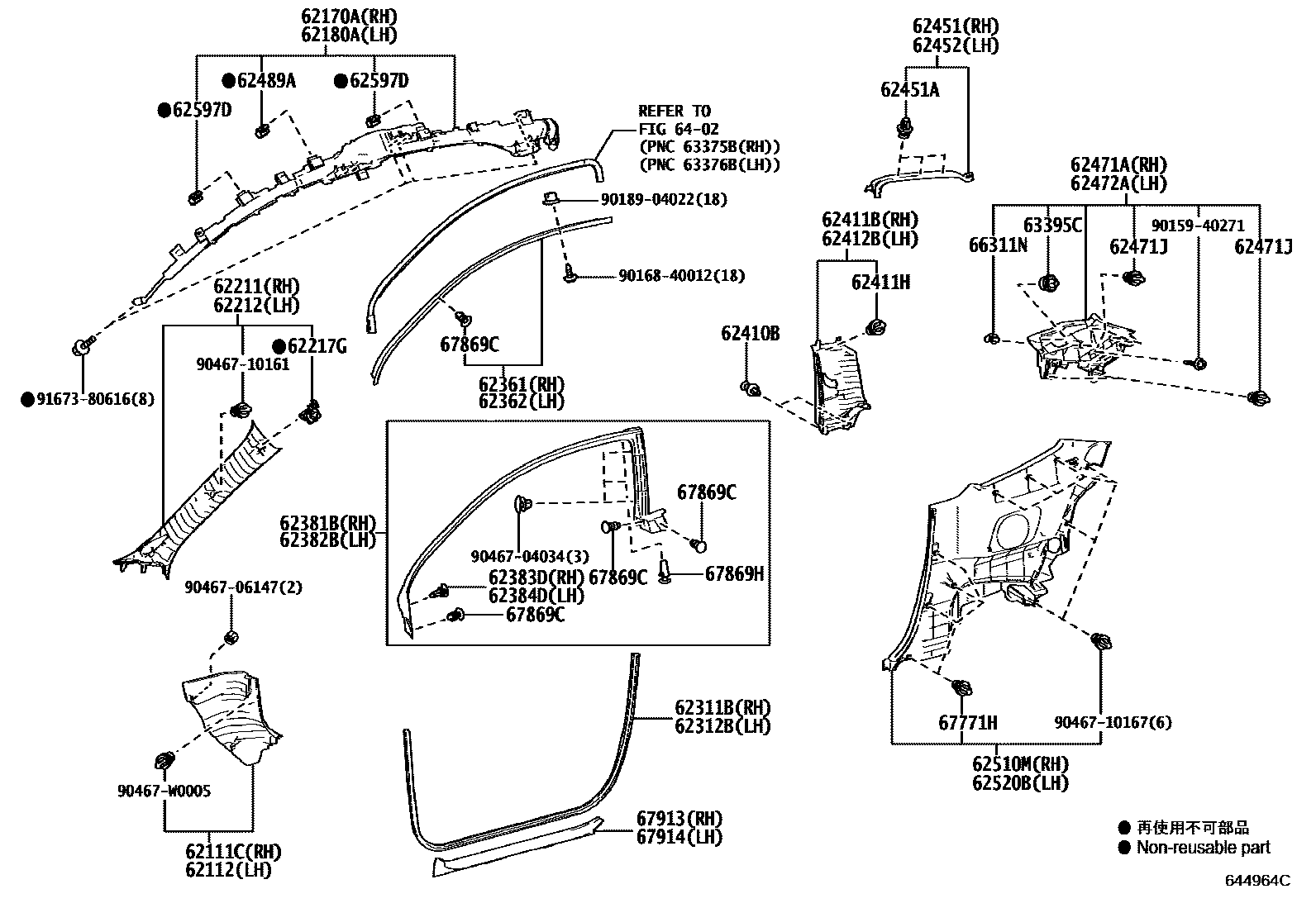

Toyota YARIS 内饰板和车门防水胶条 — Figure 6401
Toyota YARIS EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62170A | Right curtain air bag assembly | 62170-52180 · 62170-52181 |
| 62180A | Left curtain air bag assembly | 62180-52180 · 62180-52181 |
| 62217G | Front pillar decorative plate clip | 62217-42050 |
| 62311B | Right front door opening waterproof tape | 62311-52260 |
| 62312B | Left front door opening waterproof tape | 62311-52260 |
| 62361 | Right front roof rail sealing strip fastener | 62361-52010 |
| 62362 | Left front roof rail sealing strip fastener | 62362-52010 |
| 62381B | Roof right side rail seal strip | 62381-52050 |
| 62382B | Roof left side rail seal strip | 62382-52050 |
| 62383D | Roof right side rail fixing | 67867-50050 |
| 62384D | Roof left side rail fixing | 67867-50050 |
| 62410B | clip | 90467-10216 |
| 62411H | Right front side window upper frame | 90467-10167 |
| 62451A | Side decorative parts clip | 90467-10167 |
| 62471J | Clips (for roof side trim panels) | 67771-28150 |
| 62489A | Roof side interior panel clips | 62489-28010 |
| 62597D | clip | 90467-18017 |
| 63395C | Clips (for roof side interior panels) | 63395-12150 |
| 67771H | door trim panel fixings | 67771-28150 |
| 67869C | Roof rail sealing strip clip | 67869-20030 |
| 67869H | Roof rail sealing strip clip | 67869-20070 |
