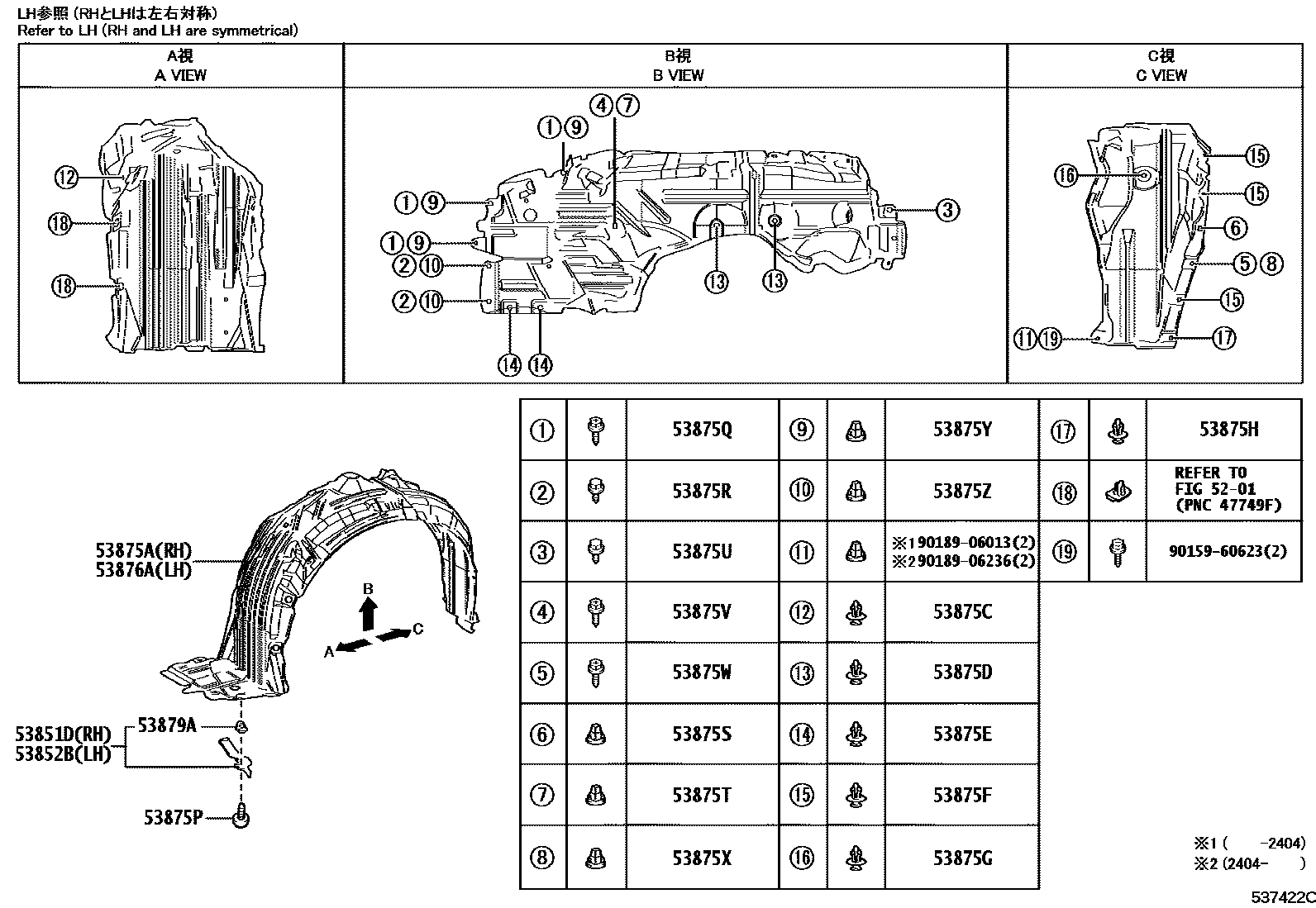

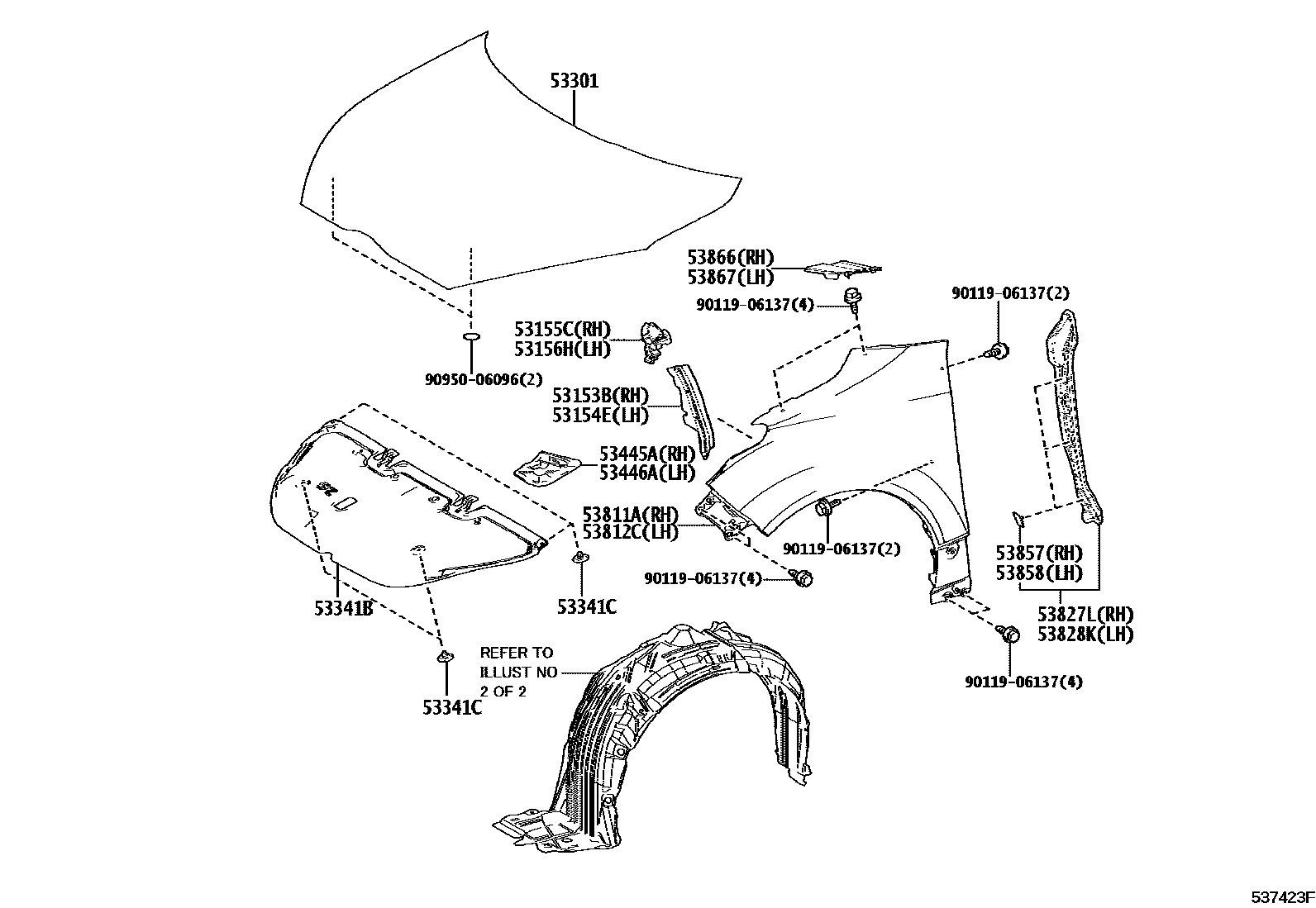

Toyota YARIS 发动机盖和前翼子板 — Figure 5302
Toyota YARIS EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53153B | front side deflector | 53153-52040 |
| 53154E | GUIDE AERATION LATERALE AVANT NO. 2 | 53154-52040 |
| 53155C | Radiator grille seal No. 1 | 53155-52080 · 53155-52330 |
| 53156H | JOINT ETANCHEITE NO.2 CALANDRE RADIATEUR | 53156-52040 · 53156-52100 |
| 53301 | Engine cover sub-assembly | 53301-52420 |
| 53341B | engine cover gasket | 53341-K0050 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 |
| 53445A | COUVERCLE DROIT DE CHARNIERE DE CAPOT | 53445-52030 |
| 53446A | COUVERCLE GAUCHE DE CHARNIERE DE CAPOT | 53446-52030 |
| 53811A | right front fender | 53811-52600 |
| 53812C | left front fender | 53812-52600 |
| 53827L | Right front fender side panel protector | 53827-52210 |
| 53828K | Left front fender side panel protector | 53828-52220 |
| 53851D | Right front fender outer panel pad | 53851-K0010 |
| 53852B | Left front fender exterior panel pad | 53852-K0010 |
| 53857 | Right front fender external panel fixing piece | 53857-12010 |
| 53858 | Left front fender external panel fixing piece | 53857-12010 |
| 53866 | Right front fender to cowl side seal | 53866-K0010 |
| 53867 | Left front fender to cowl side seal | 53867-K0010 |
| 53875A | Right front fender lining | 53875-52520 · 53875-52530 · 53875-52540 · 53875-52640 |
| 53875C | Front fender lining clip | 90467-07214 |
| 53875D | AGRAFE DE FIXATION DOUBLURE AILE AVANT, NO.2 | 90467-07214 |
| 53875E | AGRAFE DE FIXATION DOUBLURE AILE AVANT, NO.3 | 90467-07214 |
| 53875F | AGRAFE DE FIXATION DOUBLURE AILE AVANT, NO.4 | 90467-07214 |
| 53875G | AGRAFE DE FIXATION DOUBLURE AILE AVANT, NO.5 | 90467-07214 |
| 53875H | AGRAFE DE FIXATION DOUBLURE AILE AVANT, NO.6 | 90467-07214 |
| 53875P | VIS, NO.1 | 90159-60477 |
| 53875Q | VIS, NO.2 | 90159-60477 |
| 53875R | VIS, NO.3 | 90159-60477 |
| 53875S | OEILLET, NO.1 | 90189-06013 · 90189-06236 |
| 53875T | OEILLET, NO.2 | 90189-06230 · 90189-06236 |
| 53875U | VIS, NO.4 | 90159-60623 |
| 53875V | VIS, NO.5 | 90159-60623 |
| 53875W | VIS, NO.6 | 90159-60623 |
| 53875X | OEILLET, NO.3 | 90189-06230 |
| 53875Y | OEILLET, NO.4 | 90189-06237 |
| 53875Z | OEILLET, NO.5 | 90189-06237 |
| 53876A | Left front fender lining | 53876-52520 · 53876-52530 · 53876-52540 · 53876-52640 |
| 53879A | Front fender lining fixing parts | 53879-17020 |
