Toyota YARIS 后保险杠及附件 — Figure 5202

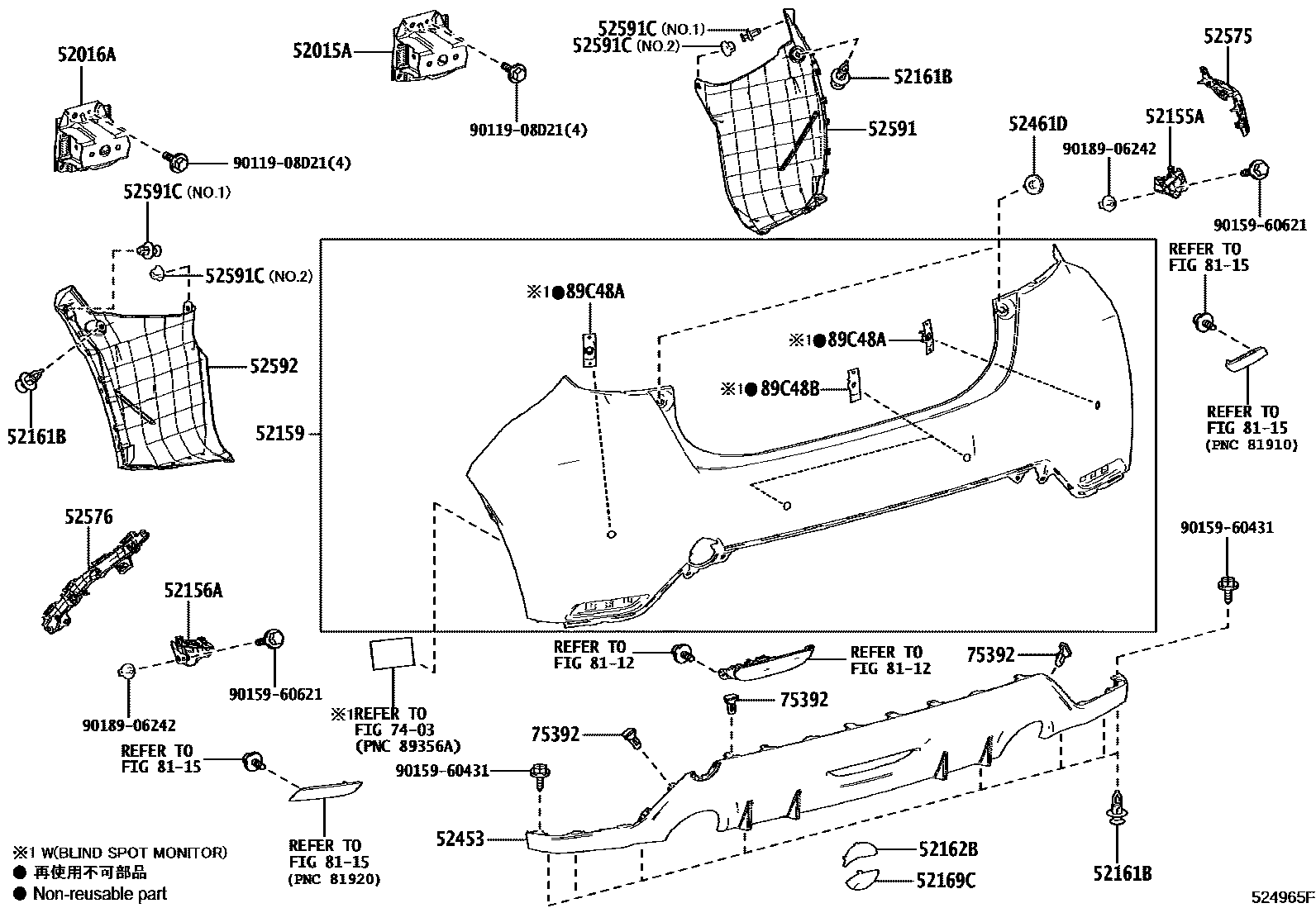

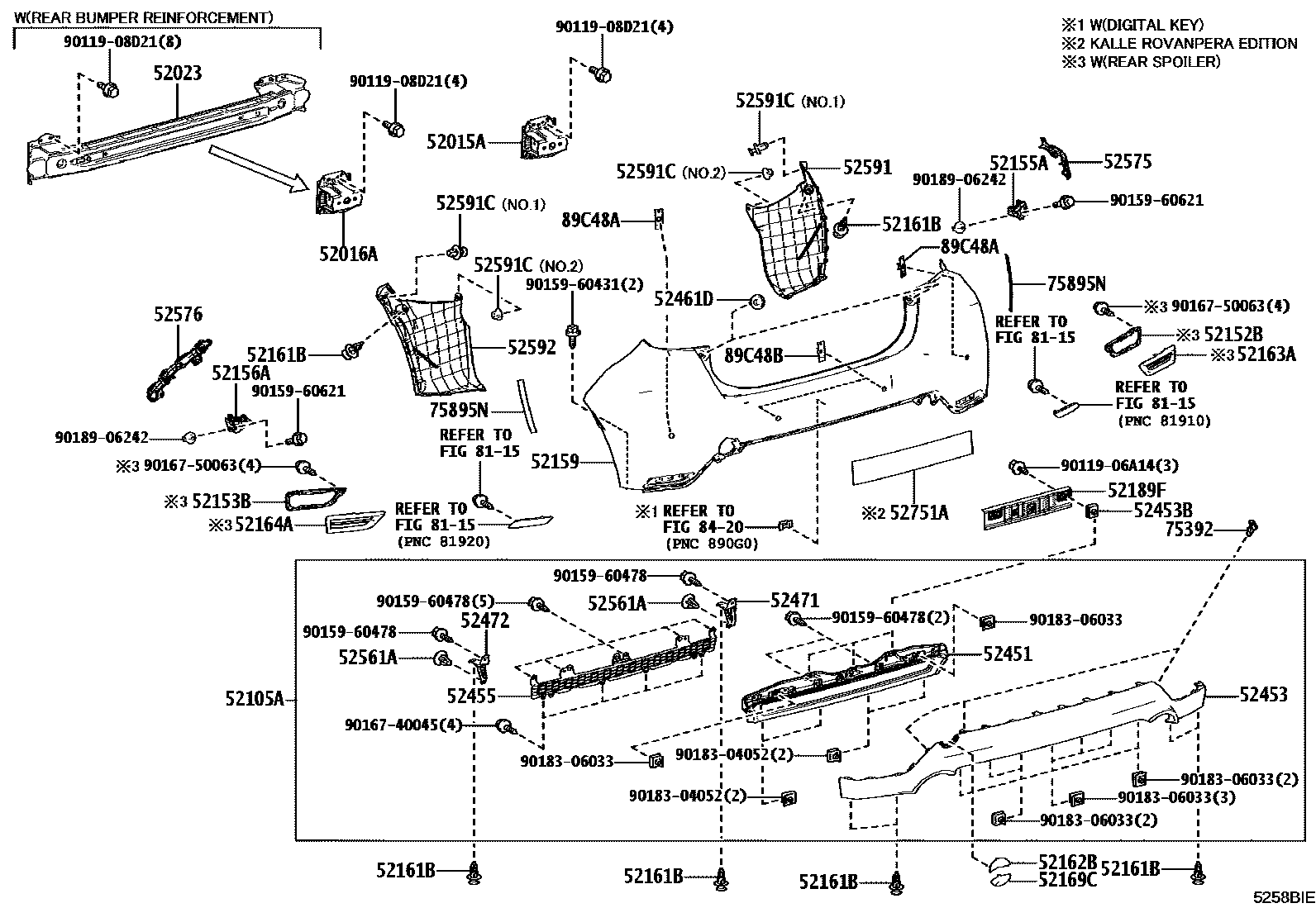

Toyota YARIS EPC diagram 5202, 后保险杠及附件, with 2 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-52150 · 52015-52151 |
| 52016A | Rear bumper left arm sub-assembly | 52016-52160 · 52016-52161 |
| 52023 | Rear bumper reinforcement sub-assembly | 52023-52180 |
| 52105A | Center rear bumper sub-assembly | 52105-52100 · 52105-52120 |
| 52152B | Rear bumper right extension | 52152-52050 |
| 52153B | Rear bumper left extension | 52153-52050 |
| 52155A | Rear bumper right side bracket | 52155-K0010 |
| 52156A | Rear bumper left bracket | 52156-K0010 |
| 52159 | rear bumper cover | 52159-K0909 · 52159-K0912 · 52159-K0915 · 52159-K0917 · 52159-K0919 · 52159-K0920 · 52159-K0921 · 52159-K0922 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52162B | Rear bumper No. 1 fender | 52162-52912 |
| 52169C | Rear bumper lower cover | 52169-52110 · 52169-52120 · 52169-52180 |
| 52189F | Rear bumper arm vibration isolation pad | 5832A-52010 |
| 52451 | Rear bumper anti-impact parts | 52451-52030 |
| 52453 | PROTECTION, PARE-CHOCS ARRIERE, CENTRALE | 52453-52110 · 52453-52120 · 52453-52240 |
| 52453B | ECROU | 90179-06127 |
| 52455 | INSERT, BUTOIR PARE-CHOCS ARR | 52455-52010 |
| 52461D | rear bumper cushion | 52461-52020 |
| 52471 | ARRETOIR, BUTOIR PARE-CHOCS ARRIERE, MD | 52471-52010 · 52472-52010 |
| 52472 | ARRETOIR, BUTOIR PARE-CHOCS ARRIERE, MG | 52472-52010 |
| 52561A | Clip (for rear bumper mount) | 90467-07215 |
| 52575 | Rear bumper right side fixing bracket | 52575-52240 · 52575-52280 |
| 52576 | Rear bumper left side fixing bracket | 52576-52220 · 52576-52280 |
| 52591 | Rear bumper right seal | 52591-52430 · 52591-52490 |
| 52591C | ATTACHE, JOINT LAT PARE-CHOCS ARR | 90467-05170 · 90467-06121 |
| 52592 | Rear bumper left seal | 52592-52420 · 52592-52440 |
| 52751A | Rear bumper center protective strip | 52751-52040 |
| 75392 | External protective strip fixings | 75392-35220 |
| 89C48A | ARRETOIR, CAPTEUR A ULTRASONS, D'ANGLE ARRIERE | 89348-52200 · 89348-52201 · 89348-52450 |
| 89C48B | ARRETOIR, CAPTEUR A ULTRASONS, CENTRAL ARRIERE | 89348-52200 · 89348-52201 · 89348-52450 |
