Toyota YARIS 前保险杠及附件 — Figure 5201

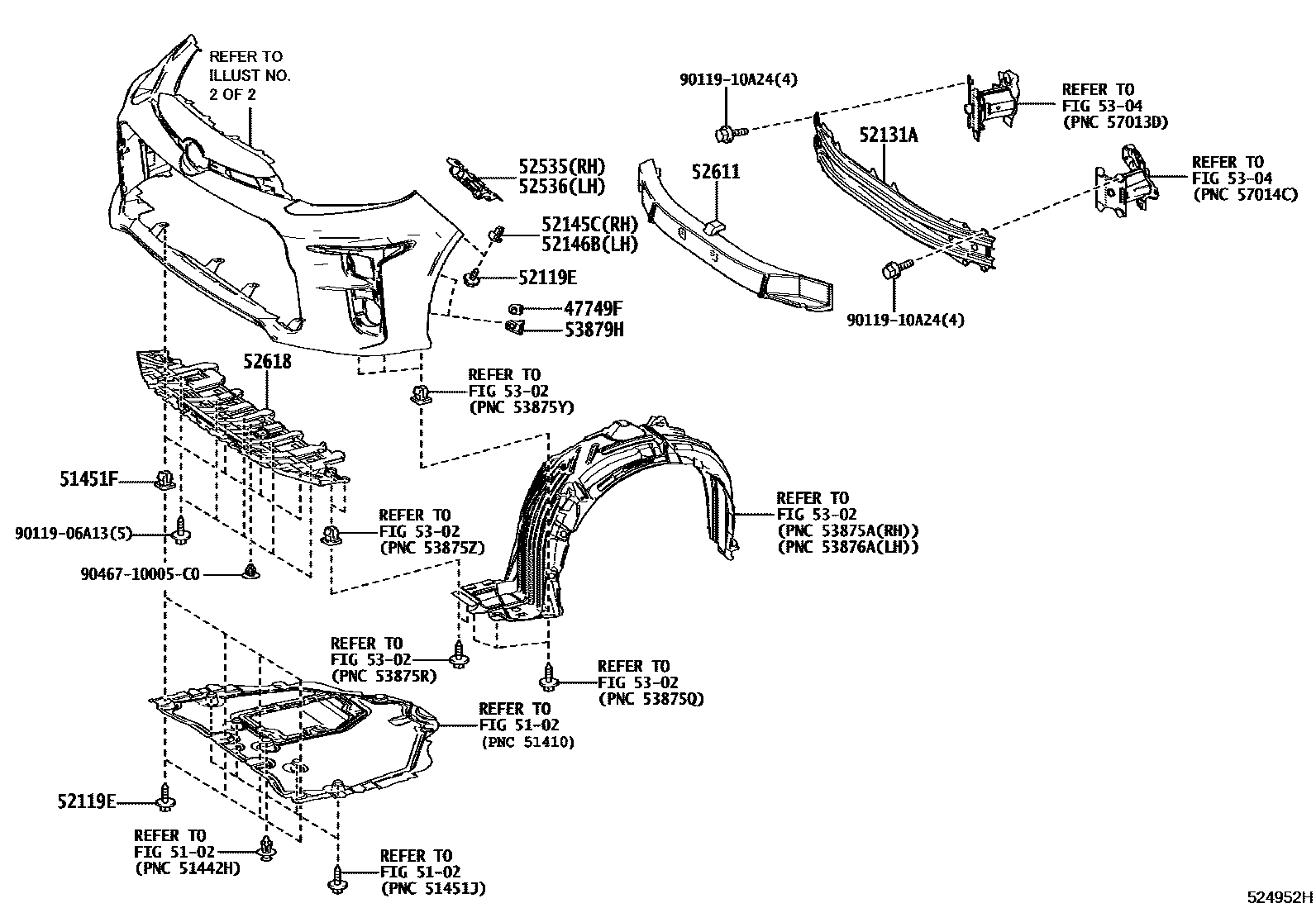

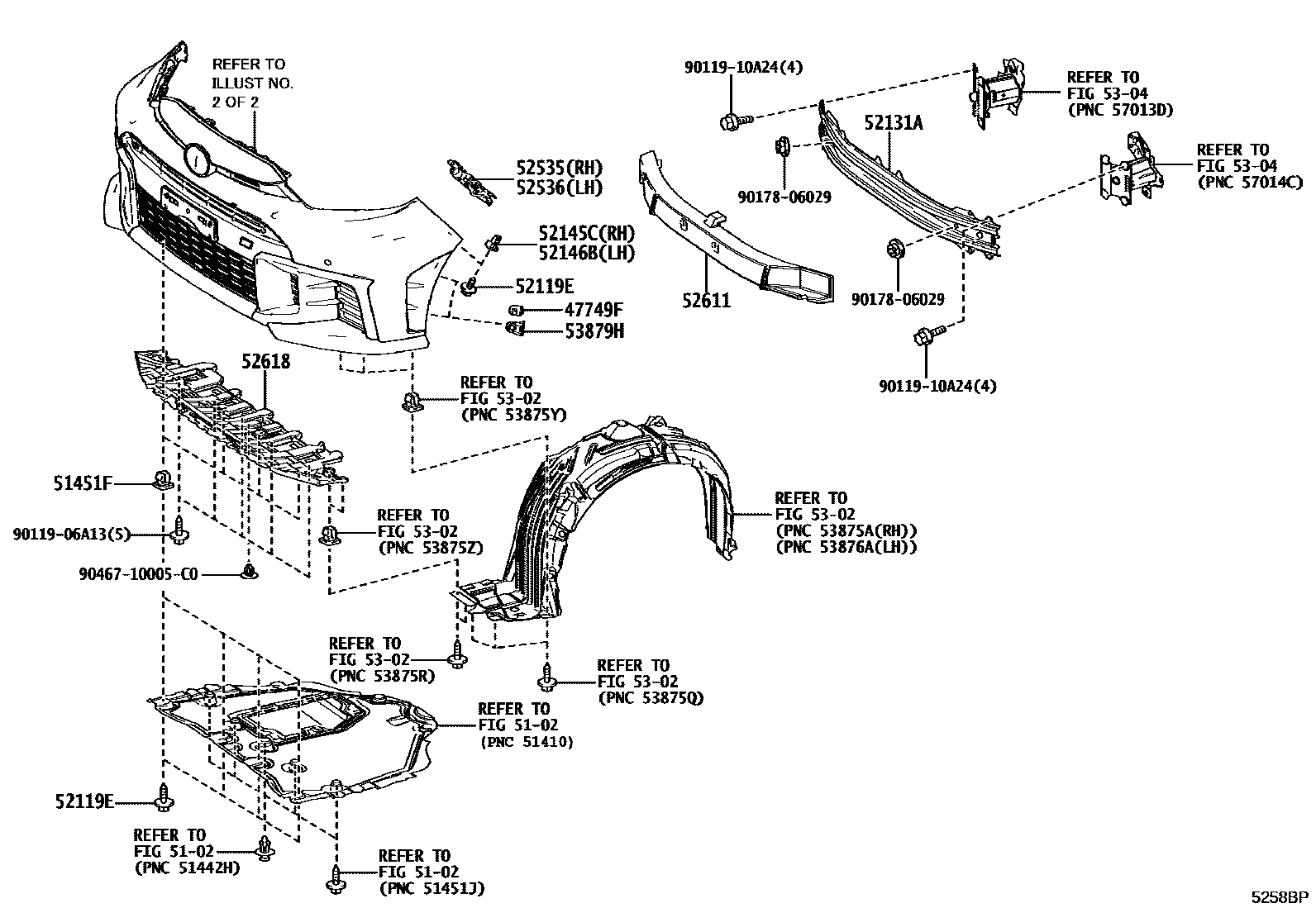

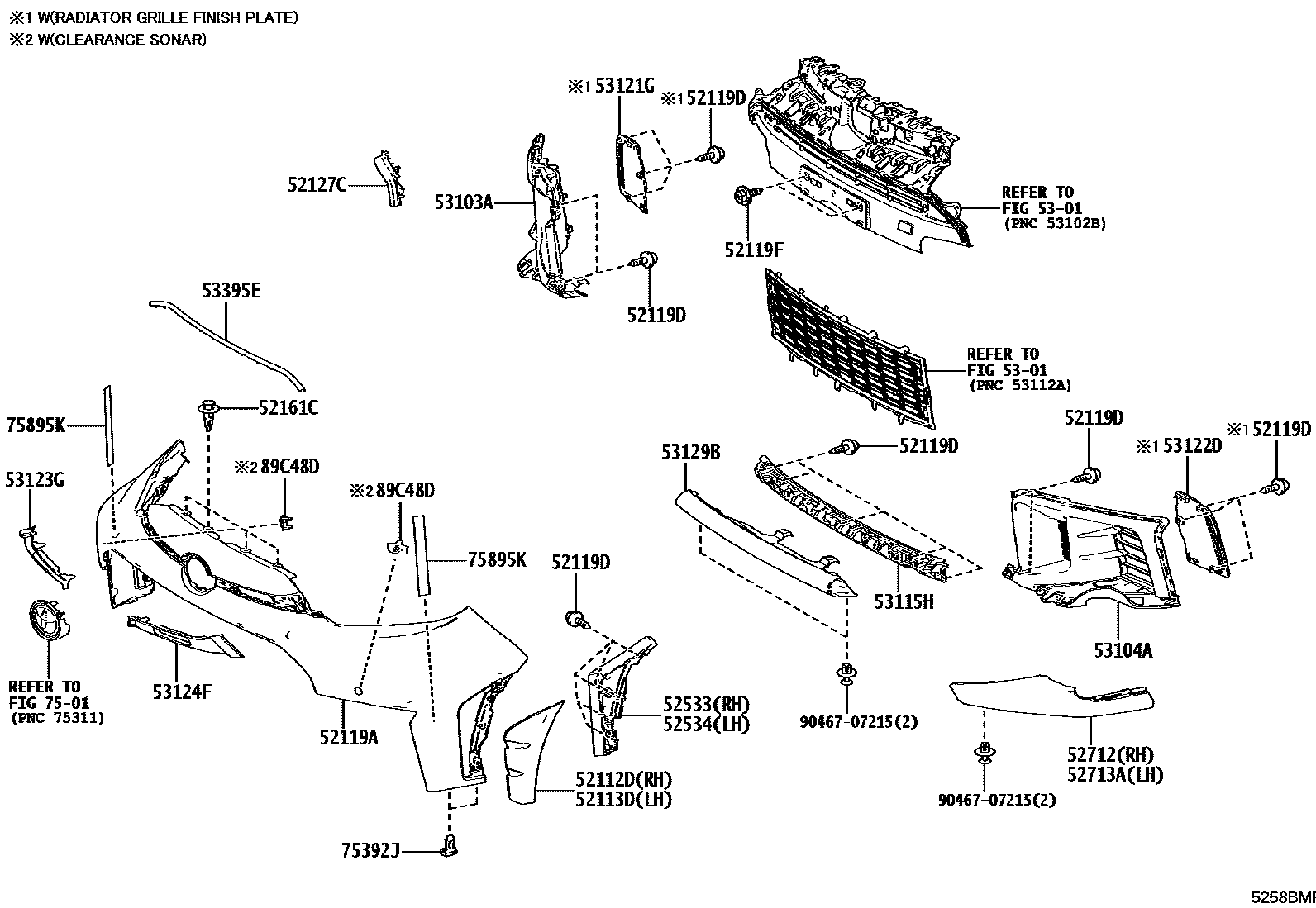

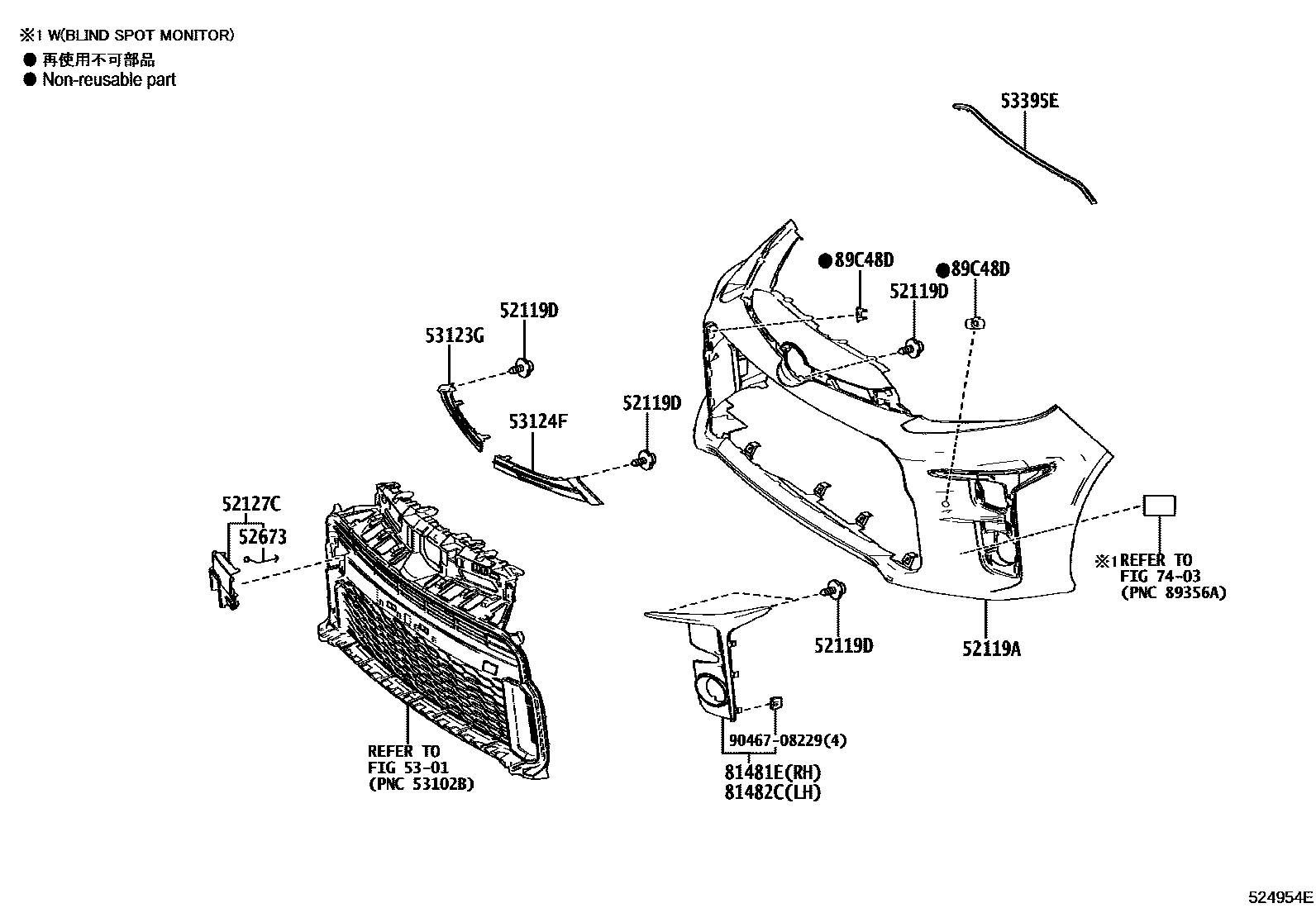

Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 4 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | ATTACHE, BROCHE FIXATION | 47749-30090 · 47749-33030 |
| 51451F | OEILLET, NO.1 | 90189-06237 |
| 52112D | Front bumper right extension | 52112-52900 |
| 52113D | Front bumper left extension | 52113-52900 |
| 52119A | front bumper cover | 52119-K0904 · 52119-K0905 · 52119-K0909 · 52119-K0910 |
| 52119D | VIS, NO.1 | 90167-50063 |
| 52119E | VIS, NO.2 | 90159-60477 |
| 52119F | VIS, NO.3 | 90159-60477 |
| 52127C | Front bumper hole cover | 52129-52280 · 52129-52290 · 52129-52350 |
| 52131A | Front bumper reinforcement | 52131-52320 · 52131-52330 |
| 52145C | Front bumper right side mounting bracket | 52145-33110 |
| 52146B | Front bumper left mounting bracket | 52146-33110 |
| 52161C | front bumper insert | 52161-16010 |
| 52533 | Front bumper No. 1 fixed frame bracket | 52533-52010 |
| 52534 | Front bumper No. 2 fixed frame bracket | 52534-52010 |
| 52535 | Front bumper right side fixing bracket | 52535-52220 · 52535-52260 |
| 52536 | Front bumper left fixed bracket | 52536-52210 · 52536-52230 |
| 52611 | front bumper energy absorber | 52611-K0030 |
| 52618 | Front bumper lower shock absorber | 52618-52160 |
| 52673 | BRAS, PARE-CHOCS AVANT, NO.1 | 52673-24010 |
| 52712 | Front bumper right side protective strip | 52712-52902 |
| 52713A | Front bumper left protective strip | 52713-52902 |
| 53103A | Lower right radiator grille sub-assembly | 53103-52030 |
| 53104A | Lower left radiator grille sub-assembly | 53104-52040 |
| 53115H | SUPPORT, GRILLE RADIATEUR | 53115-52080 |
| 53121G | Radiator grille right decorative panel | 53121-52370 |
| 53122D | Radiator grille left decorative panel | 53122-52180 |
| 53123G | MOULURE LATERALE DROITE DE CALANDRE DE RADIATEUR | 53123-52180 · 53123-52190 · 53123-52250 |
| 53124F | MOULURE LATERALE GAUCHE DE CALANDRE DE RADIATEUR | 53022-52010 · 53124-52180 · 53124-52210 · 53124-52280 |
| 53129B | Radiator grille No. 9 protective strip | 53129-52020 |
| 53395E | Engine cover to front end plate seal | 53395-52140 |
| 53879H | Front fender lining fixing parts | 53879-30090 · 53879-33030 |
| 75392J | External protective strip fixings | 75392-35200 · 75392-35220 |
| 75895K | RUBAN, MOULURE, NO.1 | 75895-53010 |
| 81481E | Right fog light cover | 81481-52810 · 81481-52820 |
| 81482C | Left fog light cover | 81482-52700 · 81482-52710 |
