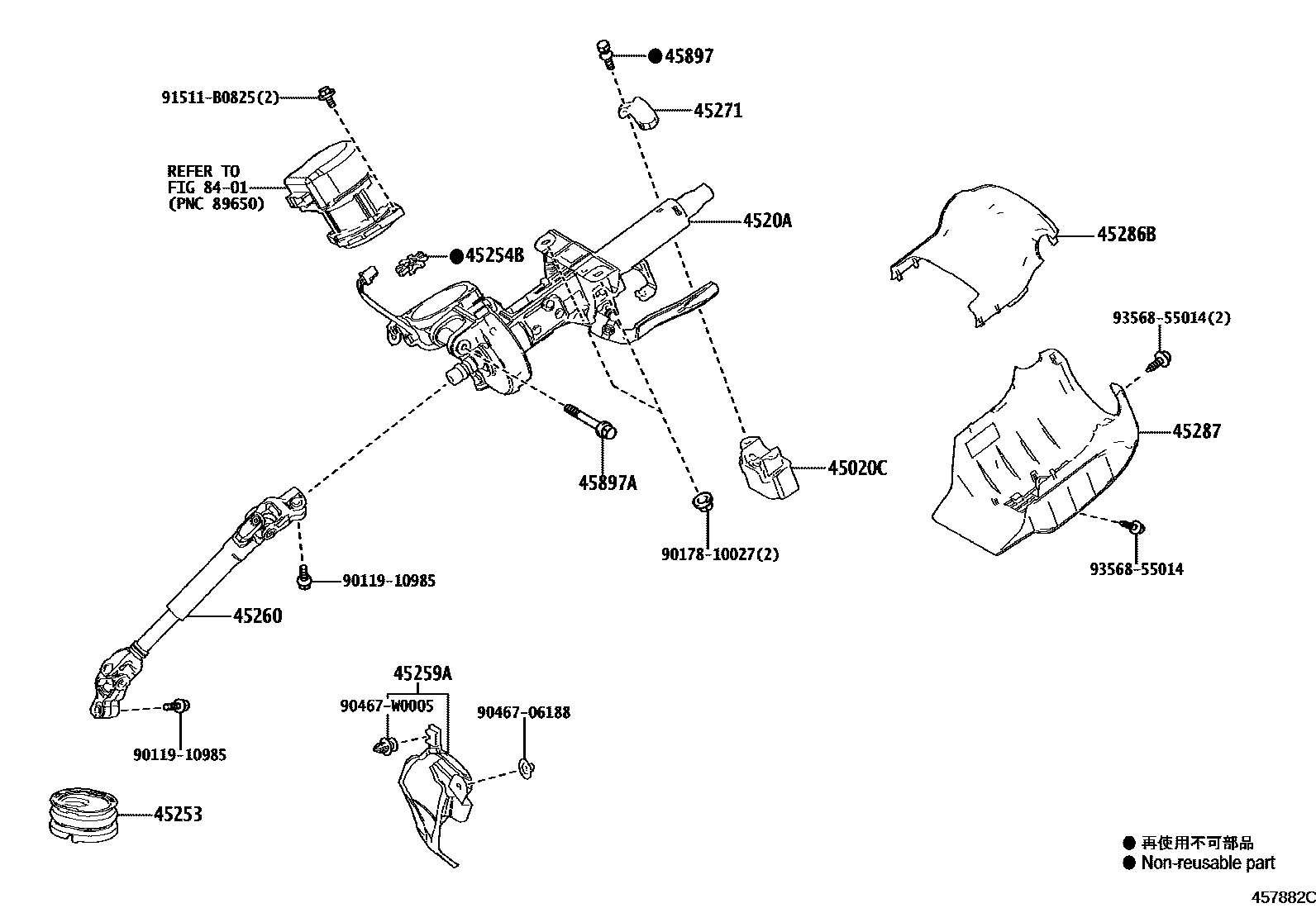

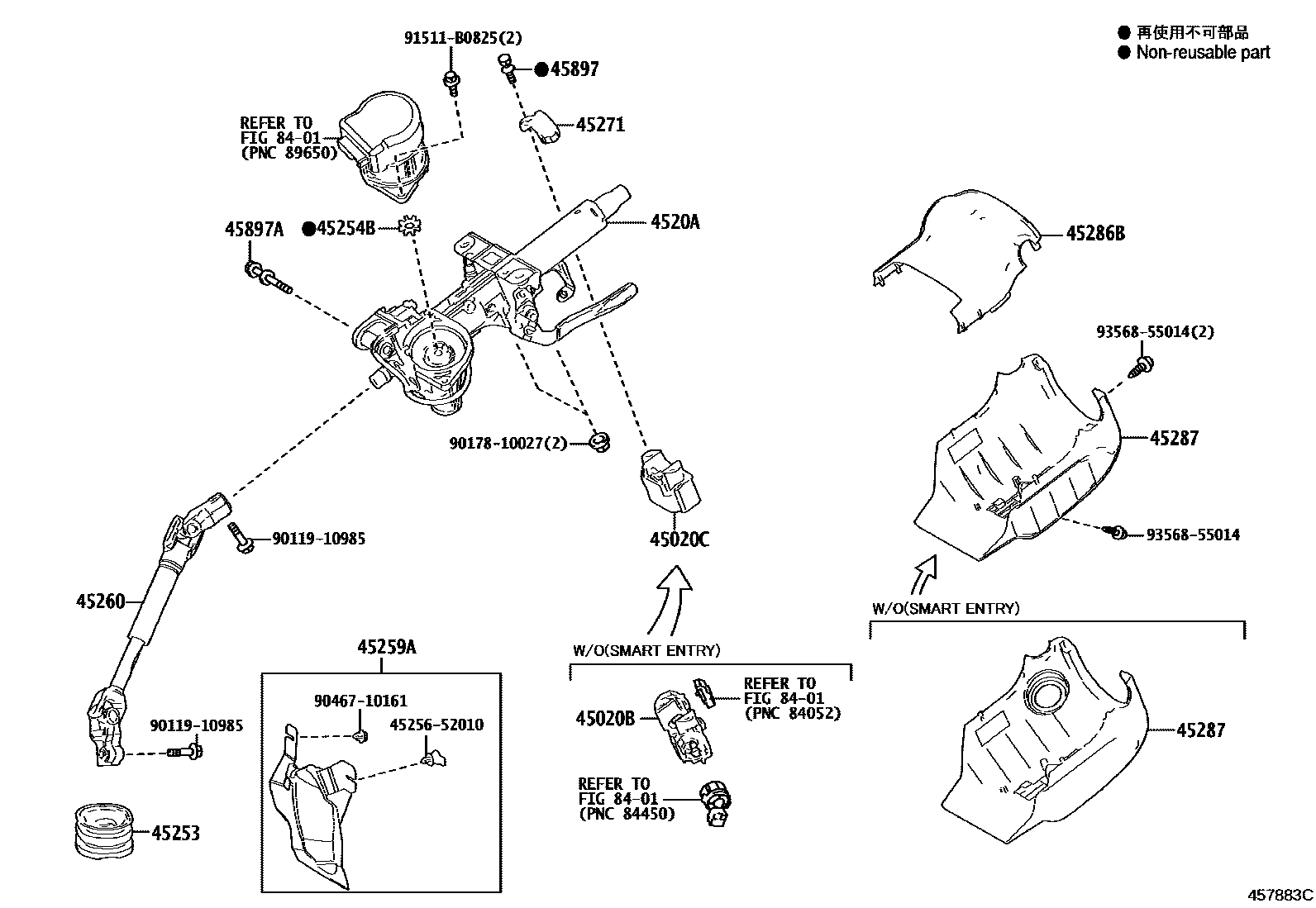

Toyota YARIS Steering Column & Shaft — Figure 4501
Toyota YARIS EPC diagram 4501, Steering Column & Shaft, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020B | ACTIONNEUR OU ENSEMBLE SUPPORT SUPERIEUR, ANTIVOL DIRECTION | 45280-26270 |
| 45020C | ENS. ACTIONNEUR, ANTIVOL DIRECTION(AV/ECU) | 45020-42280 · 45020-K0010 |
| 4520A | Electric steering column sub-assembly | 4520A-52340 · 4520A-52350 · 4520A-52380 · 4520A-52600 · 4520A-52620 |
| 45253 | Steering column hole cover | 45253-K0010 |
| 45254B | Electric steering motor shaft shock absorber | 45254-28040 |
| 45259A | Steering column hole cover silencer plate | 45259-K0010 · 45259-K0030 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-52340 · 45260-52370 · 45260-52380 · 45260-K0010 |
| 45271 | Clamp on steering column | 45271-52030 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 90119-10981 · 90119-10A34 |
