Toyota YARIS Front Axle Hub — Figure 4303

Toyota YARIS EPC diagram 4303, Front Axle Hub, with 1 images and 8 PNC and OE references.

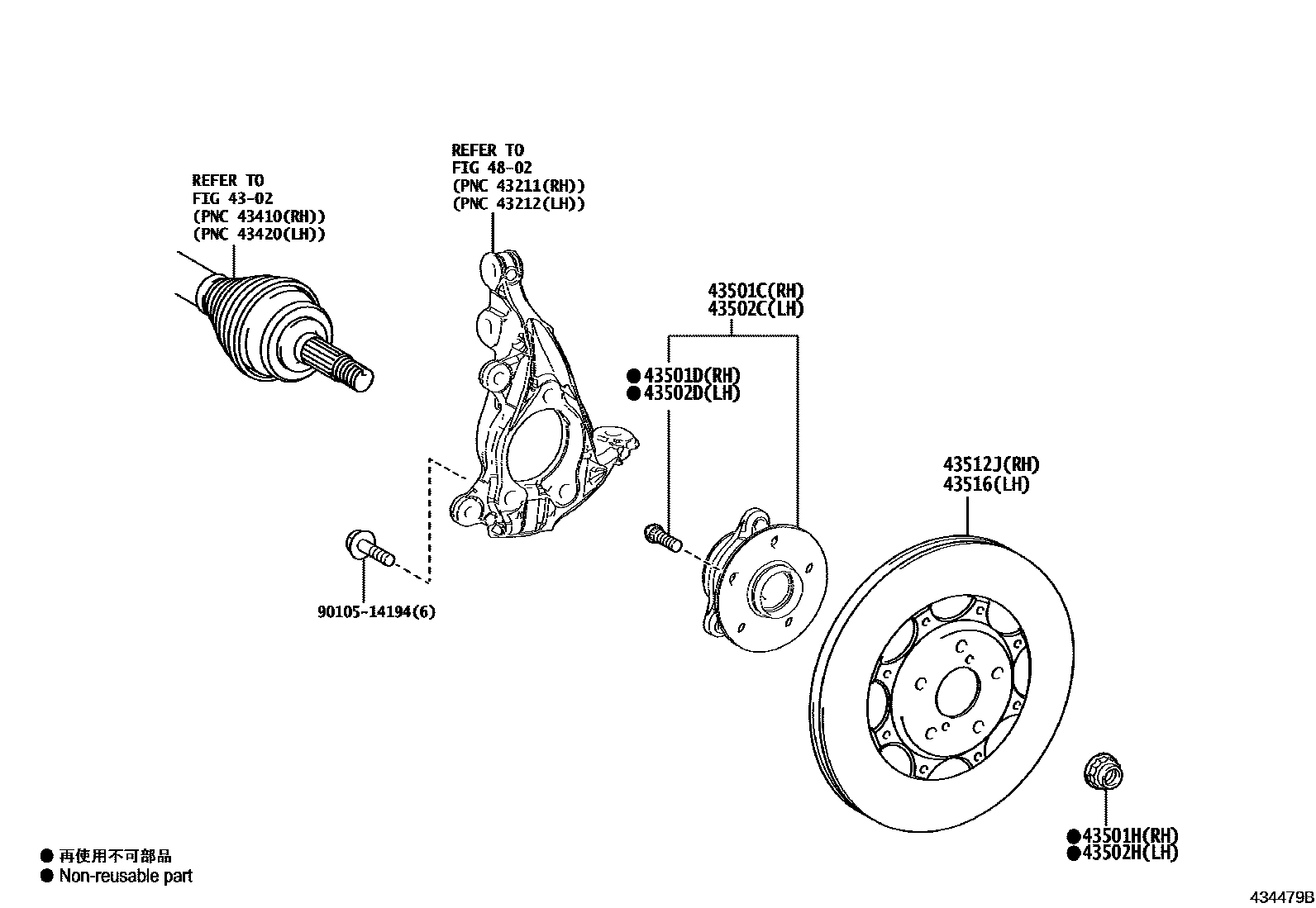

Toyota YARIS Front Axle Hub EPC diagram — 434479B
Front Axle Hub — 434479B (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
43501CRight front axle hub sub-assembly43550-52010
43501DHub bolt (for right front axle)90942-02049
43501HNut (for front axle right half shaft)90177-22001
43502CLeft front axle wheel hub sub-assembly43550-52010
43502DHub bolt (for left front axle)90942-02049
43502HNut (for front axle left half shaft)90177-22001
43512JDISQUE, AVANT MD43512-52180
43516DISQUE, AVANT MG43516-52020
