Toyota YARIS Front Drive Shaft — Figure 4302

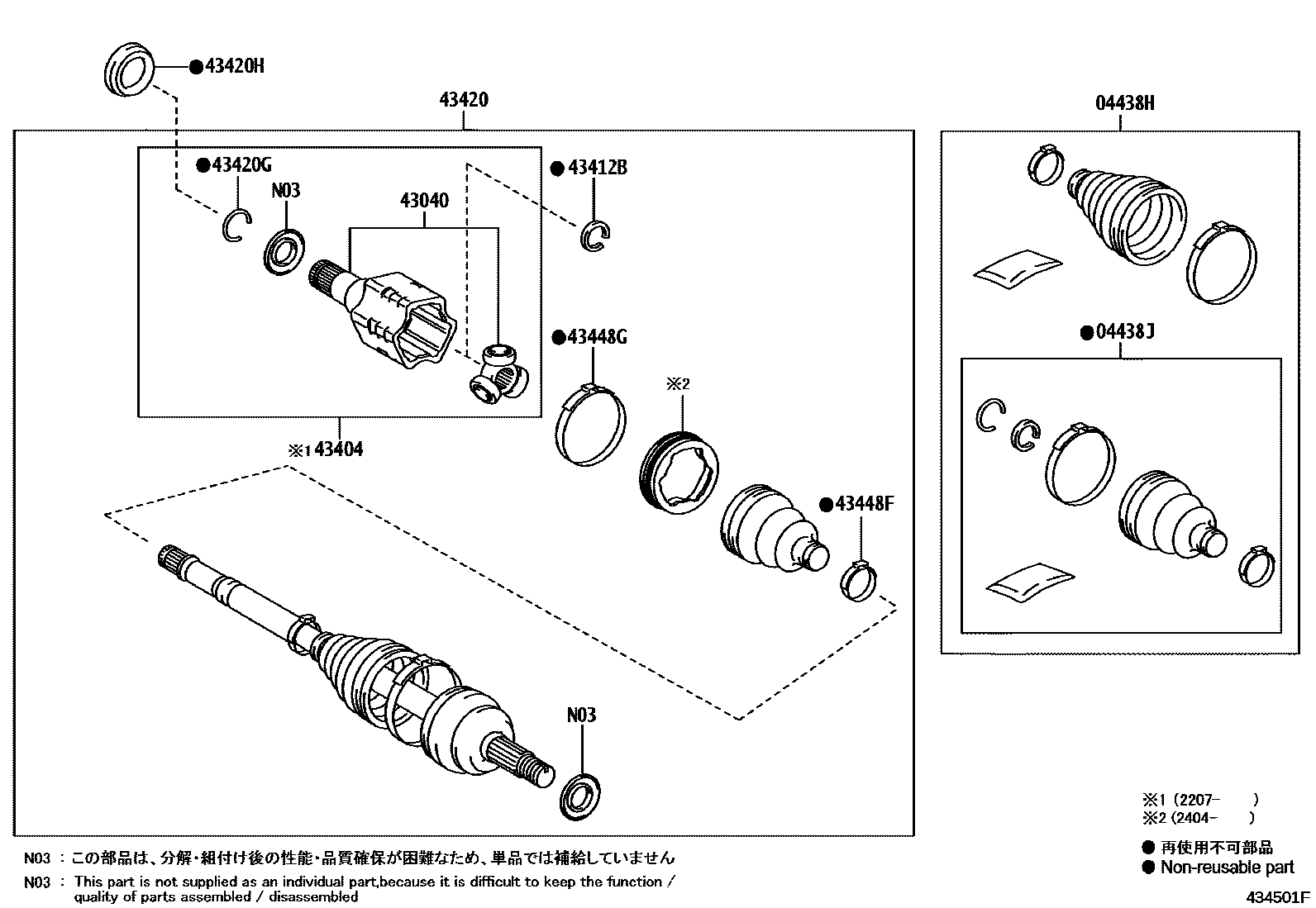

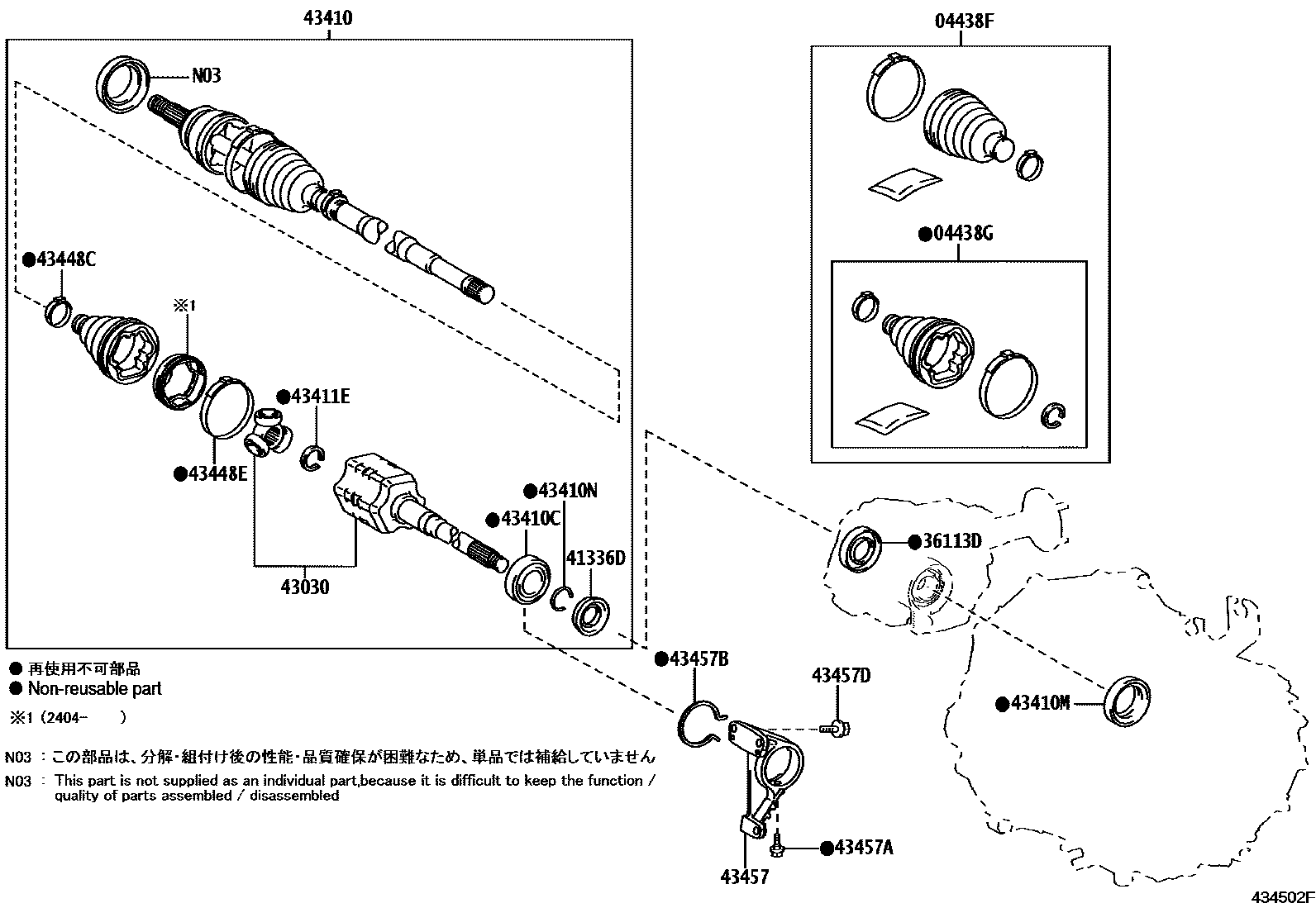

Toyota YARIS EPC diagram 4302, Front Drive Shaft, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-52935 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-52511 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-52925 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-52521 |
| 36113D | JOINT, D'HUILE (POUR BOITE DE TRANSFERT MD) | 90311-35056 |
| 41336D | Right front driveshaft dust cover | 41336-78020 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-52090 · 43030-52100 · 43030-52110 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-52010 · 43040-52030 · 43040-58010 |
| 43404 | Left front axle inner universal joint assembly | 43404-52010 · 43404-52020 · 43404-52030 |
| 43410 | Right front driveshaft assembly | 43410-52420 · 43410-52500 · 43410-52510 |
| 43410C | Bearings (for front driveshaft) | 90363-36006 |
| 43410M | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MD | 90316-34001 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-78040 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-78020 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-78020 |
| 43420 | Left front drive shaft assembly | 43420-52360 · 43420-52400 · 43420-52410 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-78050 |
| 43420H | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MG | 90311-50058 · 90311-50059 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-52320 · 42345-78010 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-52350 · 42345-78020 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-52320 · 42345-78010 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-52350 · 42345-78020 |
| 43457 | drive shaft bearing bracket | 43457-52040 · 43457-52050 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-75002 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-10381 |
