Toyota YARIS 制动带和多片式离合器(ATM) — Figure 3507

Toyota YARIS EPC diagram 3507, 制动带和多片式离合器(ATM), with 1 images and 27 PNC and OE references.

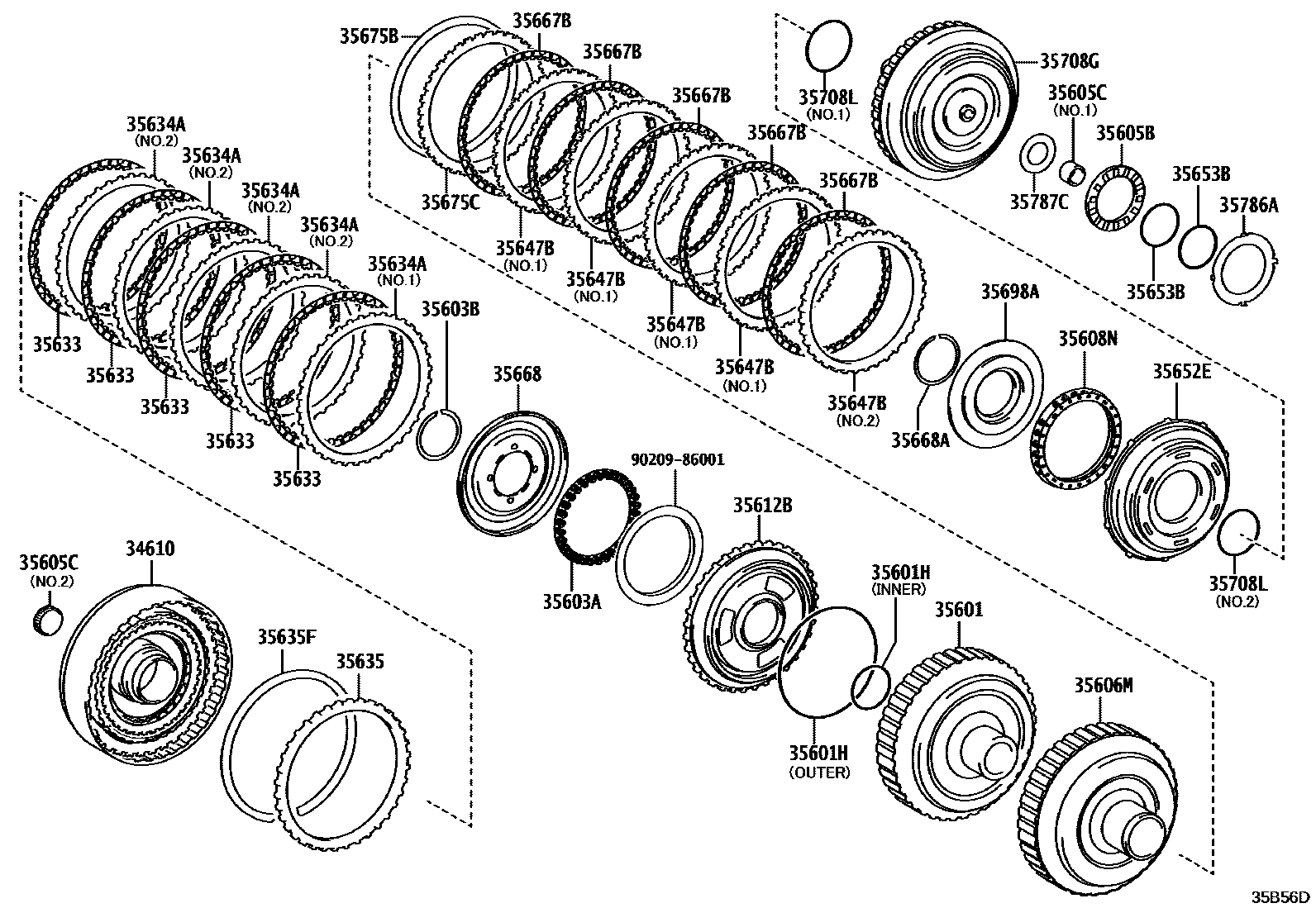

Toyota YARIS 制动带和多片式离合器(ATM) EPC diagram — 35B56D — 制动带和多片式离合器(ATM) — 35B56D (202404 – 999999)

PNC and OE references

PNC	Part name	OE numbers
34610	ENS. EMBRAYAGE, C-3 ET C-4	34610-52010
35601	Clutch drum sub-assembly	35601-52070
35601H	JOINT, TORIQUE(POUR TAMBOUR C-1)	90301-99271 · 90302-42001
35603A	Forward gear clutch return spring sub-assembly	35603-52060
35603B	Shaft snap ring (for forward clutch piston)	90520-46015
35605B	Thrust needle roller bearing	90374-50002
35605C	Needle roller bearings	90364-16011 · 90364-26009
35606M	SOUS-ENS MOYEU, ENTREE PLANETAIRE	35606-52030
35608N	SOUS-ENS. RESSORT, RAPPEL EMBRAYAGE AV/ARRETOIR	3560A-48010
35612B	forward clutch piston	35612-52090
35633	Clutch disc (for front clutch)	35633-78010
35634A	Clutch plate (for forward multi-plate clutch)	35634-48050 · 35634-48060
35635	forward clutch flange	35635-48120 · 35635-48130 · 35635-48140 · 35635-48150 · 35635-48160 · 35635-48170 · 35635-48180 · 35635-48190 · 35635-48200
35635F	Snap ring (for forward clutch flange)	90520-99188
35647B	Clutch plate No. 2	35647-48030 · 35647-48040
35652E	PISTON, EMBRAYAGE C-2	35652-52050
35653B	Direct clutch drum oil guard ring	35653-48020
35667B	No. 2 clutch disc	35667-52050
35668	No. 1 clutch balancer	35668-52060
35668A	Snap ring (for clutch balancer)	90520-48013
35675B	Hole snap ring (for forward clutch flange)	90520-99171
35675C	Direct clutch flange	35675-48370 · 35675-48380 · 35675-48390 · 35675-48400 · 35675-48410 · 35675-48420 · 35675-48430 · 35675-52110 · 35675-52120 · 35675-52130 · 35675-52140 · 35675-52150 · 35675-52160 · 35675-52170 · 35675-52180 · 35675-52190
35698A	BALANCIER, EMBRAYAGE C-2	35698-48020
35708G	Intermediate shaft sub-assembly	35708-52070
35708L	O-ring (for intermediate shaft)	90301-47008 · 90301-50004
35786A	No. 1 thrust bearing race	35786-48020
35787C	No. 2 thrust bearing race	35787-48030
