Toyota YARIS 变速器壳和油底壳(ATM) — Figure 3503

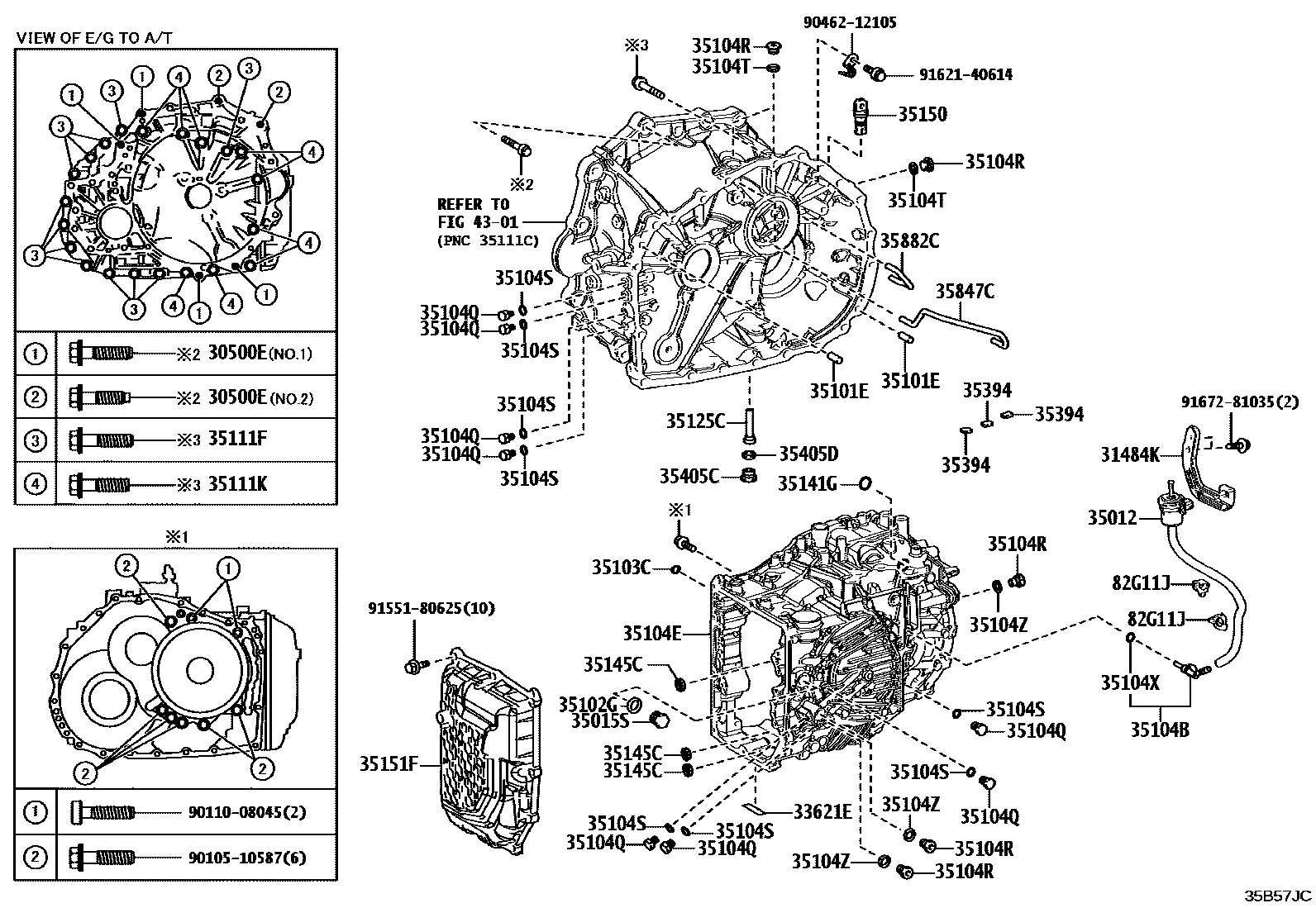

Toyota YARIS EPC diagram 3503, 变速器壳和油底壳(ATM), with 1 images and 29 PNC and OE references.

Toyota YARIS 变速器壳和油底壳(ATM) EPC diagram — 35B57JC
变速器壳和油底壳(ATM) — 35B57JC (202404 – 999999)

PNC and OE references

PNCPart nameOE numbers
30500EBolts (for securing transaxle and engine)90105-10591 · 91552-81250
31484KSUPP, POMP FLEX31484-52140
33621ETransaxle Oil Caution Label33621-28021
35012Transmission breather hose sub-assembly35012-52110
35015SStraight thread plug (for transmission coupling)90341-18064
35101EDirect sales (for automatic transmission)90250-10021
35102GGasket (for transaxle rear cover)90430-18008
35103CO-ring90301-06021
35104BVentilation plug No. 1 (ATM)90930-03230
35104EAutomatic transmission axle housing sub-assembly35104-52160
35104QNo. 1 screw plug (for transmission axle housing)90341-08001
35104RNo. 2 screw plug (for transmission axle housing)90341-14015
35104SO-ring (for transmission axle housing plug No. 1)90301-06196
35104TO-ring (for transmission axle housing plug No. 2)90430-14008
35104XO-ring (for breather plug)90301-08015
35104ZGasket (for transaxle housing)90430-14008
35111FBolts (for securing transaxle housing and transaxle housing)91551-00835
35111KBolts (for securing transmission housing and case)91551-00840
35125CNo. 1 transmission oil pipe35125-48090
35141GO-ring (for automatic transmission)90301-10018
35145CTransmission axle housing gasket35145-33020
35150gearbox plug assembly35150-44010
35151Fgearbox side cover35151-33161
35394Oil filter magnet (for transmission)35394-48010
35405CSS-ENS. OBTURATEUR, AVEC VIS A TETE PLATE90341-18023
35405DSEGMENT, O (POUR VIS D'OBTURATION A TETE PLATE)90430-18008
35847CTransmission lubricant supply pipe35847-48030
35882CDifferential gear lubricant oil supply pipe35882-48030
82G11JBRID, FAISC ELEC82711-2D350
