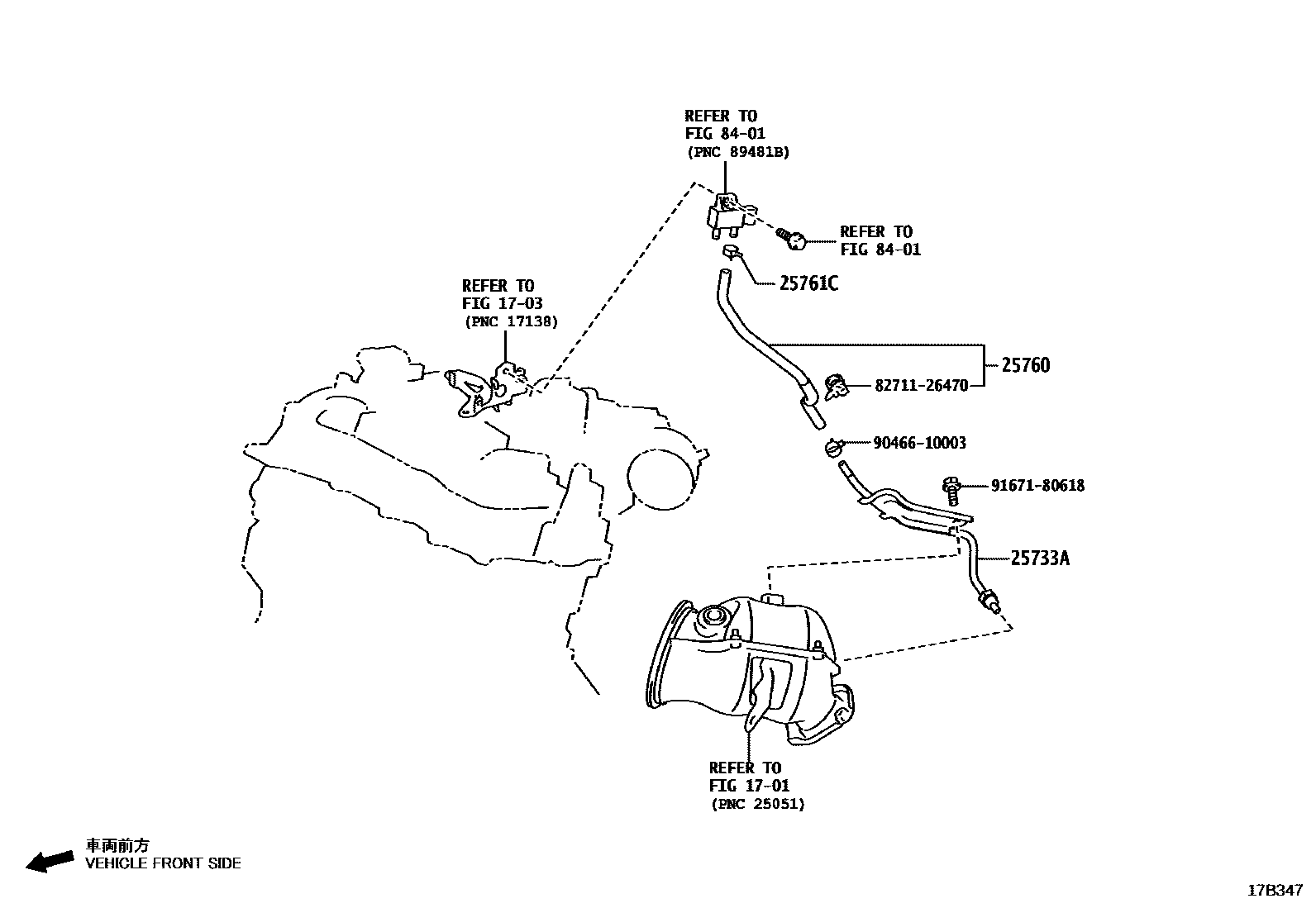

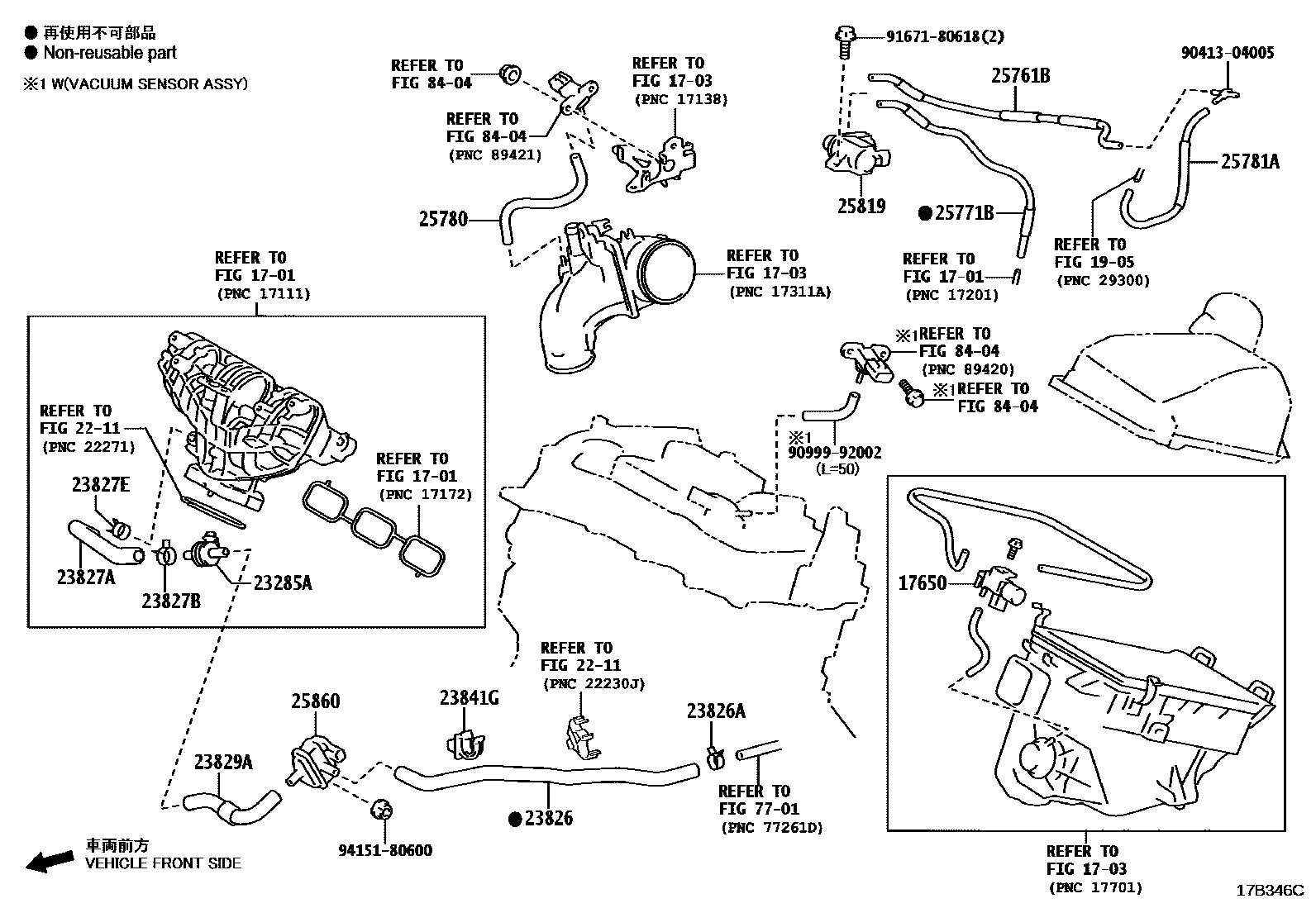

Toyota YARIS vacuum tube — Figure 1708
Toyota YARIS EPC diagram 1708, vacuum tube, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17650 | Vacuum switch valve assembly | 90910-12088 |
| 23285A | No. 1 one-way valve | 25748-25030 · 25748-36010 |
| 23826 | No. 1 fuel vapor supply hose | 23826-18020 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 96136-41901 |
| 23827A | No. 2 fuel vapor supply hose | 23827-18010 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 96136-42201 |
| 23827E | Clamp (for No. 2 fuel vapor supply hose) | 96137-41901 |
| 23829A | Fuel vapor supply hose | 23826-18010 |
| 23841G | fuel hose clamp | 77196-33040 |
| 25733A | No. 1 vacuum tube | 25733-18010 |
| 25760 | Vacuum transfer hose assembly | 25760-18010 |
| 25761B | No. 1 Vacuum Transfer Hose | 25761-18010 |
| 25761C | Clamp (No. 1 vacuum transfer hose) | 96132-51100 |
| 25771B | No. 2 vacuum transfer hose | 25771-18010 |
| 25780 | No. 3 vacuum transmission hose assembly | 25780-18010 |
| 25781A | No. 3 vacuum transfer hose | 25791-18010 |
| 25819 | Vacuum regulating valve assembly | 25819-0W010 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-18010 |
