Toyota YARIS Water Pump — Figure 1601

Toyota YARIS EPC diagram 1601, Water Pump, with 1 images and 3 PNC and OE references.

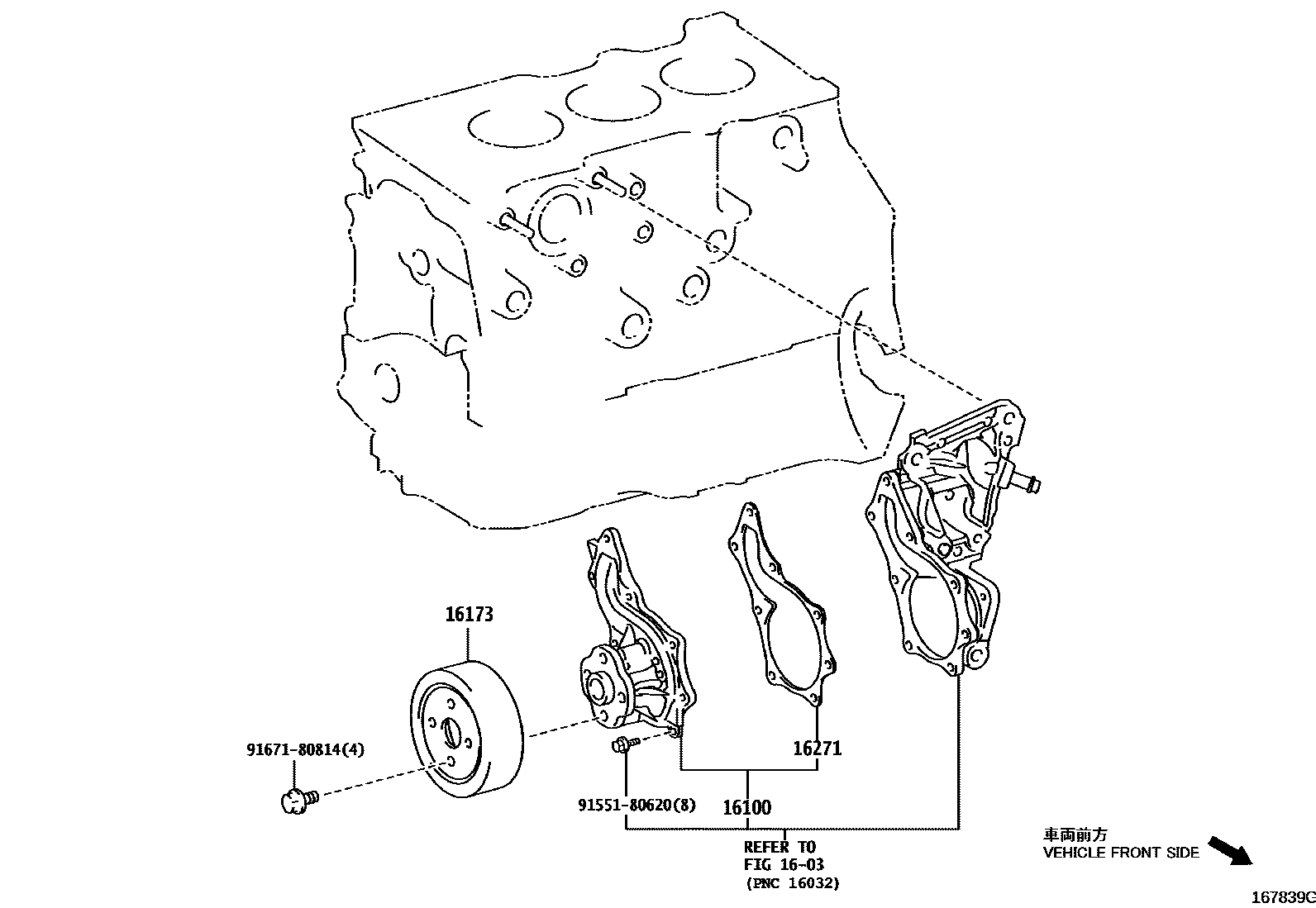

Toyota YARIS Water Pump EPC diagram — 167839G — Water Pump — 167839G (202008 – 999999)

PNC and OE references

PNC	Part name	OE numbers
16100	Engine water pump assembly	16100-19385
16173	water pump pulley	16173-18010
16271	water pump gasket	16271-18010
