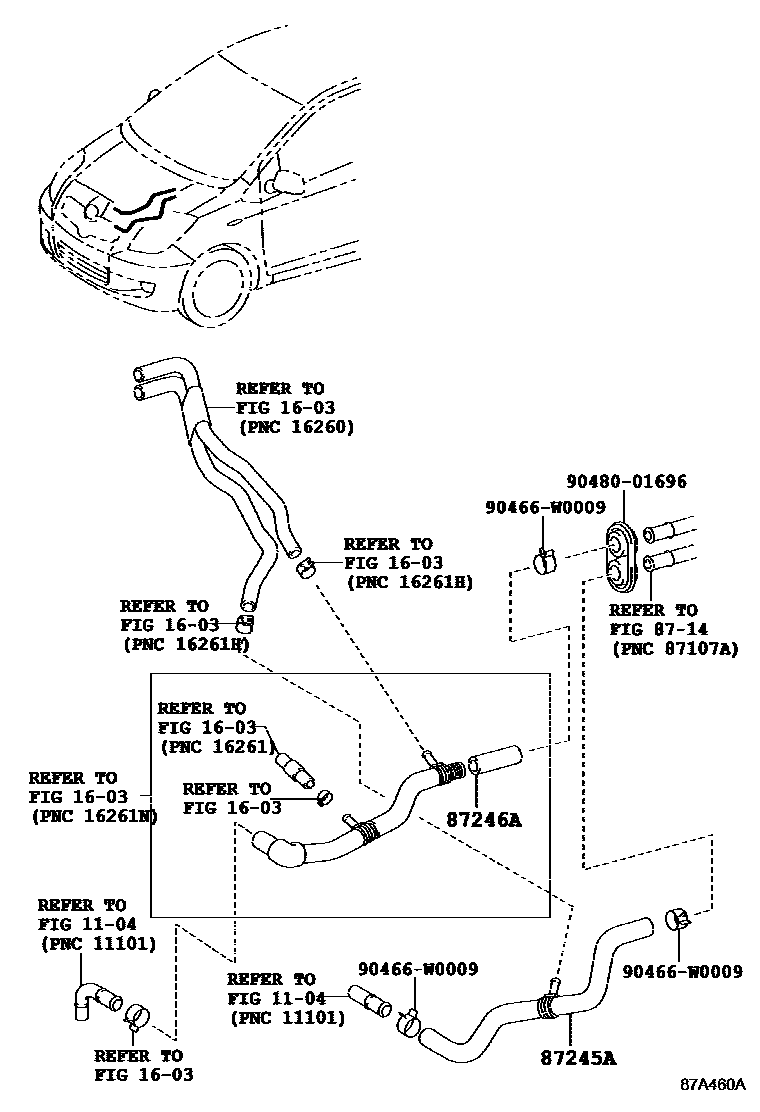

Toyota YARIS 暖风和空调系统 - 水管 — Figure 8716

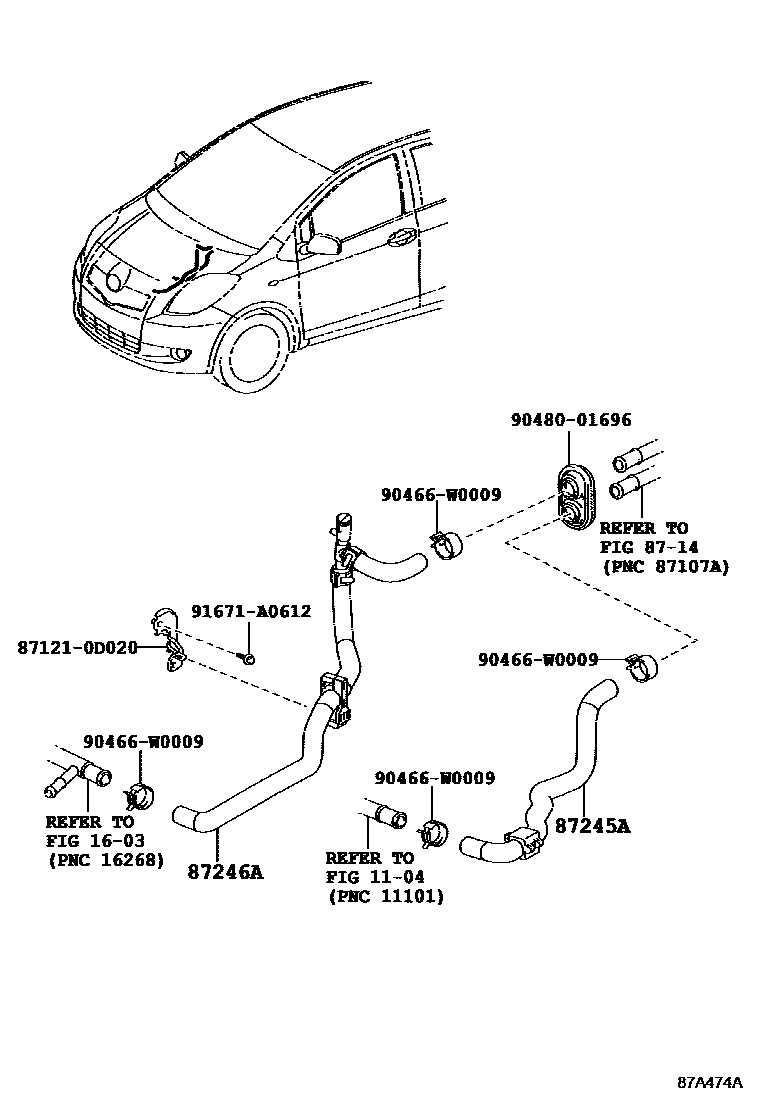

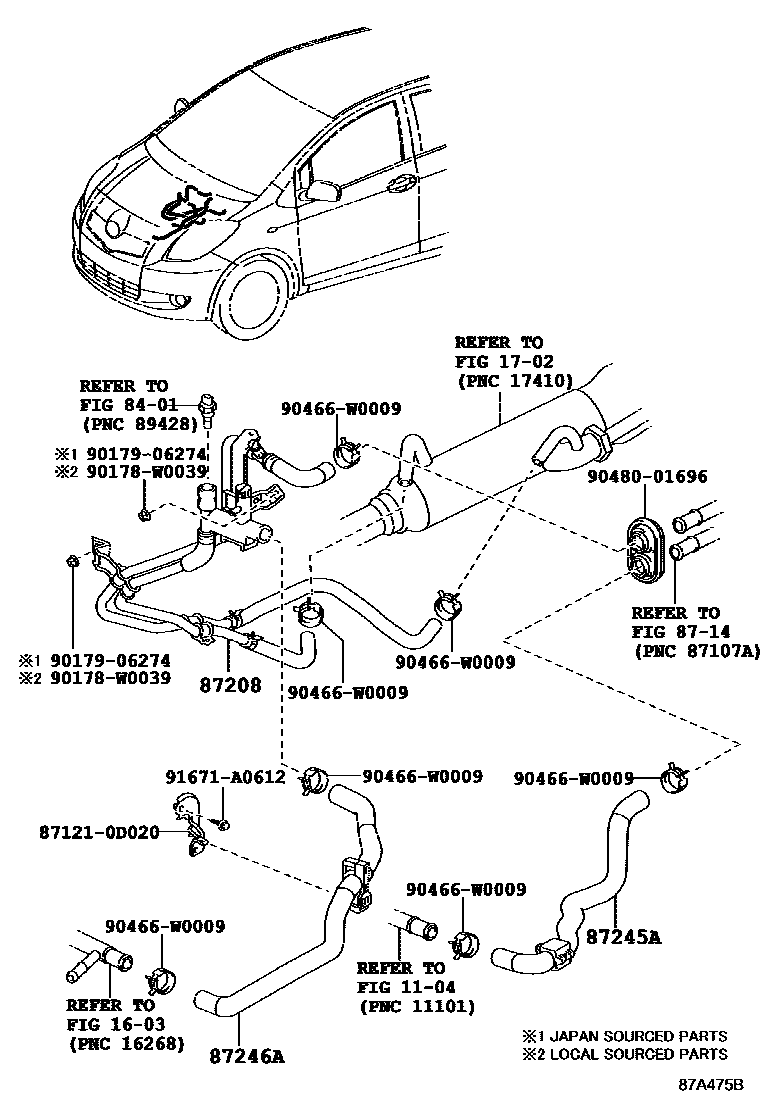

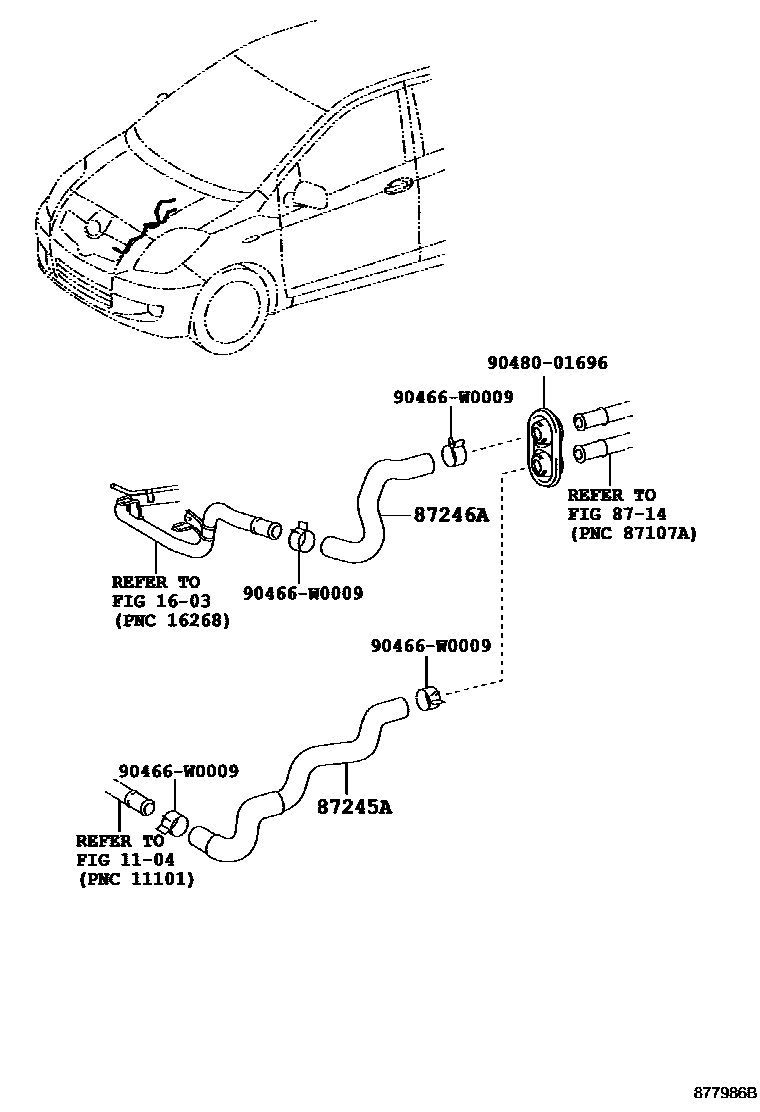

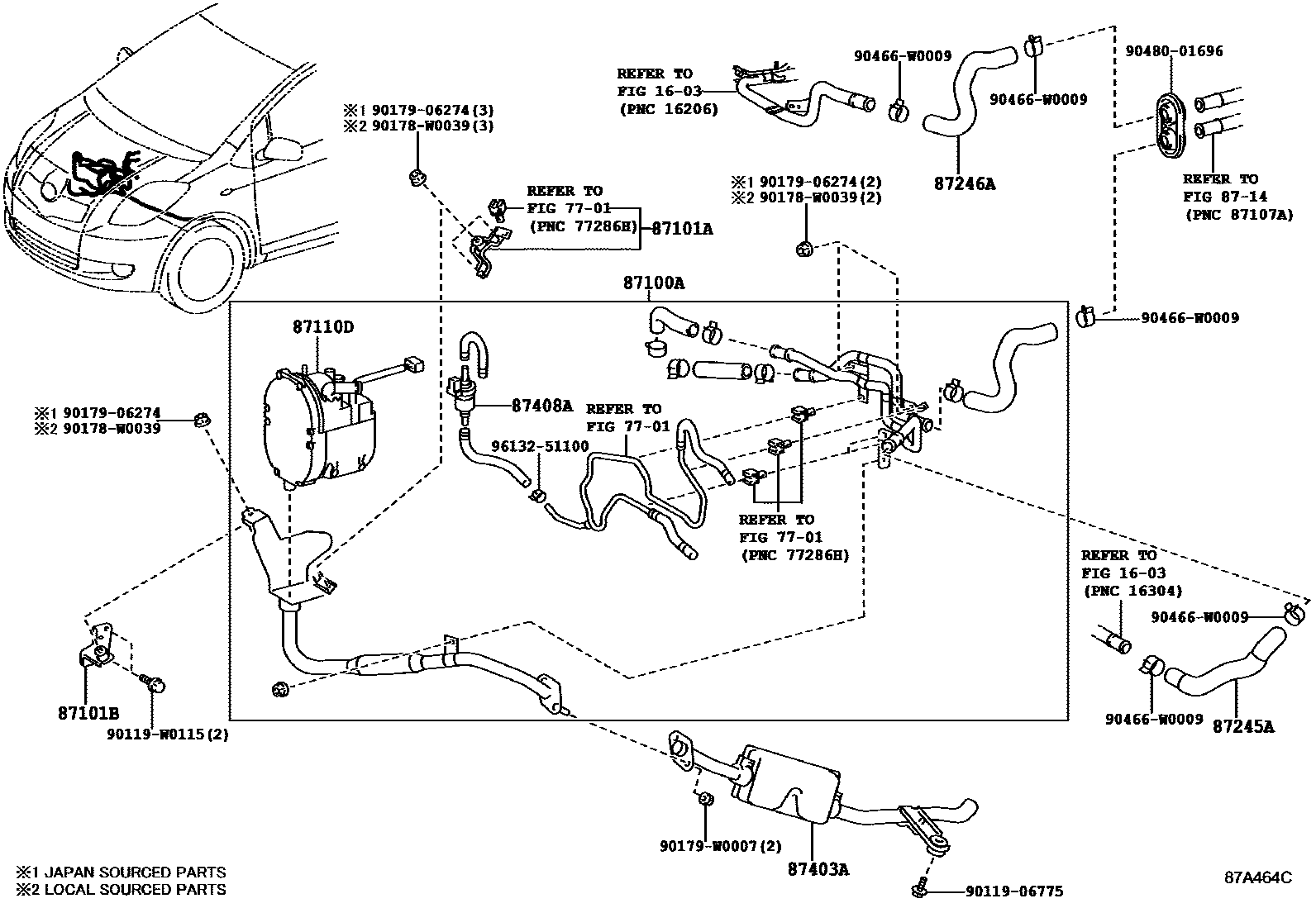

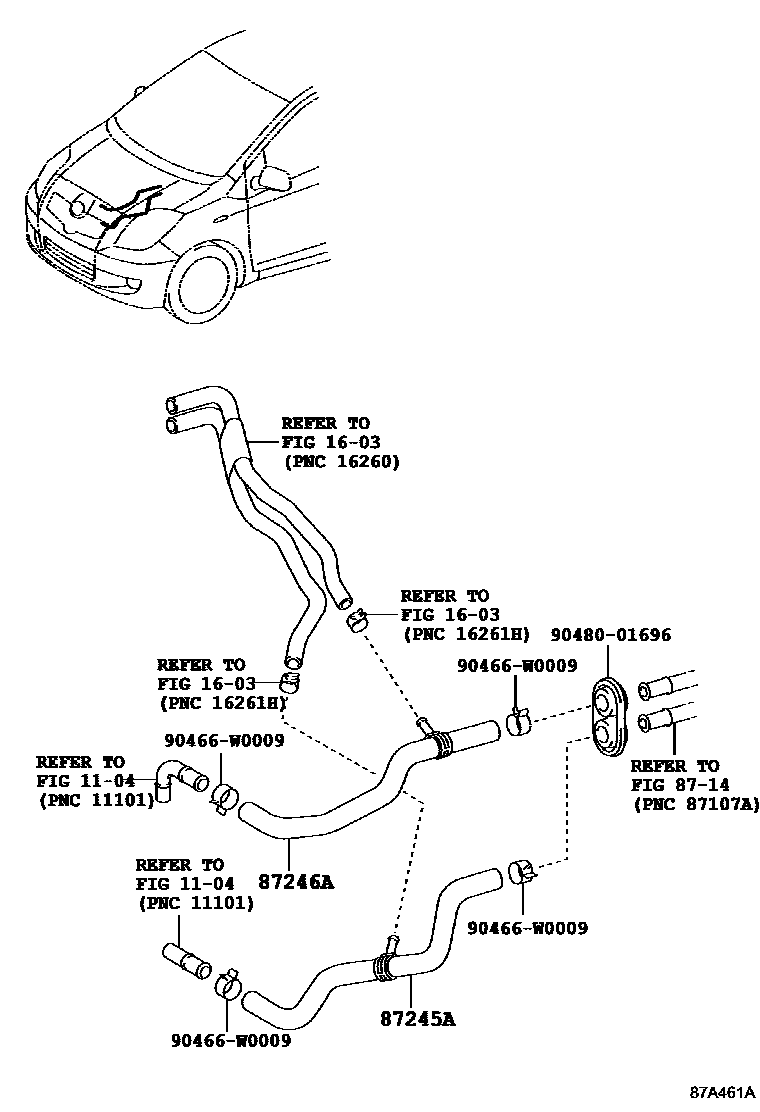

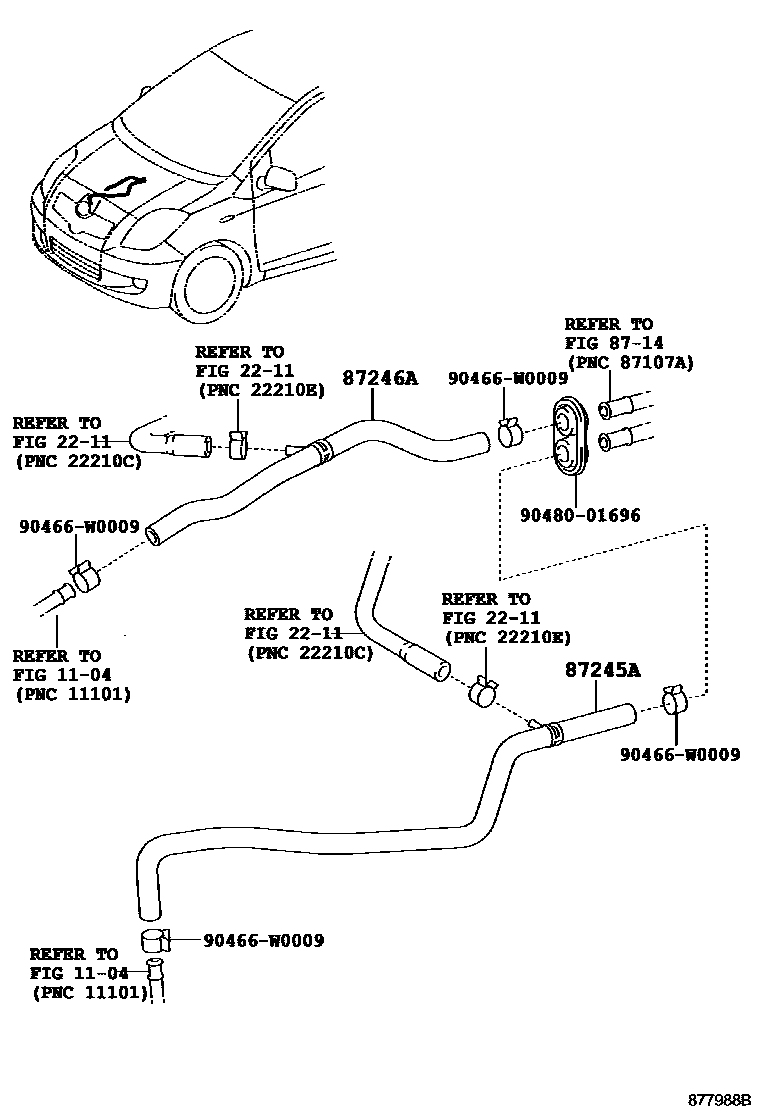

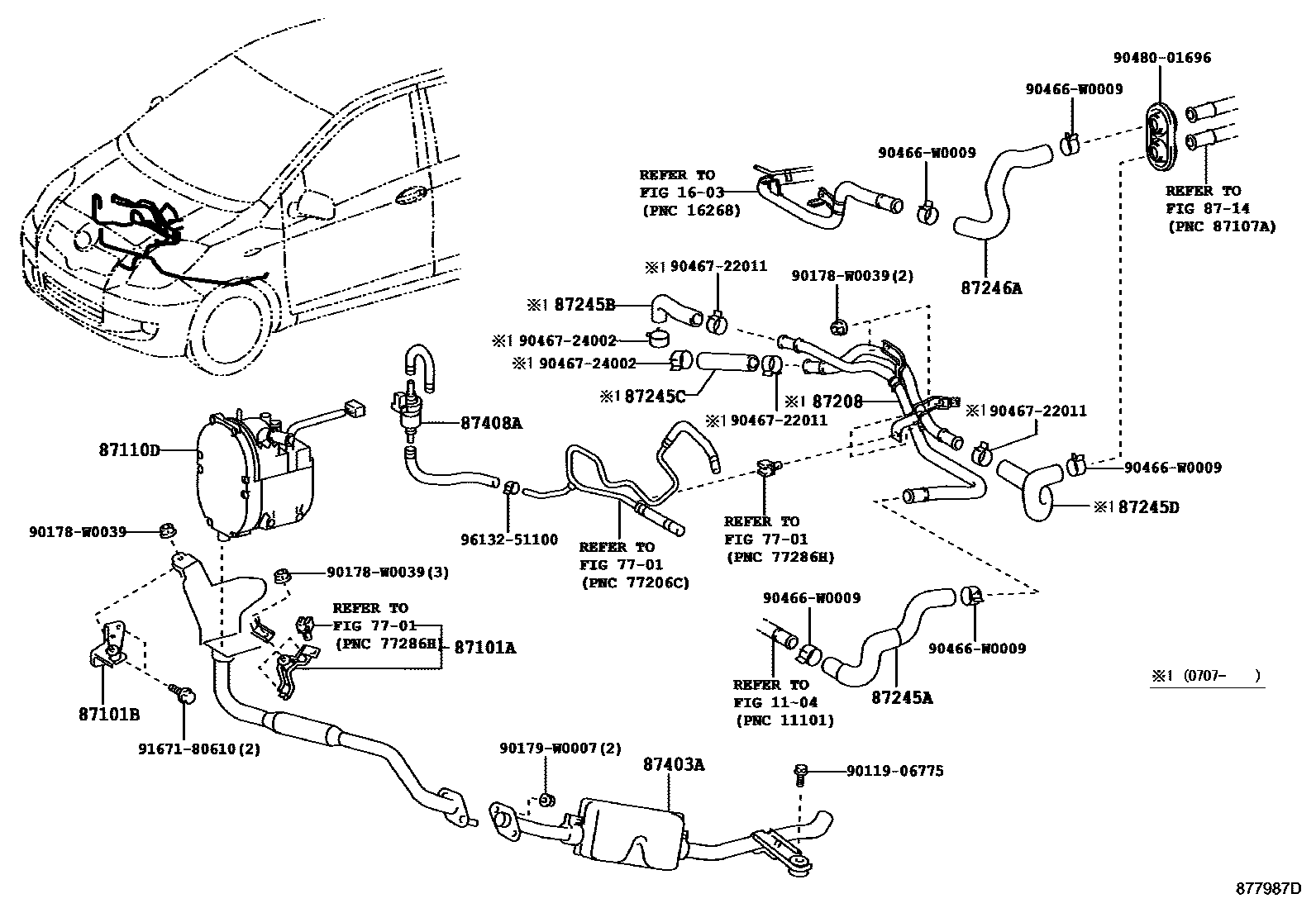

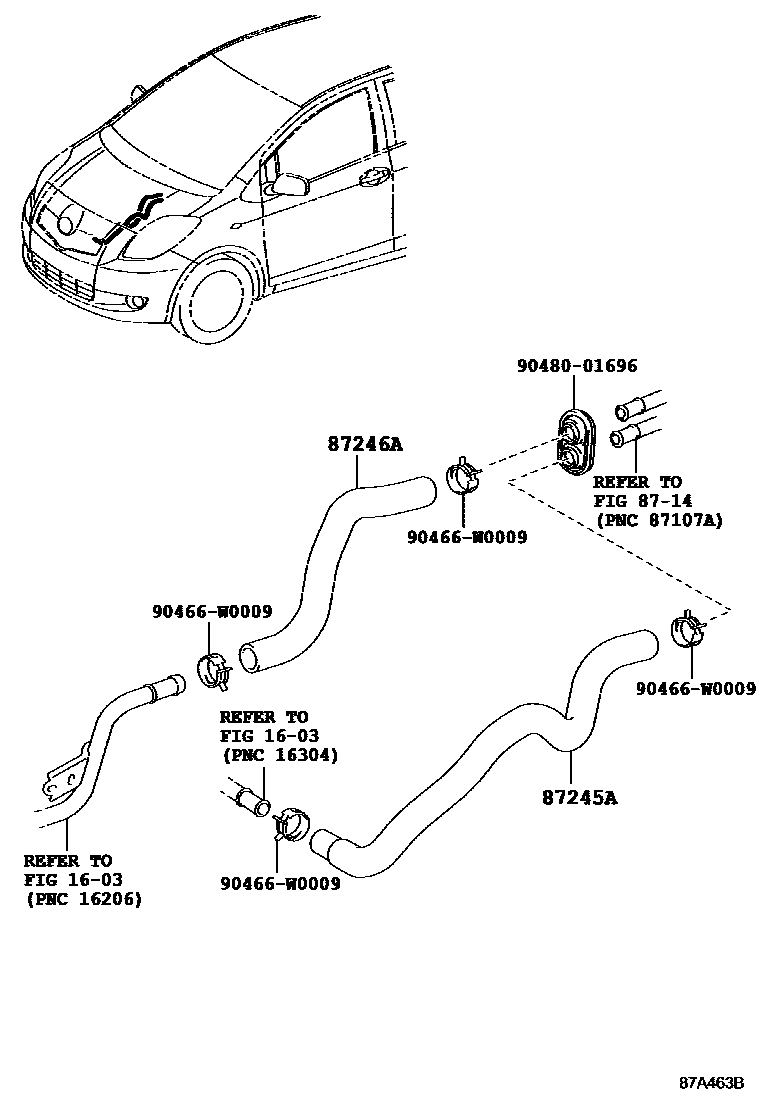

Toyota YARIS EPC diagram 8716, 暖风和空调系统 - 水管, with 9 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87100A | Heater and accessories assembly | 87100-0D030 |
| 87101A | No. 1 heater bracket sub-assembly | 87101-0D030 · 87101-0D050 |
| 87101B | No. 2 heater bracket sub-assembly | 87101-0D040 |
| 87110D | heater assembly | 87110-0D011 · 87110-0D012 · 87110-0D030 |
| 87208 | Heater water pipe sub-assembly | 87208-0D010 · 87208-0D020 |
| 87245A | Heater water inlet hose A | 87209-0D060 · 87209-0D081 · 87209-0D140 · 87209-0D141 · 87245-0D070 · 87245-0D090 · 87245-0D250 · 87245-0D270 |
| 87245B | Heater water inlet hose B | 87245-0D330 |
| 87245C | Heater water inlet hose C | 87245-0D340 |
| 87245D | Heater water inlet hose D | 87245-0D350 |
| 87246A | Heater outlet hose A | 87209-0D070 · 87209-0D090 · 87209-0D150 · 87209-0D160 · 87245-0D080 · 87245-0D260 · 87245-52190 |
| 87403A | Exhaust pipe sub-assembly | 87403-0D010 · 87403-0D020 |
| 87408A | Fuel pump sub-assembly | 87408-0D011 |
