Toyota YARIS antenna — Figure 8604

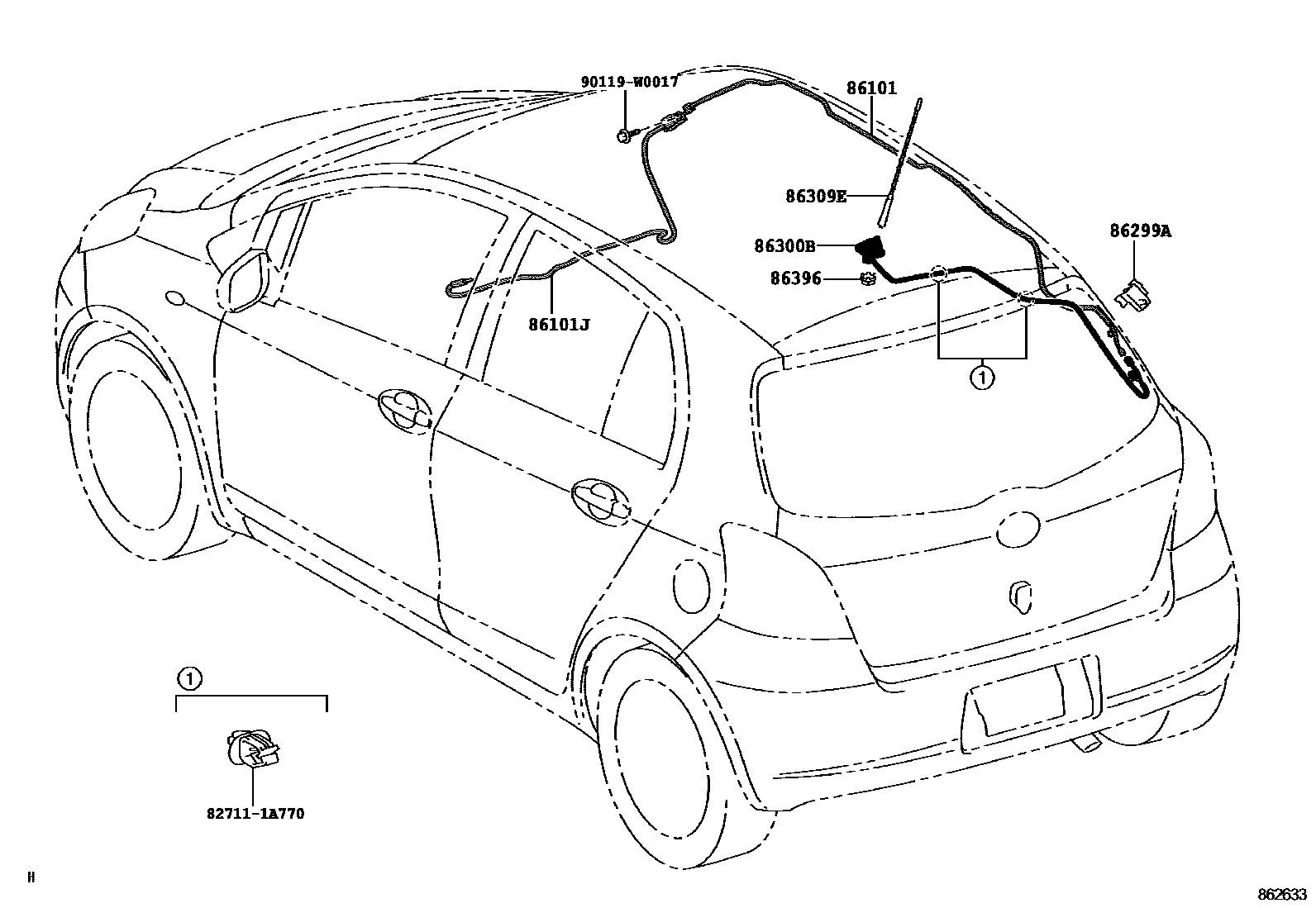

Toyota YARIS EPC diagram 8604, antenna, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-0D160 |
| 86101J | No. 2 antenna wire sub-assembly | 86101-0D170 · 86101-0D180 · 86101-0D330 · 86101-0D340 |
| 86299A | Clip (radio to antenna lead) | 86299-52010 |
| 86300B | Amplifier antenna assembly | 86300-0D100 |
| 86309E | Roof antenna sub-assembly | 86309-02040 |
| 86396 | Antenna nut | 86396-02020 |
