Toyota YARIS 挡风玻璃刮水器 — Figure 8501

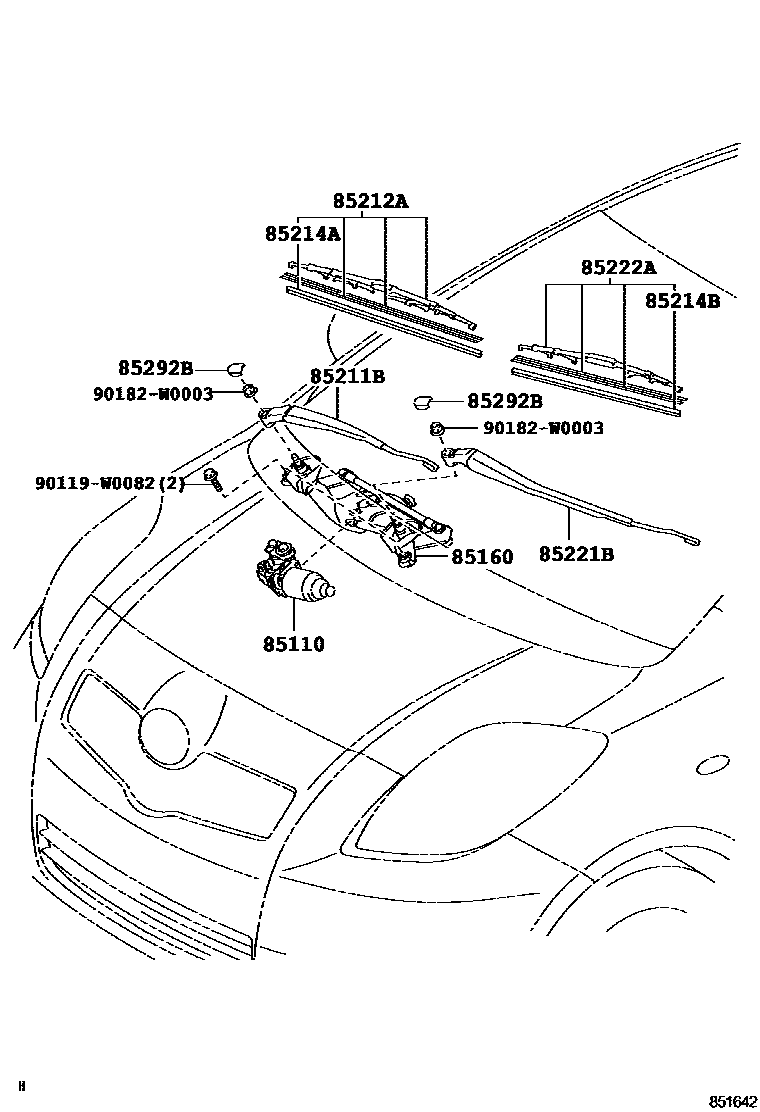

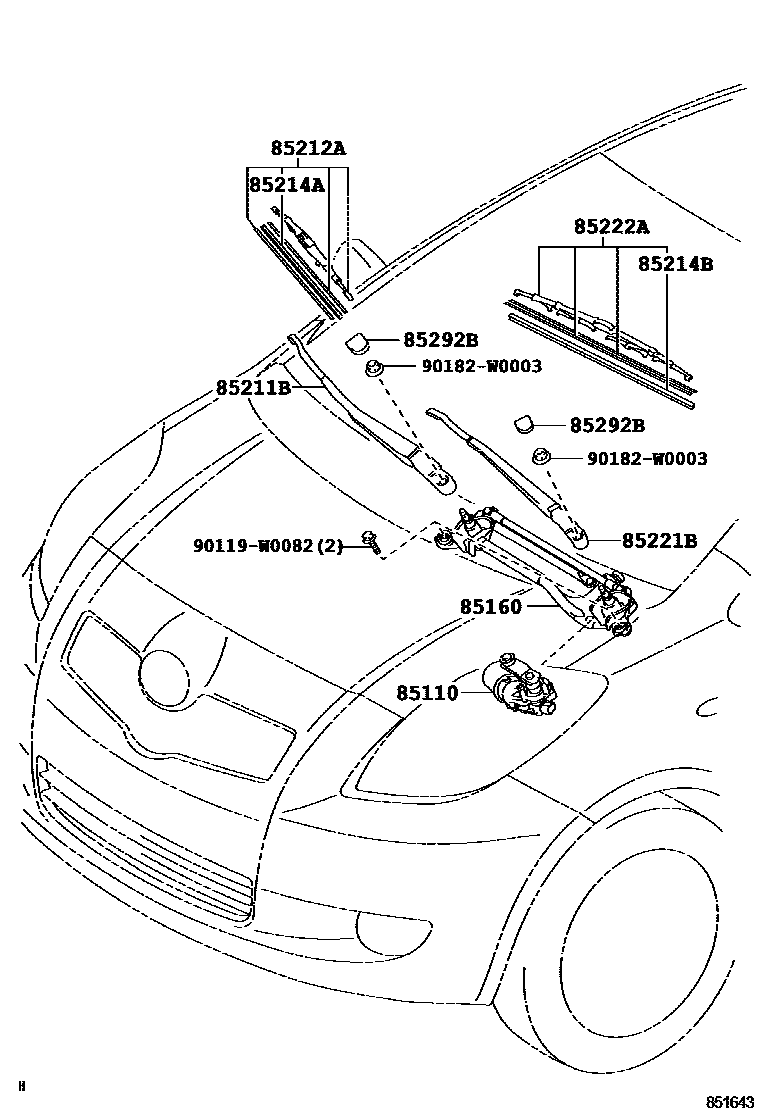

Toyota YARIS EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-0D070 · 85110-0D080 |
| 85160 | Windshield wiper connecting rod assembly | 85150-0D070 · 85150-0D080 |
| 85211B | Right front wiper arm | 85211-0D060 · 85211-0D070 |
| 85212A | Right front wiper blade | 85212-0D050 · 85212-0D060 · 85212-0D061 |
| 85214A | Right wiper rubber strip | 85214-05080 · 85214-0D090 · 85214-0D091 |
| 85214B | Left wiper rubber strip | 85214-05080 · 85214-0D090 · 85214-0D091 |
| 85221B | Left front wiper arm | 85221-0D060 · 85221-0D070 |
| 85222A | Left front wiper blade | 85222-0D050 · 85222-0D051 · 85222-0D060 |
| 85292B | Front wiper arm cap | 85292-0F010 |
