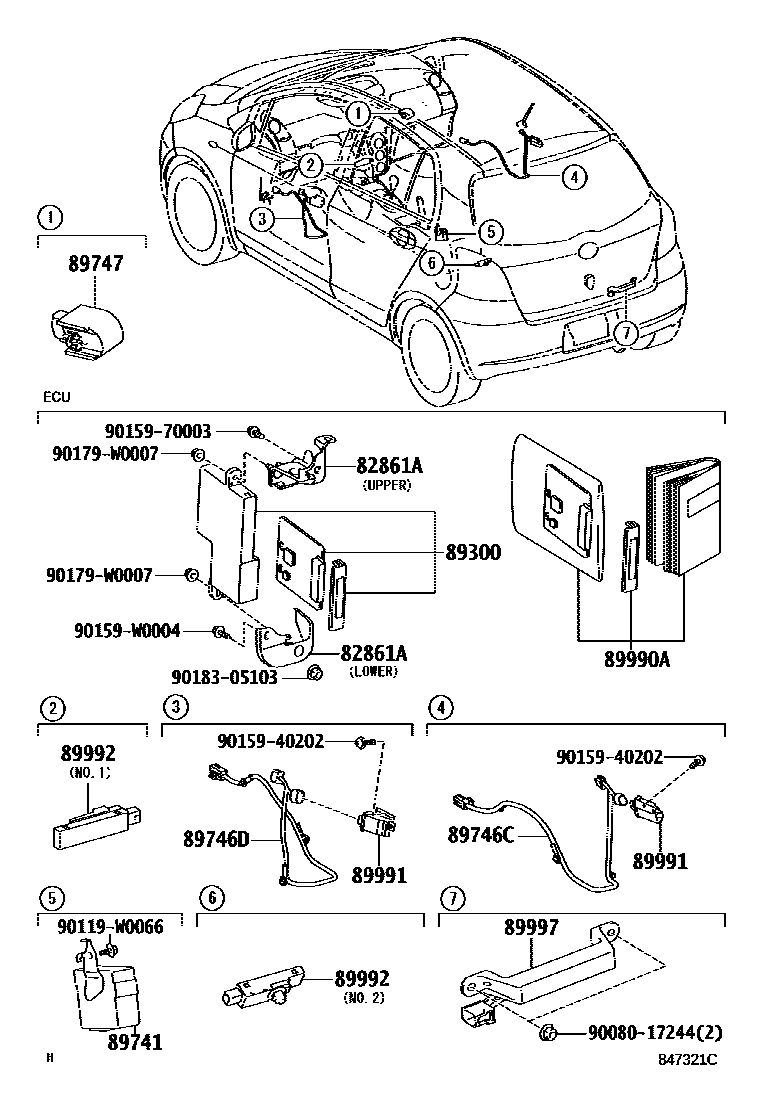

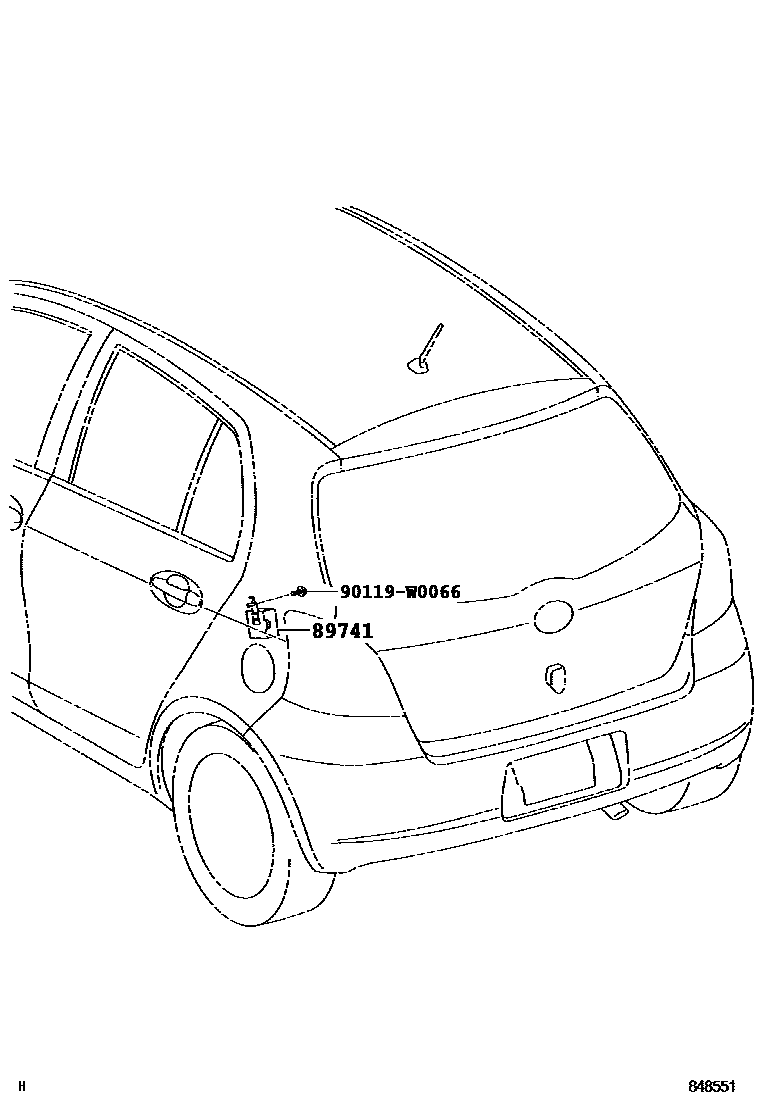

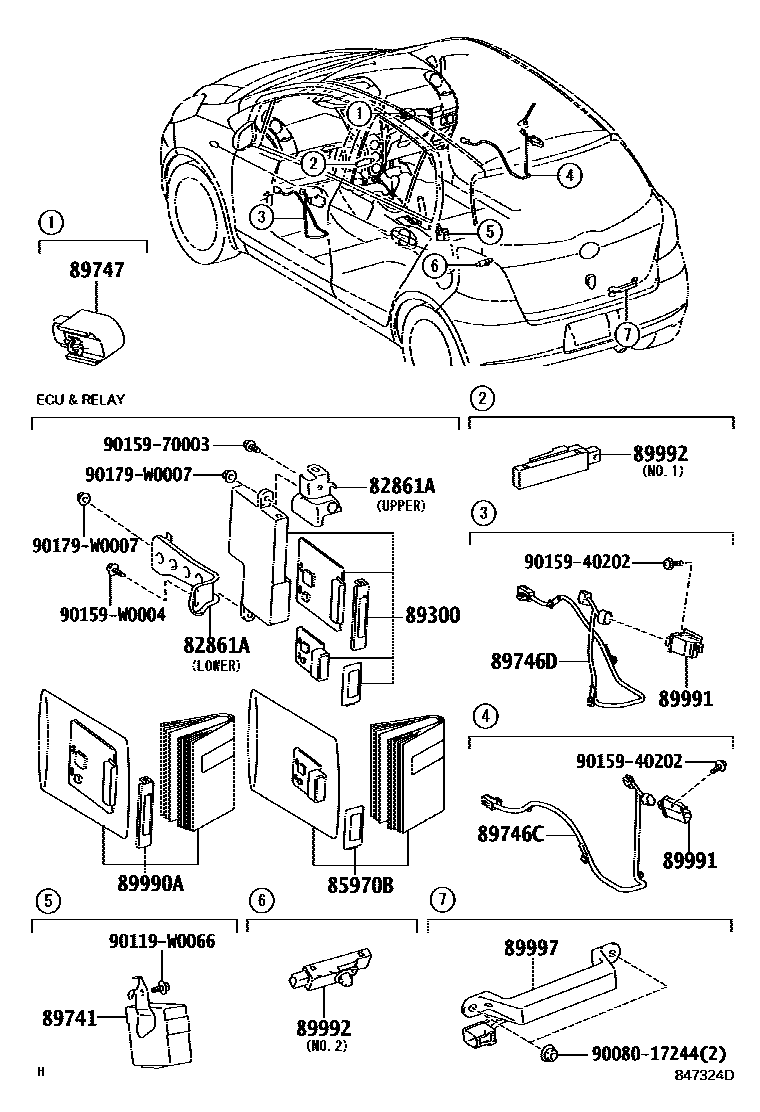

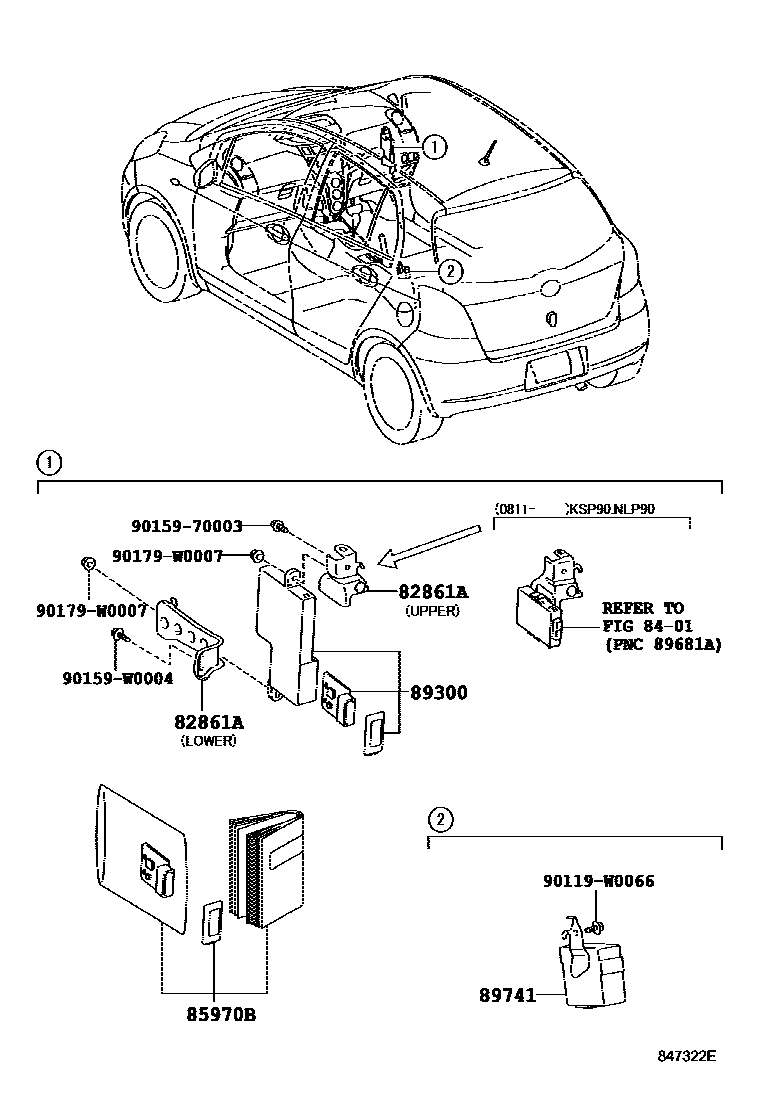

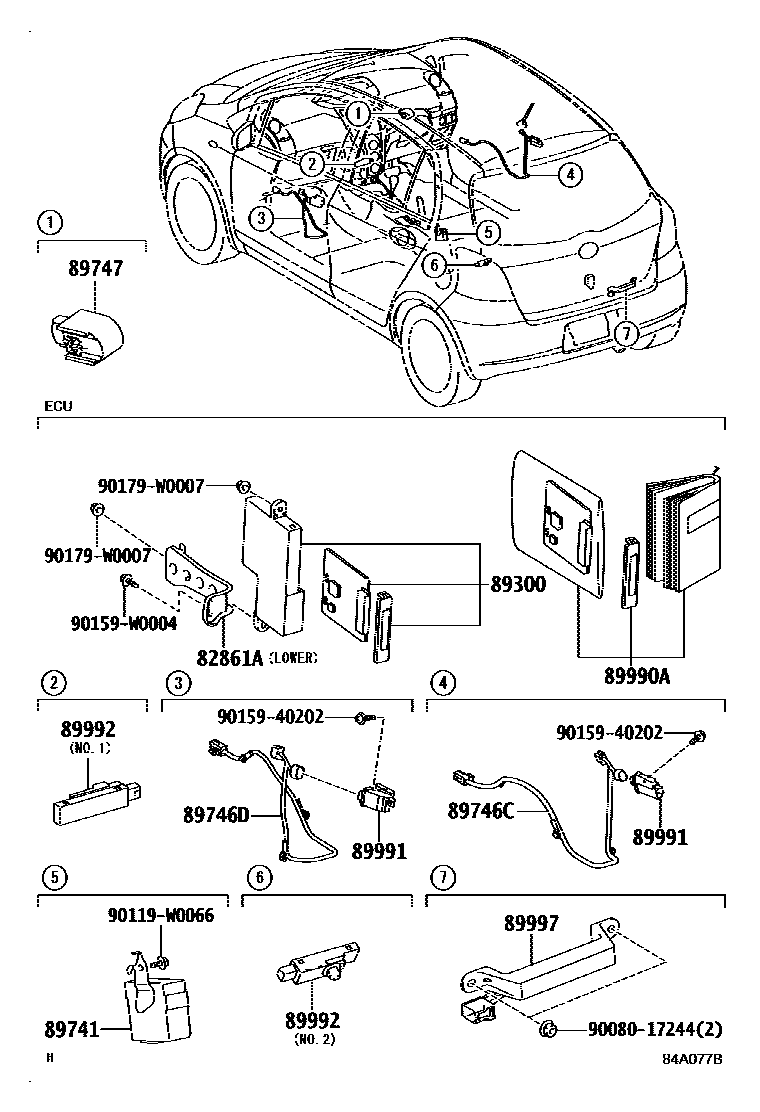

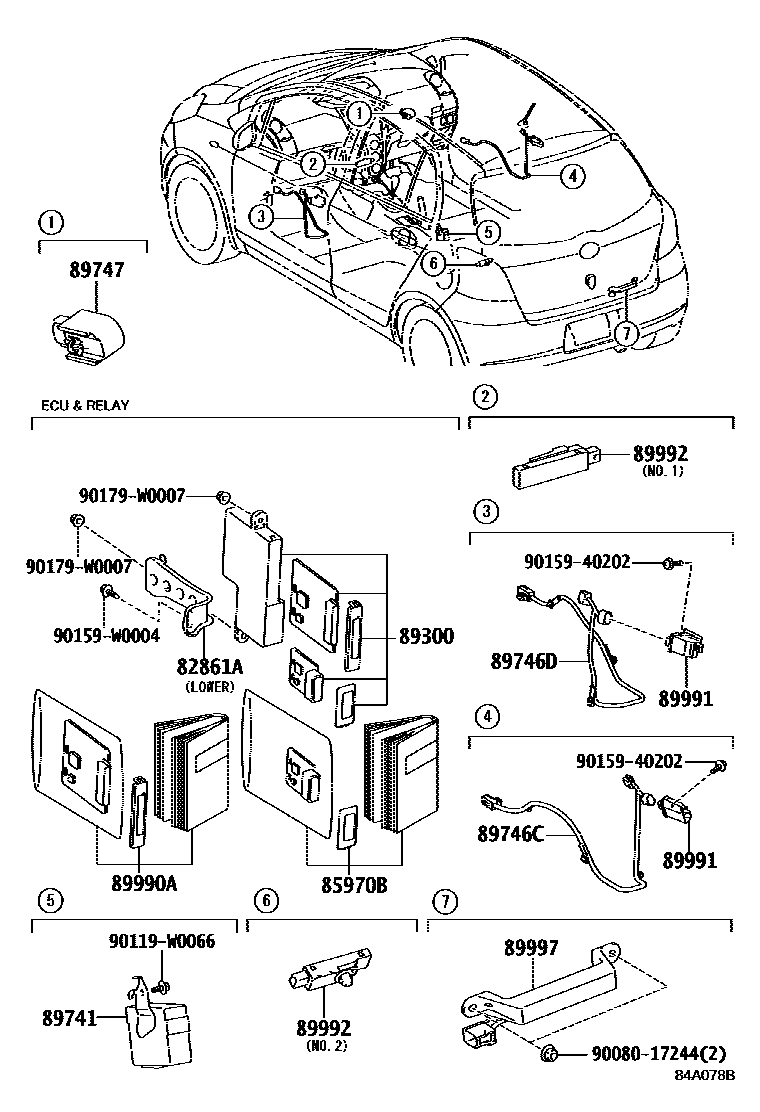

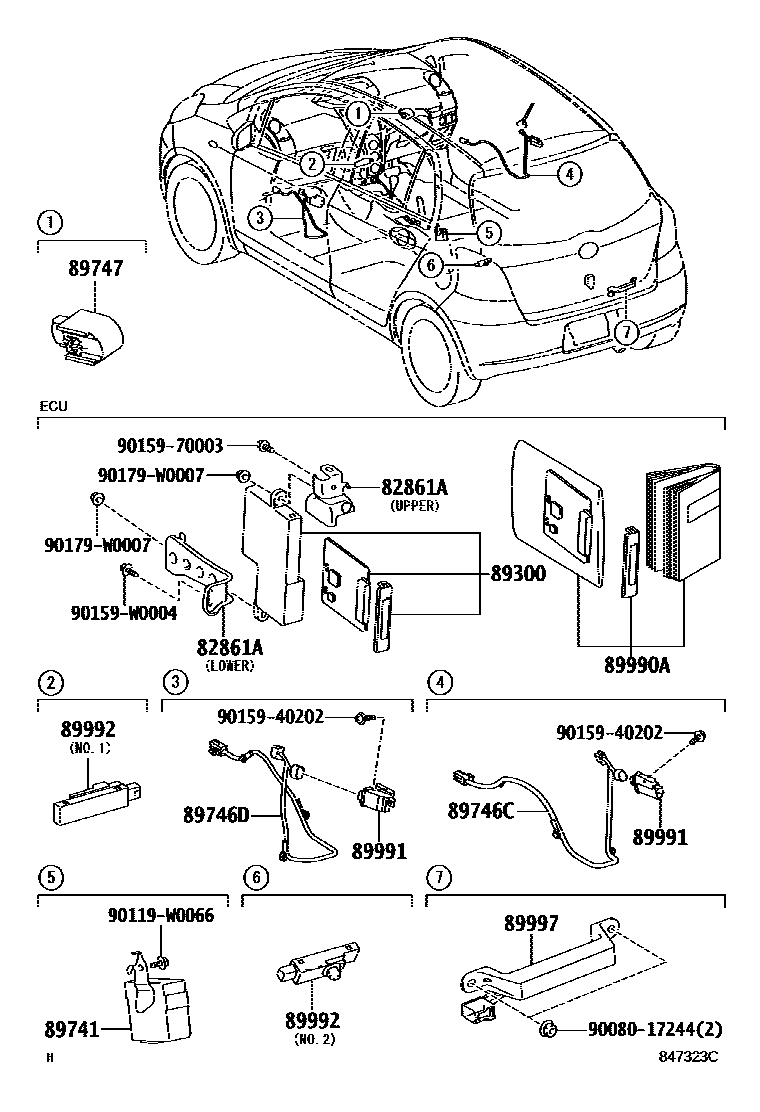

Toyota YARIS 遥控门锁 — Figure 8420
Toyota YARIS EPC diagram 8420, 遥控门锁, with 7 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82861A | No. 1 ECU integrated bracket | 82861-0D010 · 82861-0D020 · 82861-0D030 · 82861-0D040 |
| 85970B | Double lock door control relay assembly | 85970-52020 |
| 89300 | ECU integrated box assembly | 89300-52011 · 89300-52012 · 89300-52013 · 89300-52014 · 89300-52021 · 89300-52030 · 89300-52051 · 89300-52052 · 89300-52053 |
| 89741 | door control receiver | 89740-0D010 · 89740-0D011 · 89741-0D030 · 89741-0D031 · 89741-0D040 · 89741-0D041 |
| 89746C | No. 1 electronic key wiring harness | 89746-52030 · 89746-52050 |
| 89746D | No. 2 electronic key wiring harness | 89746-52040 · 89746-52060 |
| 89747 | Remote door lock buzzer | 89747-0D010 |
| 89990A | Smart key ECU assembly | 89990-52081 · 89990-52111 · 89990-52112 |
| 89991 | Door electronic key oscillator | 89991-30040 · 89991-30050 |
| 89992 | Car electronic key oscillator | 89992-0D010 · 89992-0D020 |
| 89997 | electronic key antenna | 89997-52010 |
