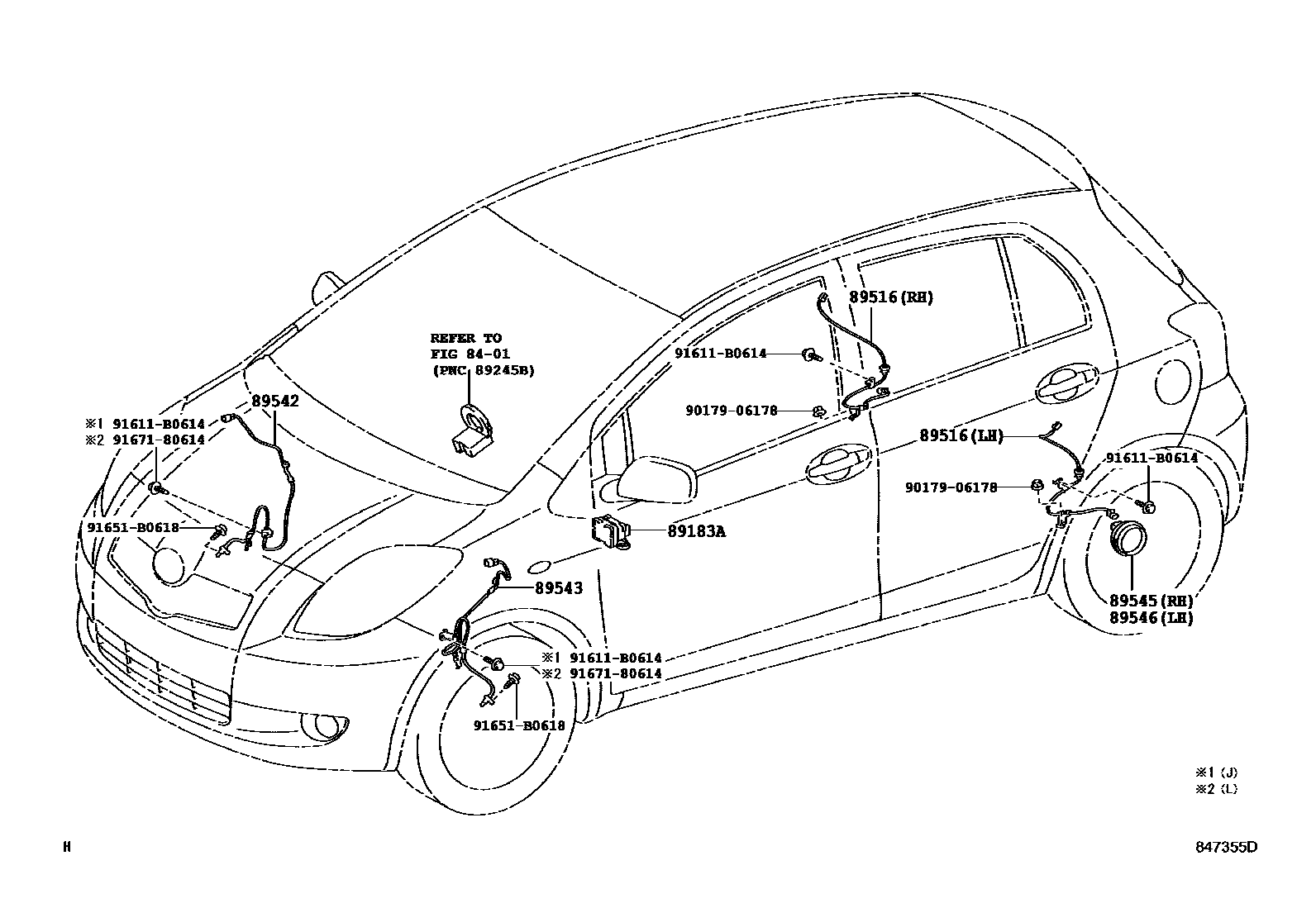

Toyota YARIS ABS 和 VSC — Figure 8414
Toyota YARIS EPC diagram 8414, ABS 和 VSC, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89183A | Yaw rate sensor | 89183-0D010 |
| 89516 | Anti-skid control sensor wiring harness | 89516-0D070 · 89516-0D080 |
| 89542 | Right front wheel speed sensor | 89542-0D020 |
| 89543 | Left front wheel speed sensor | 89543-0D020 |
| 89545 | Right rear wheel speed sensor | 89544-0D030 |
| 89546 | Left rear wheel speed sensor | 89544-0D030 |
