Toyota YARIS 蓄电池和蓄电池电缆 — Figure 8201

Toyota YARIS EPC diagram 8201, 蓄电池和蓄电池电缆, with 2 images and 4 PNC and OE references.

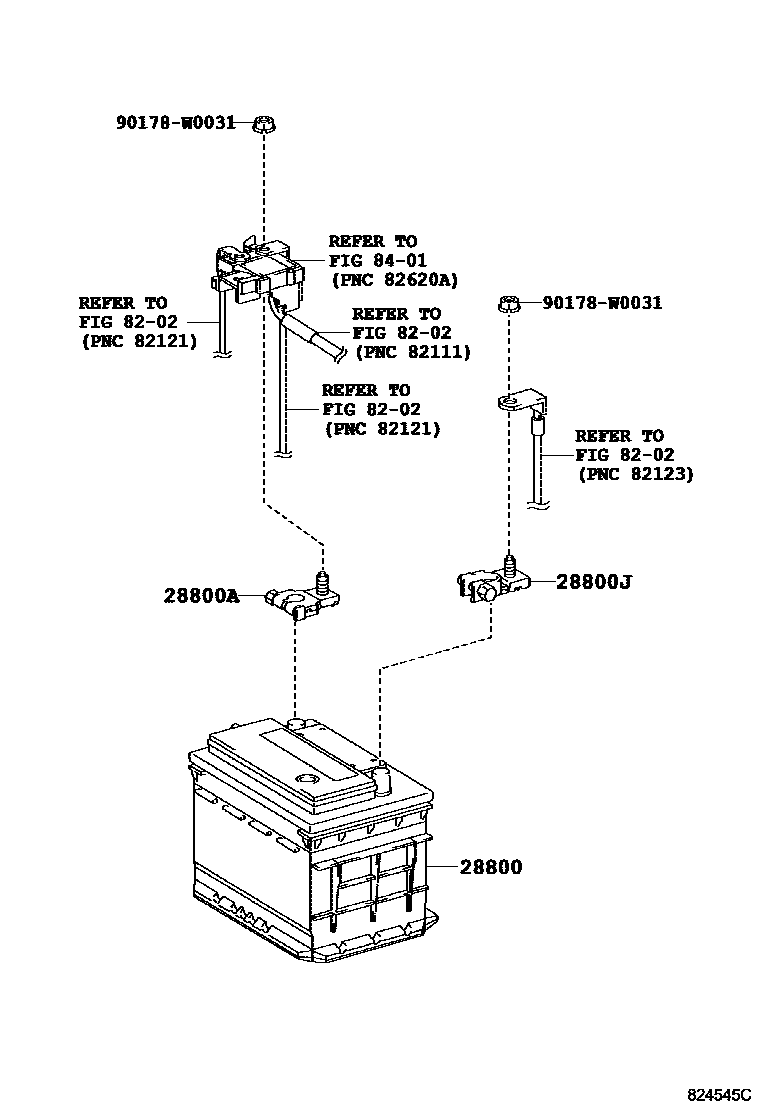

Toyota YARIS 蓄电池和蓄电池电缆 EPC diagram — 824545C
蓄电池和蓄电池电缆 — 824545C (200511 – 200811)

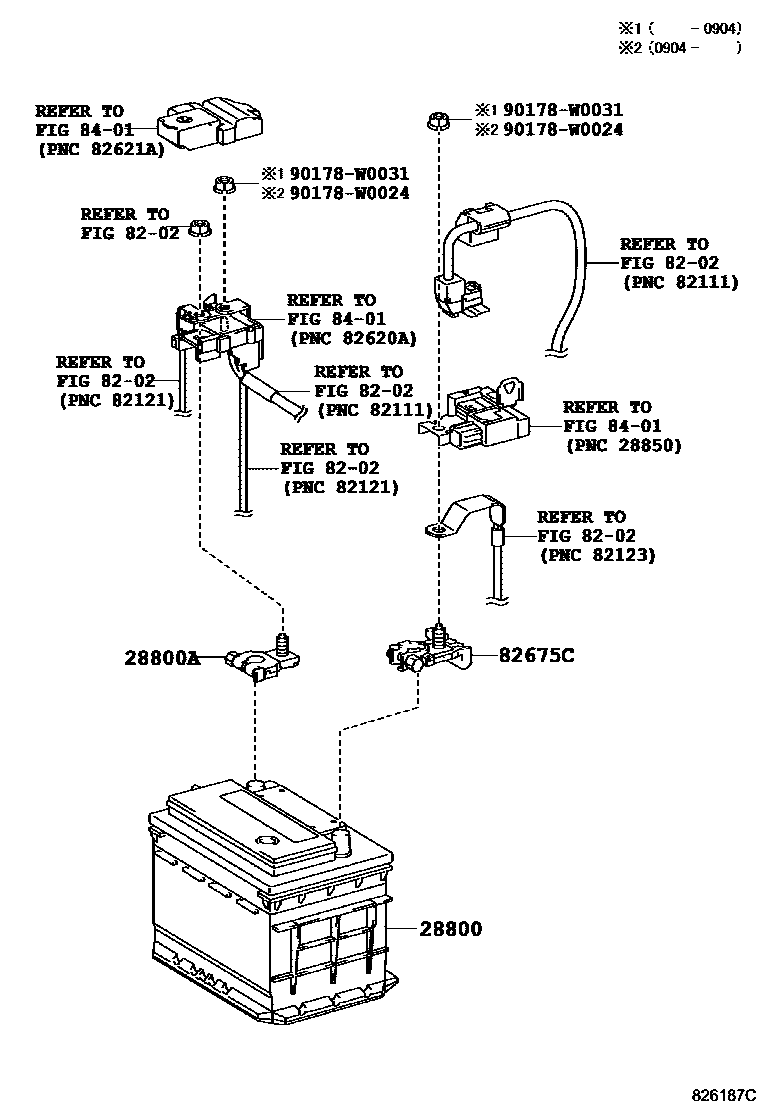

Toyota YARIS 蓄电池和蓄电池电缆 EPC diagram — 826187C
蓄电池和蓄电池电缆 — 826187C (200811 – 999999)

PNC and OE references

PNCPart nameOE numbers
28800battery28800-0J030 · 28800-0N030 · 28800-0N040 · 28800-0Y010
28800Abattery positive terminal90982-05054
28800Jbattery negative terminal90982-06059
82675CTerminal block82675-52090
