Toyota YARIS 挡泥板和扰流板 — Figure 7601

Toyota YARIS EPC diagram 7601, 挡泥板和扰流板, with 2 images and 13 PNC and OE references.

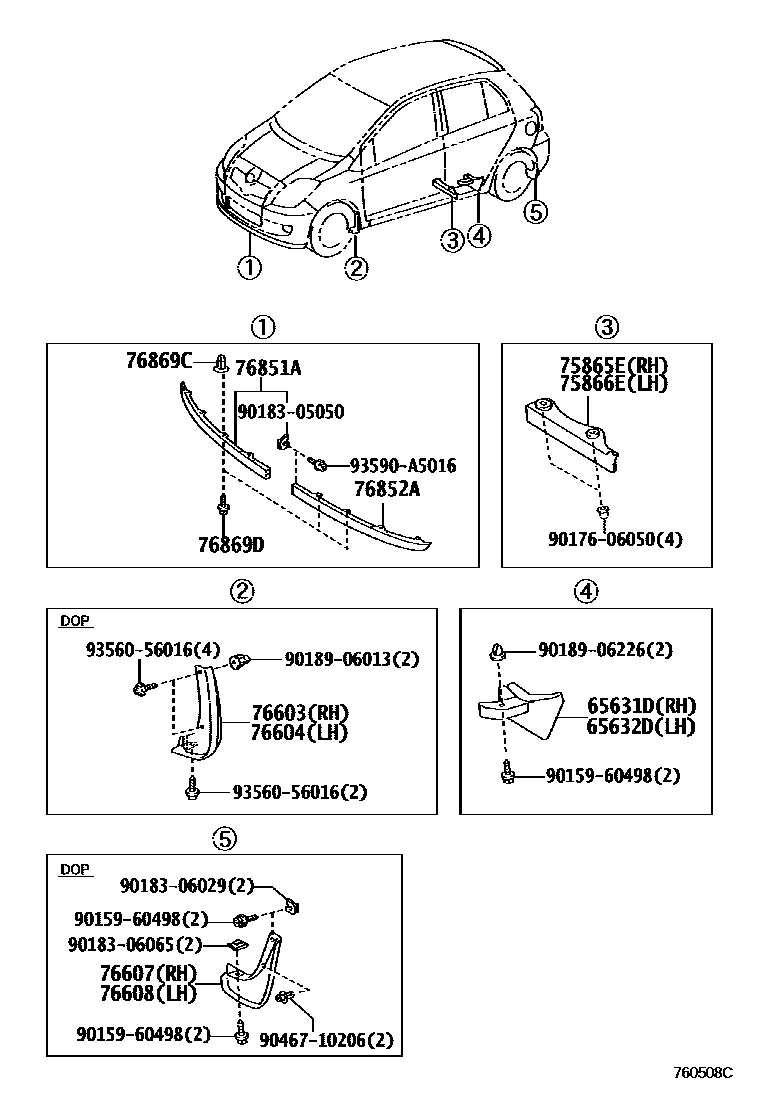

Toyota YARIS 挡泥板和扰流板 EPC diagram — 760508C
挡泥板和扰流板 — 760508C (200511 – 200811)

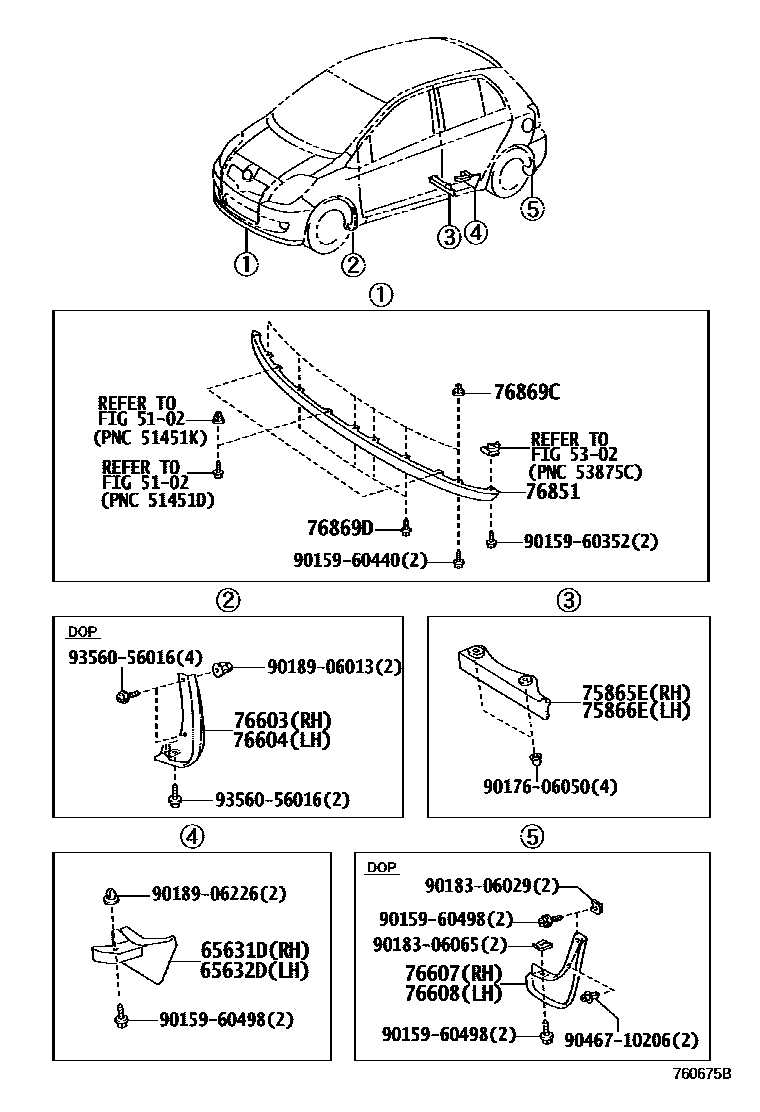

Toyota YARIS 挡泥板和扰流板 EPC diagram — 760675B
挡泥板和扰流板 — 760675B (200811 – 999999)

PNC and OE references

PNCPart nameOE numbers
65631DRight rear wheel house front panel65631-52050 · 65631-52100
65632DLeft rear wheel house front panel65632-52050 · 65632-52100
75865ERight side door sill panel protective strip protective cover75865-0D020
75866ELeft side door sill panel protective strip protective cover75866-0D020
76603Right front fender fender sub-assembly76621-52060
76604Left front fender fender sub-assembly76622-52060
76607Right rear side fender sub-assembly76625-52090 · 76625-52160
76608Left rear side fender sub-assembly76626-52090 · 76626-52160
76851front spoiler cover76851-0D080
76851ARight front spoiler cover76851-0D030
76852ALeft front spoiler cover76852-0D020
76869CRONDELLE, VIS, NO.190189-06076
76869DVIS, NO.290159-60383
