Toyota YARIS 丰田徽标和铭牌(车外和车内) — Figure 7501

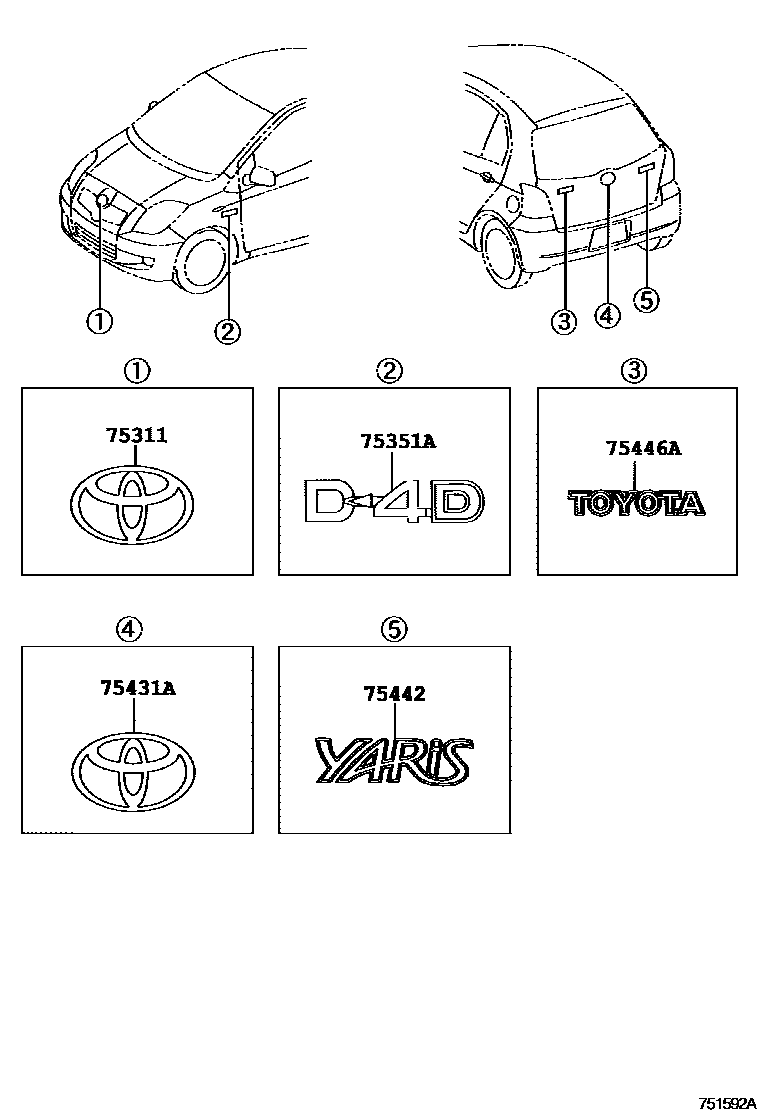

Toyota YARIS EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-0D030 · 75311-52280 · 75311-52300 |
| 75351A | Front fender label | 75351-0D050 |
| 75431A | No. 1 sign on back door | 75431-0D050 · 90975-02128 |
| 75442 | Trunk door number plate No. 2 | 75442-0D050 · 75442-52300 |
| 75446A | No. 6 nameplate on back door | 75446-0D030 · 75446-52070 |
